Eaton 9PX 1000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included) 9PX1000IRT2UANZ
SKU
254571
Brand
MPN
9PX1000IRT2UANZ
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $2,484.00 Regular Price $2,857.00
Buy Now And Earn 2484 Reward Points!

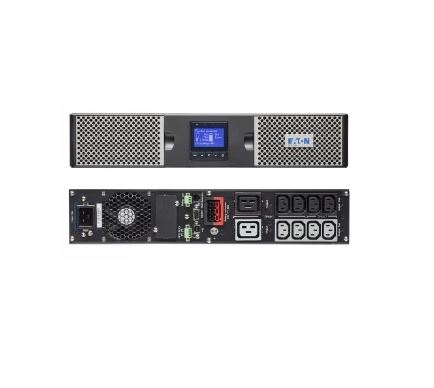

Eaton 9PX 1000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included)
| MPN | 9PX1000IRT2UANZ |
|---|---|
| SKU | 9PX1000IRT2UANZ |
| Brand | Eaton |
| Model | 9PX1000IRT2UANZ |
| Weight | 17.4 kg |
| Outputs | 8 x IEC C13 (10A) (primary reported configuration) |
| Altitude | <1000 m for nominal power; ~10% power degradation every additional 1000 m up to 3000 m (reported) |
| Category | Power and Rack Equipment |
| Topology | Online / Double-conversion |
| Warranty | 3 years limited warranty (electronics) / 2 years on battery (reported) |
| Capacity_W | 1000 W |
| Efficiency | 91.5% (reported) |
| Rack Units | 2U |
| Capacity_VA | 1000 VA |
| Description | Eaton 9PX 1000VA / 1000W online double-conversion UPS in a 2U rack/tower form factor (19"), designed for IT, edge and enterprise applications. Provides unity power factor (VA=W), energy-efficient operation and scalable runtime with hot-swappable sealed lead-acid batteries and support for external battery modules (EBMs). ANZ-configured model with IEC C14 input and IEC C13 output receptacles, multilingual graphical LCD, USB/RS232 and dry-contact/mini-terminal block communications, rail mounting kit and Eaton power management software compatibility. |
| Form Factor | Rack/Tower |
| Noise level | <35 dB at 1 meter |
| Battery type | Sealed lead-acid (VRLA) |
| Sub-Category | Power Equipment |
| Product Title | Eaton 9PX 1000VA / 1000W 2U Rack/Tower UPS - 9PX1000IRT2UANZ |
| Battery rating | 12 V / 7 Ah (reported) |
| Communications | USB (HID) Serial (RS232) Mini-terminal blocks: remote ON/OFF, remote power off, output relay Dry contacts (3 outputs, 1 input; optocoupler, DB9) One slot for optional communication/network card |
| Hot swap power | No (UPS hot-swappable batteries supported; hot-swap of power modules not indicated) |
| User interface | Multilingual graphical LCD display |
| Expansion slots | One slot for optional communication/network card |
| Input connector | IEC-320-C14 (10A) |
| Internal bypass | Yes |
| Output Waveform | Sine wave |
| Battery quantity | 4 (reported) |
| Output frequency | 50/60 Hz (autoselection) |
| Relative humidity | 0-96% non-condensing |
| Input power factor | >0.99 (reported) |
| Battery replacement | Hot-swappable internal batteries; supports extended battery modules (EBMs) |
| Input voltage range | 176-276 V without derating (up to 100-276 V with derating) |
| Management Software | Eaton Intelligent Power Manager Eaton Intelligent Power Protector |
| Output Power Factor | 1.0 (unity) |
| Included accessories | Rail-mounting kit / rail kit (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19" mounting (2) supports for tower mounting Cable locking system Safety instructions / Quickstart guide / User guide |
| Input frequency range | 40-70 Hz |
| Input nominal voltage | 240 V (ANZ) |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Auto shutdown function | Yes |
| Dimensions (H x W x D) | 86.5 x 482.6 x 440-450 mm (2U, 19" device) — common reported values: 86.5 mm H x 440 mm D x 450 mm W |
| Output nominal voltage | 240 V (ANZ); configurable: 200/208/220/230/240 V (reported) |
| Safety & Special Features | Internal bypass for service continuity ABM battery management technology (extends battery life; reported) Unity power factor (VA=W) Energy metering down to managed outlet groups Compatible with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) |
| Certifications & Compliance | IEC/EN 62040-1 IEC/EN 62040-2 EN 62040-3 IEC 61000-4 (reported) CE RCM TUV UL 1778 / cULus Listed CSA 22.2 FCC Part 15 Class B CISPR22 Class B EAC ENERGY STAR certified (reported) |
| Extended battery capability | Yes |
| Package contents (reported) | Eaton 9PX 1000VA UPS (9PX1000IRT2UANZ) (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19" mounting (2) rack-mounting kit items (2) supports for tower mounting Cable locking system Safety instructions, Quickstart guide, User Guide |
| Alternate Output Configurations | 6 x IEC C13 + 2 x Australian 10A (reported by some listings) |
Eaton 9PX 1000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included)
