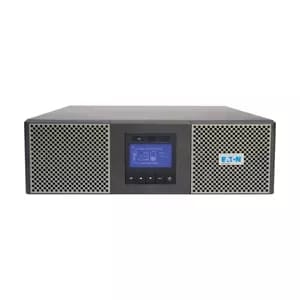

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included) INCLUDES AUSTRALIAN CABLES 9PX3000IRT3UANZ



Topology
On-line double conversion with Power Factor Correction (PFC) system
Configuration
Rack/Tower
Part Number
9PX3000IRT3U
Rating (VA/Watts)
3000/3000
Dimensions (H x W x D, mm)
130 x 440 x 485
Weight (kg)
27.4
Warranty
3 years electronics, 3 years battery

Electrical Input
Connection
(1) IEC-320-C20
IEC C20
Input Voltage Range
176-276V without derating (up to 100-276V with derating)
Nominal Voltage
200/208/220/230/240V
Frequency
50/60 Hz autoselection
Frequency Range
40-70 Hz

Electrical Output
Nominal Voltage
200/208/220/230/240V
Output Receptacles
(8) IEC-320-C13
IEC C13
(2) IEC-320-C19
IEC C19
Efficiency (Normal Mode)
Up to 94% in online mode (Up to 98% in Hi-efficiency mode)
Output Frequency
50/60 Hz autoselect, frequency converter mode

Battery
Runtime
(Minutes)
500
1000
1500
2000
2500
3000
0
200
400
600
800
1000
1200
1400
1600
1800


Standard Runtime

With 1 EBM

With 2 EBM

With 3 EBM

With 4 EBM
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Show:
Standard Runtime
With 1 EBM
With 2 EBM
With 3 EBM
With 4 EBM
Hover over graph for detailed runtime values

Battery Management
ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Extended Battery Capability
EBM (3U)

Communications
User Interface
Multilingual graphical LCD display
Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot
1 slot for Network-MS card, ModBus-MS or Relay-MS cards

Environmental & Standards
Audible Noise
40dB
Operating Temperature
0 to 40°C
Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals
CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
