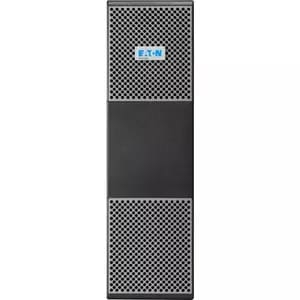

Eaton 9px Ebm 1kva/1.5kva 72v 2u Rack/tower 9pxebm48rt2u
SKU
237864
Brand
MPN
9PXEBM48RT2U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,276.00
Buy Now And Earn 1276 Reward Points!
Eaton 9PX UPS (1000-3000W) - Features
- 9PX is the first UPS in its class to provide Unity power factor (VA=W).
- Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs.
- Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen
- 9PX can meter energy consumption right down to the managed outlet groups.
- 9PX 2200 & 3000 are available in RT2U format (optimised for rack mounting) or RT3U (for tower or short-depth racks), pedestal and rail kits are included with all models.
- The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as standard on HotSwap version) for easy replacement of the UPS.
Eaton 9PX UPS (1000-3000W) - Technical Specifications
Product Snapshot | |
---|---|
Power Rating | 1000-3000W |
Voltage | 200-240 V |
Frequency | 50/60 Hz |
Topology | Double conversion |
Configuration | Rack/Tower |
UPS Models | |||
---|---|---|---|
Part Number | Power Rating | Input Plug | Outlets |
(VA/Watts) | |||
Eaton 9PX UPS RT2U | |||
9PX1000IRT2U | 1000 / 1000 | C14 | (8) C13 |
9PX1500IRT2U | 1500 / 1500 | C14 | (8) C13 |
9PX2200IRT2U | 2200 / 2200 | C20 | (8) C13, (2) C19 |
9PX3000IRT2U | 3000 / 3000 | C20 | (8) C13, (2) C19 |
Eaton 9PX UPS RT3U | |||
9PX2200IRT3U | 2200 / 2200 | C20 | (8) C13, (2) C19 |
9PX3000IRT3U | 3000 / 3000 | C20 | (8) C13, (2) C19 |
Eaton 9PX UPS RT2U with Network card | |||
9PX1000IRTN | 1000 / 1000 | C14 | (8) C13 |
9PX1500IRTN | 1500 / 1500 | C14 | (8) C13 |
9PX2200IRTN | 2200 / 2200 | C20 | (8) C13, (2) C19 |
9PX3000IRTN | 3000 / 3000 | C20 | (8) C13, (2) C19 |
Eaton 9PX UPS RT3U with HotSwap MBP | |||
9PX2200IRTBP | 2200 / 2200 | C20 | (6) C13 |
9PX2200IRTBPH | 2200 / 2200 | Hardwired | Hardwired |
9PX2200IRTBPF | 2200 / 2200 | C20 | (4) French |
9PX2200IRTBPD | 2200 / 2200 | C20 | (4) DIN |
9PX2200IRTBPB | 2200 / 2200 | C20 | (3) BS |
9PX3000IRTBP | 3000 / 3000 | C20 | (6) C13 |
9PX3000IRTBPH | 3000 / 3000 | Hardwired | Hardwired |
9PX3000IRTBPF | 3000 / 3000 | C20 | (4) French |
9PX3000IRTBPD | 3000 / 3000 | C20 | (4) DIN |
9PX3000IRTBPB | 3000 / 3000 | C20 | (3) BS |
