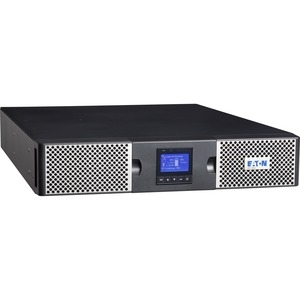

Eaton 9PX3000IRT2UANZ 9PX 3000VA Rack/Tower, Anz 16A I/P 9PX3000IRT2UANZ
SKU
254573
Brand
MPN
9PX3000IRT2UANZ
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $5,670.00 Regular Price $6,520.00
Buy Now And Earn 5670 Reward Points!
Eaton 9PX3000IRT2UANZ 9PX 3000VA Rack/Tower, ANZ 16A I/P
| MPN | 9PX3000IRT2UANZ |
|---|---|
| SKU | 9PX3000IRT2UANZ |
| GTIN | 743172081384 |
| Brand | Eaton |
| Model | 9PX3000IRT2UANZ |
| Ports | USB RS-232 serial Remote ON/OFF Remote power OFF Relay output |
| Battery | type: Internal sealed battery (hot-swappable) features: [ "ABM battery management technology (extends battery life)", "Scalable runtime via External Battery Modules (EBM)", "Hot-swappable battery replacement panel" ] |
| Category | Power and Rack Equipment > Power Equipment |
| Features | Unity power factor (VA = W) Double-conversion topology for constant power conditioning Graphical LCD with enhanced configuration and diagnostics Internal bypass; maintenance bypass available on HotSwap versions Panel for battery replacement (hot-swappable) Slot for management card Energy metering and load segment control |
| Topology | Online double-conversion (VFI) |
| Warranty | 3 years manufacturer warranty |
| Capacity_W | 3000 |
| Capacity_VA | 3000 |
| Description | The Eaton 9PX3000IRT2UANZ is a 2U rack/tower online double-conversion UPS delivering 3000 VA / 3000 W with unity power factor. Designed for servers, storage and network environments, it features a multilingual graphical LCD for local status and configuration, energy metering with programmable outlet groups, hot-swappable internal batteries and scalable runtime via external battery modules (EBM). The 9PX family includes ENERGY STAR qualified models, ABM battery management technology to extend battery service life and options for lithium-ion battery variants. Management options include USB and RS-232, a management-card slot (network card standard on Netpack versions) and integration with Eaton Intelligent Power Manager for virtualized environments. |
| Form Factor | Rack/Tower (RT2U, 2U rack height) |
| Other Notes | Outputs reported as 8 x IEC C13 (10 A) + 2 x IEC C19 (16 A) with energy metering (including 2 programmable groups) Netpack versions include network management card as standard Family offers lithium-ion battery options on select models |
| Rack Height | 2U |
| Compatibility | Servers, storage, networking equipment Virtual environments (VMware, Hyper-V, Citrix Xen, Red Hat) |
| Input Voltage | 200 / 208 / 220 / 230 / 240 V AC |
| Product Title | Eaton 9PX 3000VA (3000W) RT2U Rack/Tower UPS - 9PX3000IRT2UANZ |
| Input Connector | IEC C20 (16 A) |
| What's Included | Eaton 9PX3000IRT2UANZ UPS Input cable 2 IEC output power cords USB cable Serial cable 2 brackets for 19" mounting 2 universal rails 2 supports for tower mounting Cable locking systems Safety guide Quickstart |
| Energy & Metering | Efficiency: Up to 93% (model dependent) Certifications: [ "ENERGY STAR qualified" ] Energy Metering: Yes (per-outlet/managed outlet groups, energy consumption metering) Programmable Outlet Groups: 2 |
| Output Connectors | IEC-320-C13: { "count": 8, "rating": "10 A" } IEC-320-C19: { "count": 2, "rating": "16 A" } |
| Output Power Factor | 1.0 (unity) |
| Input Current Rating | 16 A |
| Physical Specifications | Weight: 35.1 kg Dimensions (W x H x D): 58 x 29 x 77 cm |
| Manufacturer Part Number | 9PX3000IRT2UANZ |
| Communications & Management | Multilingual graphical LCD display Slot for management card (network card standard on Netpack version) Compatible with Eaton Intelligent Power Manager (IPM) Virtualization integration: VMware, Hyper-V, Citrix Xen, Red Hat |
Eaton 9PX3000IRT2UANZ 9PX 3000VA Rack/Tower, ANZ 16A I/P
