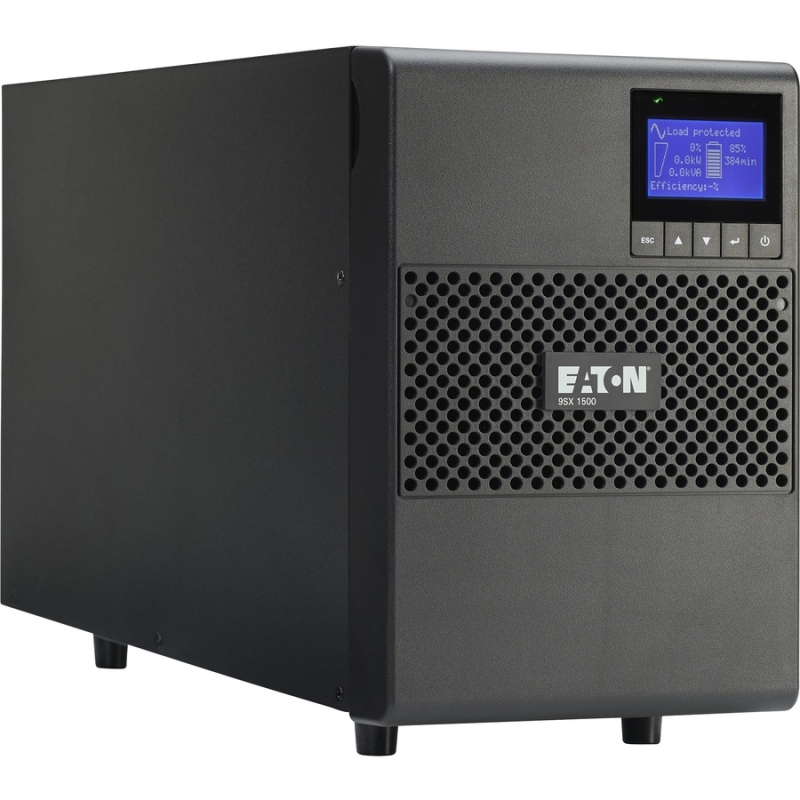

Eaton 9Sx 1500Va/ 13500W On Line Tower Ups 240V 9Sx1500I-Au

Rated /5 based on customer reviews

SKU: 274268

Brand: Eaton

Manufacturer Link

MPN: 9SX1500I-AU

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $2,203.00

Special Price $1,916.00

Buy Now And Earn Reward Points!
Eaton 9SX 1500I
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Tower
Part Number 9SX1500I-AU
Rating (VA/Watts) 1500/1350
Dimensions (H x W x D, mm) 252 x 160 x 437
Warranty 2 years
Electrical Input
(1) IEC-320-C14
Input Voltage Range 190-276V without derating (up to 120–276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Electrical Output
Output Receptacles
(4) Aust. 10A
Australian 10A
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise <43dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM
Eaton 9SX 1500VA/13500W On Line Tower UPS, 240V
