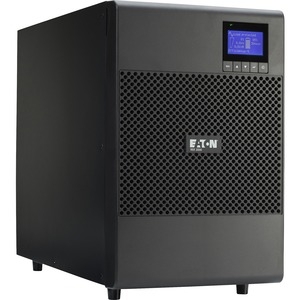

Eaton 9Sx 2000Va/ 1800W On Line Tower Ups 240V 9Sx2000I-Au
SKU
281241
Brand
MPN
9SX2000I-AU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,488.00
Buy Now And Earn 3488 Reward Points!
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Tower |
| Part Number | 9SX2000I-AU |
| Rating (VA/Watts) | 2000/1800 |
| Dimensions (H x W x D, mm) | 346 x 214 x 412 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
 |
| Input Voltage Range | 200-276V without derating (up to 140-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Output Receptacles |
(1) IEC-320-C19
(5) Aust. 10A
 |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Battery | |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <45dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM |
Eaton 9SX 2000VA/1800W On Line Tower UPS, 240V
