VA	700 VA
Brand	Eaton
Color	Black
Model	9SX700I-AU
Notes	AU-configured unit with 4 × Australian 10A receptacles; compatible with Eaton network connectivity cards for remote management.
Watts	630 W
Weight	11.5 kg
Altitude	<1000 m for nominal power; approximately 10% power degradation every 1000 m up to 3000 m
Category	Power and Rack Equipment
Topology	On-line double-conversion (double-conversion) with PFC
Description	The Eaton 9SX 700VA / 630W is an on-line double-conversion tower UPS with power-factor-corrected electronics, designed for IT, networking and telecom environments. The AU-configured unit provides 240V output via four Australian 10A receptacles and accepts a 1x IEC-320-C14 input. It features a multilingual graphical LCD, internal sealed lead-acid battery with hot-swappable replacement capability, internal static bypass, ABM® battery management with temperature-compensated charging and automatic battery test, and an expansion slot for Eaton network/communication cards. Communications include USB and RS-232 ports plus mini-terminal blocks for Remote Power Off and output relay. Compact tower form factor with a robust set of safety and EMC approvals makes it suitable for small server racks and critical infrastructure.
Battery type	Sealed lead-acid (internal)
Sub-Category	Power Equipment
Audible noise	<40 dB at 1 m
Phase (input)	Single-phase

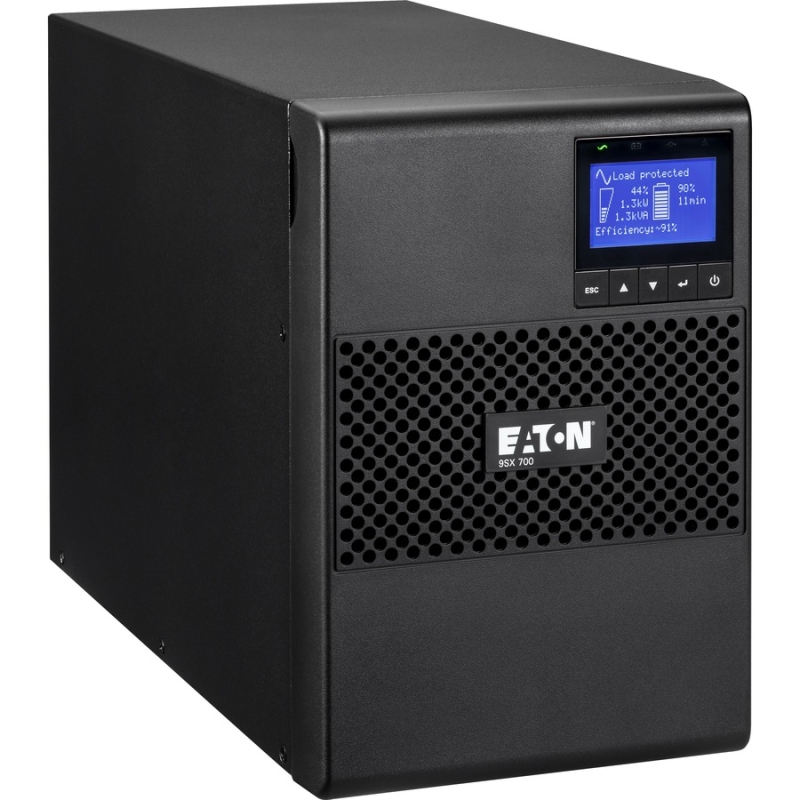

Product Title	Eaton 9SX 700VA / 630W On-line Tower UPS (9SX700I-AU, AU)
Hot-swap power	No
Phase (output)	Single-phase
Input frequency	50/60 Hz (auto-select)
Output waveform	Sine wave
Input connection	1 × IEC-320-C14
Output frequency	50/60 Hz (auto-select); frequency converter as standard
Relative humidity	0-96% non-condensing
Output receptacles	(4) Australian 10A
Battery replacement	Hot-swappable
Input voltage range	190-276 VAC without derating (up to 120-276 VAC with derating)
Output power factor	0.9
Catalog Number / SKU	9SX700I-AU
Input frequency range	40-70 Hz
Input nominal voltage	200 / 208 / 220 / 230 / 240 V
Manufacturer warranty	2 Years Limited Warranty
Operating temperature	0 to 40 °C (32 to 104 °F)
Communications / Ports	1 × USB, 1 × RS-232, 1 × mini-terminal block for Remote Power Off, 1 × mini-terminal block for Output relay
Dimensions (H x W x D)	252 x 160 x 357 mm
Internal static bypass	Yes
Output nominal voltage	240 V
Software compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Display / User interface	Multilingual graphical LCD
Manufacturer Part Number	9SX700I-AU
Certifications / Approvals	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CB CE RCM UL 1778 cULus CSA 22.2 FCC Class B CISPR22 Class B EAC TUV (CB report)
Form Factor / Configuration	Tower (free-standing)
Expansion slot / Network card	1 slot for optional Network-M2, Network-MS, ModBus-MS or Relay-MS cards (includes no network card by default)
Output nominal frequency note	50/60 Hz autoselect; frequency converter supported
Battery configuration / features	Built-in battery; ABM® and temperature-compensated charging, automatic battery test, deep discharge protection, automatic recognition of external battery units; extended battery capability supported

Eaton Eaton 9SX 700VA/630W On Line Tower UPS, 240V is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW86360. Order online for Australia-wide delivery with local support.
