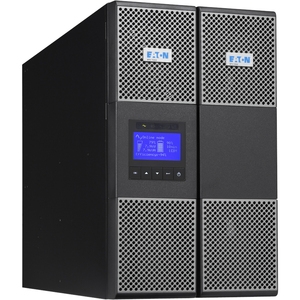

main product photo

Eaton Powerware 9px 11kva 1:1 Power Module (rack Kit Not Included) 9px11kipm

SKU
228478
Brand
Eaton
Manufacturer Link
MPN
9PX11KiPM
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$10,315.00
Buy Now And Earn 10315 Reward Points!
Add to Compare

9PX11KiPM and 9PXEBM240

　
Eaton 9PX 11000i RT 6U UPS

General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Part Number 9PX11KiPM and 9PXEBM240
Rating (VA/Watts) 11000/10000
Dimensions (H x W x D, mm) 260 (6U) x 440 x 685
Weight (kg) 86
Warranty 3 years on electronics, 2 years on battery

Electrical Input
Connection
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Input Voltage Range 176-276V without derating (up to 100–276V with derating)
Nominal Voltage 200/208/220/230/240/250V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Short Circuit Current 150 A
THDI <5%

Electrical Output
Voltages 200/208/220/230/240/250V +/– 1%
Voltage THD < 2%
Output Receptacles
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Overload Capacity 102–110% : 120s, 110–125%: 60s, 125–150%: 10s, >150%: 900ms
Efficiency (Normal Mode) Up to 95% in Online mode, 98% in Hi-Efficiency mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Load Crest Factor 3:1
Battery
Runtime
(Minutes)
2000
4000
6000
8000
10000
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
　
　
 Standard Runtime
　
 With 1 EBM
　
 With 2 EBMs
　
 With 3 EBMs
　
 With 4 EBMs
　
 With 5 EBMs
　
 With 6 EBMs
　
 With 7 EBMs
　
 With 8 EBMs
　
 With 9 EBMs
　
 With 10 EBMs
　
 With 11 EBMs
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

Show:












　

Load (Watts): 2042
Standard Runtime: 40
 With 1 EBM: 90
 With 2 EBMs: 140
 With 3 EBMs: 198
 With 4 EBMs: 254
 With 5 EBMs: 293
 With 6 EBMs: 338
 With 7 EBMs: 410
 With 8 EBMs: 471
 With 9 EBMs: 544
 With 10 EBMs: 603
 With 11 EBMs: 654
　
　
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM (3U)

Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation.
Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards

Environmental & Standards
Audible Noise <50dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick
Approvals CE, CB report (TUV), UL (Power Module)
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
