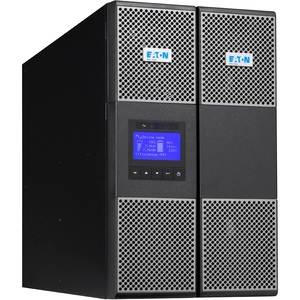

Eaton Powerware 9PX 8kVA 1:1 Power Module (no Internal Batteries,Rack Kit Not Included) 9PX8KiPM
SKU
228477
Brand
MPN
9PX8KiPM
Warranty
Standard Manufacturer's Warranty
$7,433.00
Buy Now And Earn 7433 Reward Points!
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
| MPN | 9PX8KIPM |
|---|---|
| SKU | 9PX8KiPM |
| UPC | 743172039361 |
| Type | UPS Power Module (no internal batteries) |
| Brand | Eaton |
| Color | Black/silver |
| Model | 9PX8KIPM |
| Notes | Includes one expansion slot for optional communications card; network management card not included. |
| Weight | 19 kg |
| Wattage | 7.2 kW |
| Altitude | Rated to 3000 m |
| Category | Power and Rack Equipment |
| Topology | Online / Double-conversion |
| Warranty | 2 year |
| Rack Size | 3U |
| VA Rating | 8 kVA |
| BTU Rating | Online: 1472 |
| Receptacle | Hardwired / terminal block |
| Description | Eaton 9PX 8 kVA / 7.2 kW online (double-conversion) UPS power module designed for rack or tower installation (3U). This power module ships without internal batteries and supports external battery modules (up to 12 EBMs, supercharger required for >6). Single-phase input and output with a 0.9 output power factor delivers more usable watts for servers and IT equipment. Features include a multilingual graphical LCD, USB (HID) and RS232 serial ports, dry-contact relays, mini terminal blocks for remote ON/OFF and remote power off, DB15 for parallel operation, one expansion slot for an optional communications card (network card not included), Energy Star–class efficiency (95% at full load, up to 98% in eco-mode), internal bypass for service continuity, and advanced battery management (ABM, temperature-compensated charging, automatic battery test, deep-discharge protection, automatic recognition of external battery units). Rack mounting kit sold separately (9RK). |
| Form Factor | Rack/Tower |
| Noise Level | <48 dB at 1 meter |
| Sub-Category | Power Equipment |
| Phase (Input) | 1 |
| Product Title | Eaton 9PX 8kVA (7.2kW) 230V Power Module, 3U Rack/Tower (No Internal Batteries) |
| Catalog Number | 9PX8KIPM |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 UL 1778 CE TUV cULus Listed CSA 22.2 EAC |
| Communications | USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini terminal block for remote power off Dry contacts (4 outputs, relay, DB9) |
| Hot Swap Power | No |
| Phase (Output) | 1 |
| User Interface | Multilingual graphical LCD display |
| Expansion Slots | One slot for optional communication card (network management / relay / industrial card) |
| Internal Bypass | Yes |
| Output Waveform | Pure sine wave |
| Battery Included | No internal batteries |
| Battery Quantity | 0 |
| Input Connection | Hardwired / terminal block (fixed connection) |
| Output Frequency | 50/60 Hz |
| Package Contents | Power Module (no internal batteries) USB cable Serial cable (2) supports for tower mounting Safety instructions Quickstart guide |
| Construction Type | Free standing model |
| Nominal Frequency | 50/60 Hz |
| Power Consumption | 432 W |
| Rack Mounting Kit | Sold separately (9RK) |
| Relative Humidity | 0-95% non-condensing |
| Battery Management | ABM (Advanced Battery Management) Temperature-compensated charging (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
| Dimensions (HxWxD) | 44 cm x 13 cm x 70 cm |
| Input Power Factor | >0.99 |
| Parallel Operation | DB15 connector for parallel operation |
| Input Voltage - Max | 276 V |
| Input Voltage - Min | 100 V |
| Input Voltage Range | 176-276 V (100-276 V with derating) |
| Output Power Factor | 0.9 |
| Output Voltage Range | 200/208/220/230/240/250 V ±1% |
| Runtime at Full Load | Requires external battery modules (no internal runtime specified) |
| Runtime at Half Load | Requires external battery modules (no internal runtime specified) |
| Efficiency (Eco-Mode) | 98% |
| Efficiency (Max Load) | 95% |
| Includes Network Card | No |
| Input Frequency Range | 40-70 Hz |
| Input Nominal Voltage | 230V default (200/208/220/230/240/250V) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Manufacturer Reference | 9104-22003 |
| Output Nominal Voltage | 230V default (200/208/220/230/240/250V) |
| Software Compatibility | Eaton Intelligent Power Manager Eaton Intelligent Power Protector |
| External Battery Support | Yes |
| Max Number of Battery Packs | Up to 12 (supercharger required for more than 6 EBMs) |
| Number of Hardwired Outputs | 1 |
| Potential Free Switch Contact | Yes |
| Hot-Swappable External Batteries | External battery modules described as hot-swappable (per manufacturer literature) |
| Voltage Distortion Output (Linear Load) - Max | 2% |
EATON Powerware 9PX 8kVA 1:1 Power Module (no internal batteries,Rack Kit not included)
