MPN	MBP6KI
SKU	MBP6Ki
UPC	743172040145
Type	HotSwap Maintenance Bypass (MBP) / Service bypass panel
Brand	Eaton
Color	Black
Model	MBP6Ki (HotSwap MBP 6000i)
Notes	Warranty: Manufacturer warranty periods vary by region/source; refer to Eaton documentation or local reseller for warranty details. Manual reference: Installation and user manual available (Manual code SK-90510-Y4_EN).
Phase	Single-phase
Category	Power and Rack Equipment
Features	HotSwap (make-before-break) maintenance bypass Allows UPS servicing/replacement without interrupting connected loads Cable locking system LED indication Mounting material included
VA rating	6000 VA
Datasheets	https://www.electricautomationnetwork.com/PDF/PIM/ETN/EN_MBP6KI.pdf https://www.electricautomationnetwork.com/PDF/ftp/categorias/15842/EN/EATON_POWER_INFRAESTRUCTURE_SOLUTIONS_PRODUCTS_EN.pdf https://www.electricautomationnetwork.com/PDF/ftp/categorias/15560/EN/CATALOGUE_EATON_EN_.pdf https://media.bechtle.com/asrc/180712/1c4b3d4ee288fc9434f5175bf56070570/c3/-/bbb495fe901a472e8666e4788f1fb740/eaton-hotswap-mbp6ki-data-sheet-1
Description	Eaton HotSwap MBP 6000i (MBP6Ki) is a 6 kVA external maintenance bypass (HotSwap MBP) for single-phase hardwire UPS systems. It provides a make-before-break HotSwap function to allow UPS servicing or replacement without interrupting connected loads. Rack-mountable 3U design (19"), horizontal mounting; outputs include 3× IEC C13, 2× IEC C19 and one hardwired output. Input 200–240 V (supply 230 V nominal). Designed for high availability during battery replacement and maintenance. Includes cable locking system, connection cable to the UPS, rack-mounting kit and user manual. Operating temperature 0° to 40°C (32° to 104°F).
Form factor	3U rack-mount
Weight (kg)	3.28
Sub-Category	Power Equipment
Input voltage	200–240 V
Product Title	Eaton HotSwap MBP 6000i (MBP6Ki) Maintenance Bypass, 6 kVA, 3U, 200–240 V, 3×C13 + 2×C19 + Hardwired
Catalog Number	MBP6KI
Input connection	Hardwired
Mounting options	Rack (19") Wall Back of UPS

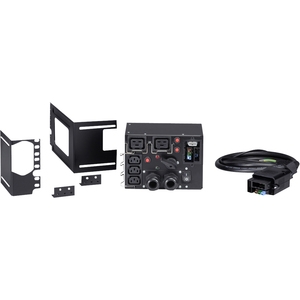

Package contents	Maintenance Bypass Cable locking system Connection cable to the UPS Rack-mounting kit User manual
Outputs (summary)	3 × IEC 320 C13, 2 × IEC 320 C19, 1 × hardwired
Rated power (kVA)	6 kVA
Mounting direction	Horizontal
Compatibility / Notes	Designed for use with compatible Eaton single-phase UPS systems (examples cited: 9PX5KIBP & 9SX5KIRT). See Eaton documentation for full compatibility details.
Electrical connection	Screwed terminal
Number of outputs C13	3
Number of outputs C19	2
Operating Temperature	0° to 40°C (32° to 104°F)
Over voltage category	2
Manufacturer Part Number	MBP6KIEAN743172040145
Supply voltage (nominal)	230 V
Dimensions (W x D x H, mm)	Depth: 185 Width: 305 Height: 150
Certifications / Compliance	CE
Number of outputs hardwired	1
Number of outlets with earth pin	5
Communication / Network interfaces	SNMP: No Serial: No Ethernet: No Other communication: No
Rack size / Mounting dimension (standardized)	482.6 mm (19 inch)

Eaton EATON Powerware HotSwap MBP 6000i (Maintenance bypass module 5/6kVA 9SX/PX) is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW87614. Order online for Australia-wide delivery with local support.
