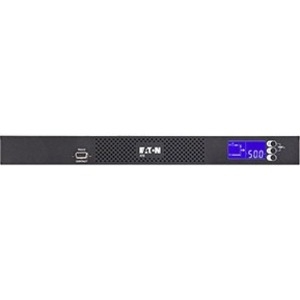

Eaton Ats W/Serial Port - (2)C20 16A Input, (8)C13, (1)C19 Outlets EATS16
SKU
385581
Brand
MPN
EATS16
Warranty
Standard Manufacturer's Warranty
$1,351.00
Buy Now And Earn 1351 Reward Points!
Eaton ATS w/Serial Port - (2)C20 16A Input, (8)C13, (1)C19 Outlets
| SKU | EATS16 |
|---|---|
| Type | Automatic Transfer Switch (ATS) Rack PDU |
| Brand | Eaton |
| Color | Black |
| Model | EATS16 |
| Phase | Single-phase |
| Inputs | (2) C20 |
| Weight | 3.32 kg |
| Wattage | 3.84 kW max |
| Category | Power and Rack Equipment |
| Max Power | 3.84 kW |
| UPC / EAN | 743172079404 |
| Switchable | No (automatic transfer without user-switched outlet control) |
| Cord length | 2 m (unit reported); input cable length in package: C19–C20 1.8 m (per package contents) |
| Description | Eaton EATS16 is a 1U automatic transfer switch (ATS) rack PDU that provides power redundancy for IT equipment. Designed for single-phase 200–240V environments, it accepts two C20 inputs and provides eight C13 outlets plus one C19 outlet (total 9 earthed outlets), supporting up to 16 A and 3.84 kW. The unit includes an LCD with basic metering, LED indicators and an ampere meter. Compact 1U form factor with 19" rack mounting, CE marked, and suitable for horizontal rack installation. Package contents include the ATS unit, input cables (C19–C20), cable lockers, output locking strips, RS-232 serial cable and rack-mount accessories. |
| Fitted With | LCD (metering and basic configuration) Ampere meter LED indicators |
| Form Factor | 1U (19 inch rack) |
| Sub-Category | Power Equipment |
| Input Voltage | 200–240 V |
| Product Title | Eaton EATS16 ATS Rack PDU 1U — 16A, 200–240V, (2) C20 in → (8) C13 + (1) C19 out |
| Communications | No Ethernet/SNMP reported; RS-232 serial cable included (per package contents) |
| Outlet Control | No |
| Amperage Rating | 16 A |
| Electrical Notes | Electrical connection via supplied input cords; evaluation/local metering |
| Frequency Rating | 50/60 Hz |
| Package Contents | ATS unit Quickstart guide Safety instructions (2) Input cables: C19–C20 1.8 m (2) Input cable lockers Plastic strips for output locking RS-232 serial cable Accessories for rack installation |
| Rack Mount Width | 482.6 mm (19 inch) |
| Special Features | Provides power redundancy to IT equipment Automatic transfer between two power sources Compact 1U rack form factor LCD with metering and basic configuration capabilities Alternative to redundant power supplies in networking equipment |
| Outputs / Outlets | (8) C13, (1) C19 (total 9 outlets with earth pin) |
| Mounting Direction | Horizontal |
| Additional References | Catalog Number: EATS16 Reference / Catalog: 9001-5017 |
| Electrical Connection | Connecting cord with plug |
| Number of Outputs C13 | 8 |
| Number of Outputs C19 | 1 |
| Number of Outputs C20 | 2 |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Over Voltage Category | 2 |
| Datasheets / Resources | https://datasheet.eaton.com/datasheet.php?model=EATS16&locale=en_US https://www.electricautomationnetwork.com/PDF/PIM/ETN/EATS16_EN.pdf https://www.jinnuoglobal.com/wp-content/uploads/2024/02/skuPage.EATS16.pdf |
| Dimensions (H x W x D) | Depth: 430 mm Width: 250 mm Height: 43 mm |
| Manufacturer Part Numbers | EATS16 9001-5017 9001-5017-00P |
| Compliances / Certifications | CE |
| Mounting Material / Accessories | Rack-mount accessories included (mounting material reported) |
Eaton ATS w/Serial Port - (2)C20 16A Input, (8)C13, (1)C19 Outlets
