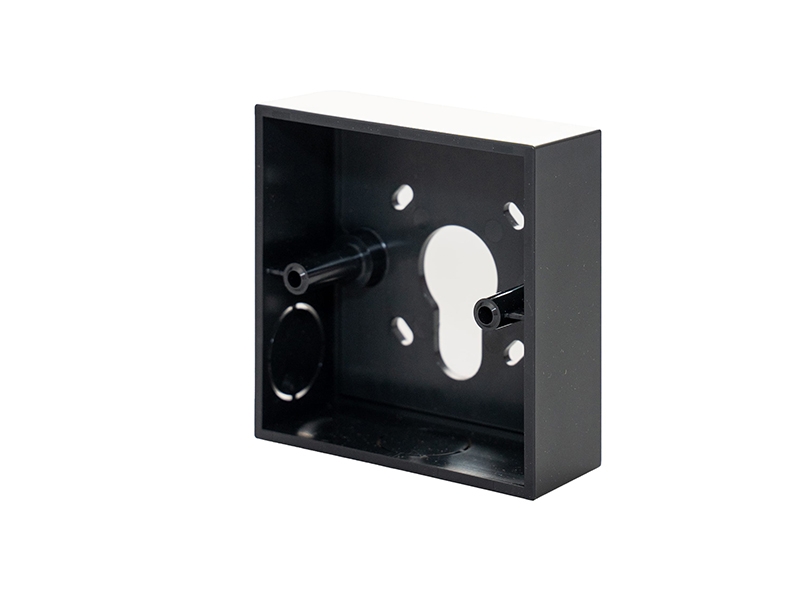

Jackfuse Electronic Break Glass With Mounting Block - Charcoal EBG-C-MB
SKU
444286
Brand
MPN
EBG-C-MB
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$205.00
Buy Now And Earn 205 Reward Points!
The Jack Fuse Electronic Break Glass represents a significant advancement in security technology, offering remote and automatic reset capabilities. For the first time, the need to attend and perform a manual reset has been eliminated, along with associated costs.
- Automatic Reset
- Remote Reset
- Local Reset
The new reset modes, combined with audible and visual feedback, substantially enhance security by reducing the time doors are left unlocked unnecessarily, as well as discouraging nuisance activations.
APPLICATIONS
- Emergency door release
- Electric locks, auto doors and gates
- New installations and retrofits
- Remote facilities
- High-security sites
- Managed and unmanaged buildings
FEATURES
Automatic, remote and local reset
Lift-up activation guard
Case and wall tamper switch
Back-lit status indication
Activation sounder
Adjustable brightness/volume
Local override switch
Two 3A relay contacts
Standard break glass footprint/mounting options for simple retrofit
- Automatic Reset
- Remote Reset
- Local Reset
The new reset modes, combined with audible and visual feedback, substantially enhance security by reducing the time doors are left unlocked unnecessarily, as well as discouraging nuisance activations.
APPLICATIONS
- Emergency door release
- Electric locks, auto doors and gates
- New installations and retrofits
- Remote facilities
- High-security sites
- Managed and unmanaged buildings
FEATURES
Automatic, remote and local reset
Lift-up activation guard
Case and wall tamper switch
Back-lit status indication
Activation sounder
Adjustable brightness/volume
Local override switch
Two 3A relay contacts
Standard break glass footprint/mounting options for simple retrofit
| 1 | EBG-C 5 JACKFUSE ELECTRONIC BREAK GLASS - CHARCOAL $135.00 |
| QTY | SKU SOH DESCRIPTION PRICE(EX GST) |
| Relay | 2 X 3A SPDT (1 Form C) |
| Operating voltage | 12 & 24VDC* - Fail safe** |
| Power | 55mA @ 12VDC (red LED + sounder on) |
| Dimensions | 86X86X40mm (with guard) |
| Operations | 40,000 (actuator presses) |
| Primary materials | Polycarbonate, Polyamide 46, fiberglass |
| Country of origin | China |
| Colour | Charcoal with green facia |
The Jack Fuse Electronic Break Glass represents a significant advancement in security technology, offering remote and automatic reset capabilities. For the first time, the need to attend and perform a manual reset has been eliminated, along with associated costs.
