HID/SPP Mode and can switch.
Supports Bluetooth/2.4G/Wired Mode, 3modes for option.
Supports Handheld/Continuous/Auto-Induction , 3modes for option.
Support over sixteen different countries' keyboard layout.
Excellent decoding ability, high speed and low error rate.
Built-in 2600mAh battery, super-long standby time.
Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile.
phone and computer screen, and it also can read 2D barcodes.
Can be customized according to customer demand.

Technical parameters

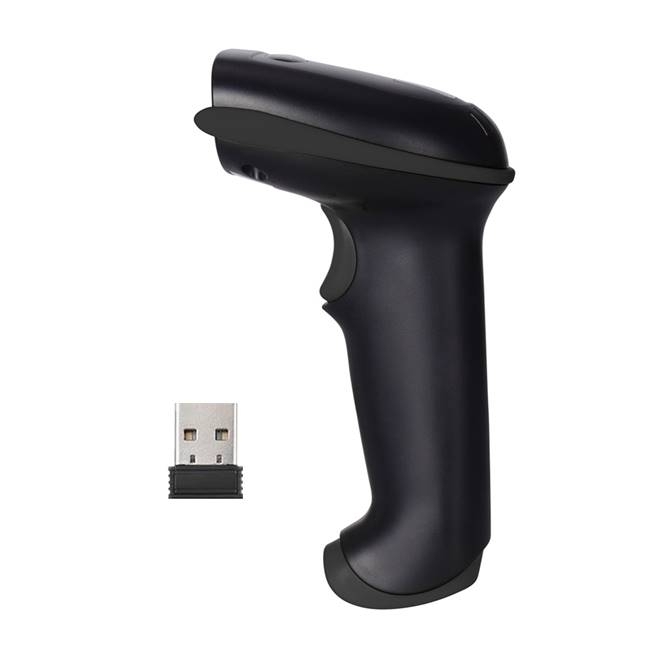

Product Specification: YHD-5700DB 2D Wireless Bluetooth Barcode Scanner

Scanner parameters:

Transmission mode: Bluetooth/2.4G/Wired

Storage: 100,000 barcodes

Distance: 50m/100m/1.5m

Sensor: 640 × 480 CMOS

CPU: ARM 32-bit Cortex

Battery: 3.7V-2600mAh

Indication: Buzzer & LED

Light aimer:617nm LED

Resolution: 4mil

Anti-inference: 0-100000Lux Max

Decoding speed: 500scans/sec

Illumination:6500K LEDs

Printing Contract: ≥25%

Interface: USB, USB-COM

Button life: 8000,000 times

Material: ABS+PC

Trigger Mode: Handheld,Continuous,Auto-Induction

Depth

Of

Field

13mil-EAN13

50-250mm

4mil-code39

60-100mm

20mil-QR

40-300mm

10mil-PDF417

40-280mm

Decode Capability:

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

Coda bar, MSI Plessey, RSS, etc.

2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

Working current: 3.3Vx200mA

Standby current: 18uA-5mA

Working time: 7 to 10 days

Charging power: 5V-400mA

Certificate: CE, FCC, RoHS, IP54

Drop test: 2m
