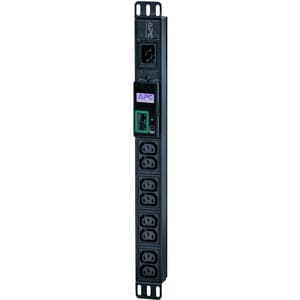

APC Easy Rack Pdu, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 X C13 Outlets, IEC60320 C20 Inlet EPDU1016M

SKU
417398
Brand
MPN
EPDU1016M
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$732.00
Buy Now And Earn 732 Reward Points!
APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Product Type PDU
Input Voltage 230 V AC
Output Voltage 208 V AC, 230 V AC
Input Current 16 A
Mount Type Rack-mountable
Rack Height 1U
Brand Name APC by Schneider Electric
Plug/Connector Type IEC 60320 C20
Receptacle Type IEC 60320 C13
Product Family EasyPDU Metered
PDU Type Metered
Mounting Orientation Horizontal/Vertical/Toolless
Power Rating (VA) 3.68 kVA
Receptacle Detail 8 x IEC 60320 C13
Manufacturer Part Number EPDU1016M
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Easy Metered Rack 8-Outlets PDU
Product Line Easy Metered Rack
Network (RJ-45) Yes
Management • HTTP/HTTPS • SNMPV1/V2/V3 • Modbus-TCP • Telnet
Weight (Approximate) 700 g
Height 44 mm
Width 482 mm
Depth 44 mm
Shipping Dimensions Height 8, Width 15.5, Length 56.5, Shipping Weight 1.4 KG
APC Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
