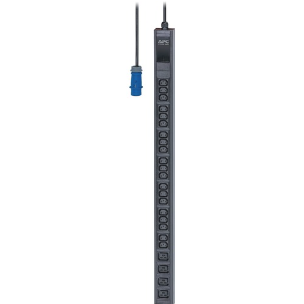

APC by Schneider Electric Easy Basic Rack EPDU1116B PDU - Basic - IEC 309 16A 2P+E - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - 0U - Horizontal/Vertical/Toolless - Rack-mountable EPDU1116B
SKU
406228
Brand
MPN
EPDU1116B
Warranty
Standard Manufacturer's Warranty
$450.00
Buy Now And Earn 450 Reward Points!
APC by Schneider Electric Easy Basic Rack EPDU1116B PDU - Basic - IEC 309 16A 2P+E - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - 0U - Horizontal/Vertical/Toolless - Rack-mountable
Easy Basic Rack PDU
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
APC Easy Basic Rack PDU provides reliable rack power distribution for server rack and network rack via a single input with multiple output receptacles and distribute power from low amperage single phase circuits to higher-power 3 phase power solutions.
Guides & Documents
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 3.68 kVA |
Physical Characteristics
| Weight (Approximate) | 2.20 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 902 mm |
| Width | 62 mm |
| Depth | 44 mm |
| Mounting Orientation | Horizontal/Vertical/Toolless |
Technical Information
| Plug/Connector Type | IEC 309 16A 2P+E |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Basic |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 4 x IEC 60320 C19 |
General Information
| Product Type | PDU |
| Manufacturer Part Number | EPDU1116B |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | EPDU1116B |
| Product Name | Easy Basic Rack EPDU1116B 24-Outlets PDU |
| Product Line | Easy Basic Rack |
| Brand Name | APC by Schneider Electric |
