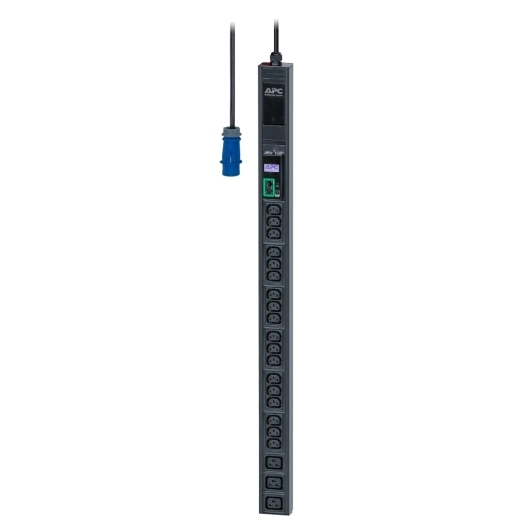

Apc - Schneider Easy PDU Metered ZeroU 16A 230V (18)C13 and (3)C19 IEC309 EPDU1116M
SKU
372480
Brand
MPN
EPDU1116M
Warranty
Standard Manufacturer's Warranty
$879.00
Buy Now And Earn 879 Reward Points!
OVERVIEW
EPDU1116M Features
Key Features
Output Connections
(3) IEC 60320 C19
(18) IEC 60320 C13
Nominal Output Voltage
230V
Nominal Input Voltage
200V, 208V, 230V
Input Connections
IEC 60309 16 A 2P + E
Cord Length
3meters
Easy PDU,Metered,ZeroU,16A,230V,(18)C13 & (3)C19; IEC309
Easy Metered Rack Power Distribution Units (Rack PDU) provide real-time remote monitoring, power management of connected loads, and much more features than the average power strip.
Includes: Installation guide, User manual, Vertical mounting brackets
- Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Easy Metered Rack PDU Features & Benefits
Availability
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Management
| Management |
|
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 3.68 kVA |
General Information
| Product Type | PDU |
| Manufacturer Part Number | EPDU1116M |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy Metered Rack 21-Outlets PDU |
| Product Line | Easy Metered Rack |
| Brand Name | APC by Schneider Electric |
Technical Information
| Plug/Connector Type | IEC 309 16A 2P+E |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 3 x IEC 60320 C19 |
| 18 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 2.50 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 902 mm |
| Width | 62 mm |
| Depth | 44 mm |
| Mounting Orientation | Horizontal/Vertical/Toolless |
