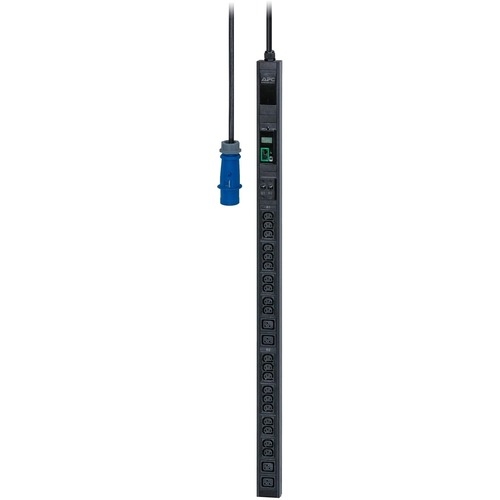

APC Easy Rack Pdu, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 X C13 And 4 X C19 Outlets, IEC60309 2P+E Inlet EPDU1132M
SKU
393817
Brand
MPN
EPDU1132M
Warranty
Standard Manufacturer's Warranty
$949.00
Buy Now And Earn 949 Reward Points!
APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 309 32A 2P+E |
| Input Voltage Range | 220 V AC - 240 V AC |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Product Family | EasyPDU Metered |
| PDU Type | Metered |
| Mounting Orientation | Horizontal/Vertical/Toolless |
| Power Rating (VA) | 7.36 kVA |
| Receptacle Detail | 20 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Manufacturer Part Number | EPDU1132M |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy Metered Rack 24-Outlets PDU |
| Product Line | Easy Metered Rack |
| Management | • https/http • SNMPV1/V2/V3 • Modbus-TCP |
| Weight (Approximate) | 3.72 kg |
| Height | 1175 mm |
| Width | 62 mm |
| Depth | 44 mm |
| Shipping Dimensions | Height 11.3, Width 16, Length 132, Shipping Weight 4.48 KG |
APC Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
