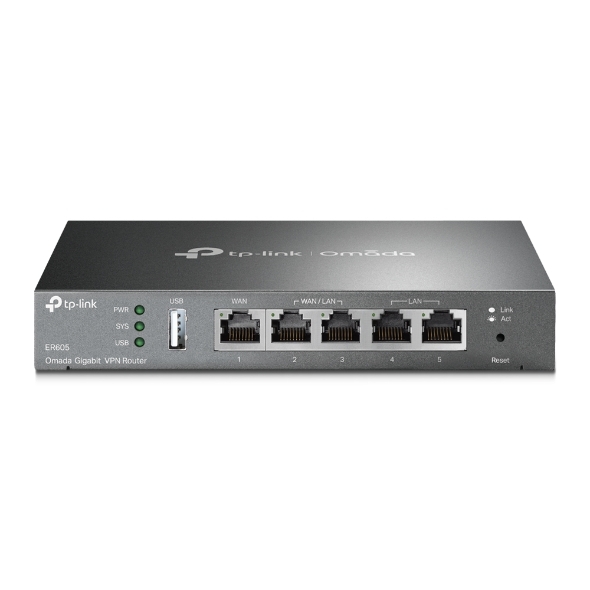

TP-Link SafeStream™ Gigabit Multi-WAN Vpn Router(ER605), 1× Gigabit Wan Port + 3× Gigabit Wan/LAN Ports + 1× Gigabit LAN Port, 5-Year Wty ER605
SKU
392402
Brand
MPN
ER605
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$122.00
Buy Now And Earn 122 Reward Points!
TP-Link SafeStream™ Gigabit Multi-WAN VPN Router(ER605), 1× Gigabit WAN Port + 3× Gigabit WAN/LAN Ports + 1× Gigabit LAN Port, 5-Year WTY
| SKU | ER605 |
|---|---|
| UPC | 845973089597 |
| Brand | TP‑Link |
| Model | ER605 |
| Notes | USB 4G/3G modem compatibility: consult TP‑Link compatibility list for supported modems Some vendors list alternative port configurations (models/firmware variants). Specifications above reflect the ER605 / TL‑R605 listings consolidated from multiple sources in provided data. |
| Ports | Notes: Two WAN/LAN ports are configurable; supports up to 3 WAN connections (1 fixed WAN + 2 configurable WAN/LAN) Gigabit LAN Ports: 2 Total Gigabit Ports: 5 Gigabit WAN Ports (fixed): 1 Max Configurable WAN Ports: 3 Gigabit WAN/LAN Ports (configurable): 2 |
| Weight | ≈12.6 oz (reported) |
| Category | Networking |
| Hardware | Fan: Fanless DRAM: 256 MB DDR Flash: 128 MB NAND Buttons: [ "Reset" ] Mounting: Desktop or wall‑mount Enclosure: Steel Power Supply: External 12V ⎓ 1A DC adapter LED Indicators: [ "PWR", "SYS", "WAN (Link/Act)", "LAN (Link/Act)", "USB" ] Surge Protection: 4 kV Max Power Consumption: ≈7.94 W |
| USB Ports | 1 × USB 2.0 (for 3G/4G modem WAN backup) |
| Dimensions | Depth: 4.0 in (101 mm) Width: 6.2 in (158 mm) Height: 1.0 in (25 mm) Metric: 158 × 101 × 25 mm |
| Description | The TP‑Link Omada ER605 is a compact, cloud‑manageable Gigabit VPN router designed for small and branch offices. Integrated with the Omada SDN platform and supporting Zero‑Touch Provisioning, it offers centralized cloud and app management (OC200/OC300 or Omada Software/Cloud Controller required), intelligent monitoring and flexible multi‑WAN load balancing. The ER605 provides five Gigabit Ethernet ports (1 fixed WAN + 2 configurable WAN/LAN + 2 LAN), one USB 2.0 port for 3G/4G modem WAN backup, a fanless steel enclosure with wall or desktop mounting, and extensive security and VPN capabilities including up to 20 IPsec LAN‑to‑LAN tunnels, 16 OpenVPN, 16 L2TP and 16 PPTP tunnels (WireGuard supported). Hardware and software features deliver high NAT/DPI throughput and robust firewall, DoS and access‑control protections. Package includes ER605, power adapter, RJ‑45 Ethernet cable and Quick Installation Guide. |
| Environment | Storage Humidity: 5% to 90% non‑condensing Operating Humidity: 10% to 90% non‑condensing Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Performance | DPI Throughput: TCP: ≈944 Mbps; UDP: ≈940 Mbps OpenVPN Throughput: ≈15.9 Mbps Concurrent Sessions: 150000 WireGuard Throughput: ≈82.6 Mbps New Sessions Per Second: 1800 IPsec VPN Throughput (examples): { "ESP‑SHA1‑AES256": "≈239 Mbps", "ESP‑SHA256‑AES256": "≈251 Mbps" } NAT Throughput (example bi‑directional): ≈1775 Mbps (varies by mode) |
| VPN Support | L2TP: Up to 16 tunnels PPTP: Up to 16 tunnels Other: VPN Pass‑through, SSL VPN (supported in features list) OpenVPN: Up to 16 tunnels WireGuard: Supported (20 tunnels reported) IPsec (LAN‑to‑LAN): Up to 20 tunnels |
| Sub-Category | Routers and Components |
| Product Title | TP‑Link Omada ER605 Gigabit Multi‑WAN VPN Router (5‑Port, USB WAN, Omada SDN) |
| Certifications | CE FCC RoHS |
| Ethernet Speed | 10/100/1000 Mbps (Gigabit Ethernet) |
| Package Contents | ER605 router Power adapter RJ‑45 Ethernet cable Quick Installation Guide |
| Security Features | SPI Firewall Advanced firewall policies DoS defense (TCP/UDP/ICMP flood protection) IP/MAC/URL filtering ARP inspection (IP‑MAC binding, ARP scanning/GARP) Access control (Source/Destination IP) Attack defense (block TCP scans, block ping from WAN) ALG: FTP/H.323/SIP/IPSec/PPTP NAT traversal, Dead Peer Detection, PFS |
| Alternate Model Names | TL‑R605 ER605 V2 ER605 V2.2 |
| Management & Features | Other: [ "VLAN (802.1Q)", "IPv6 support", "IGMP v2/v3 Proxy and modes for IPTV", "QoS", "mDNS Repeater", "Session limits and IP‑based bandwidth control" ] Cloud Access: Yes (via Omada Cloud Controller) Advanced Routing: [ "Static routing", "Policy routing", "RIP (reported)", "OSPF (reported)" ] Management Interfaces: [ "Web Management Interface (Standalone)", "Omada App", "SNMP v1/v2c/v3", "CLI (Standalone Mode)", "Remote Management", "Port Mirroring", "Diagnostics (Ping/Traceroute)", "Export/Import Configuration" ] Omada SDN Integration: Yes (Omada Hardware Controller OC200/OC300, Omada Software Controller, or Omada Cloud‑Based Controller required for full SDN features) Load Balancing & Failover: [ "Intelligent load balance", "Application optimized routing", "Link backup (timing, failover)", "Online detection" ] Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller) |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS IPSec, PPTP, L2TP, OpenVPN, WireGuard, SNMP |
