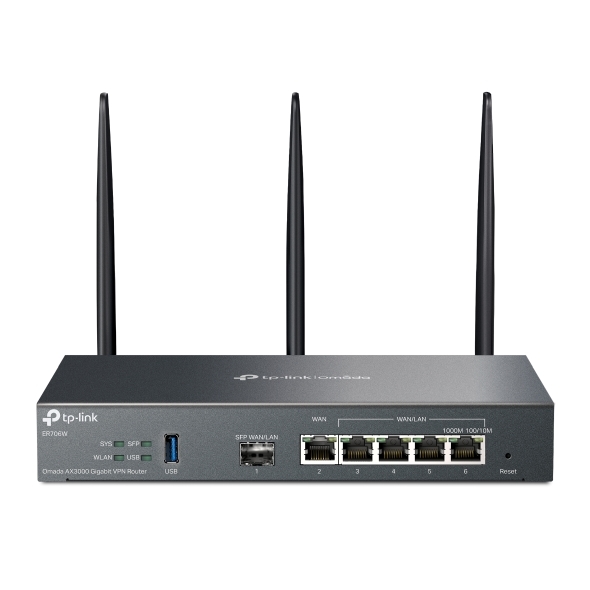

TP-Link Omada AX3000 Gigabit Vpn Router (ER706W), 5-Year Wty ER706W
SKU
408031
Brand
MPN
ER706W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$310.00
Buy Now And Earn 310 Reward Points!
TP-Link Omada AX3000 Gigabit VPN Router (ER706W), 5-Year WTY
| SKU | ER706W |
|---|---|
| VPN | Protocols Supported: [ "IPSec (IKEv1/v2, DES/3DES/AES128/192/256, NAT-T, DPD, PFS)", "SSL VPN", "WireGuard", "OpenVPN", "PPTP", "L2TP (incl. L2TP over IPSec)", "GRE" ] Tunnel Limits / Notes: { "OpenVPN Tunnels": "55 (server), can connect to up to 5 OpenVPN servers as client", "SSL VPN Tunnels": "50", "IPSec VPN Tunnels": "100", "WireGuard Tunnels": "20", "PPTP/L2TP Client Connections": "Up to 10 (for connecting to VPN servers)" } |
| Brand | TP-Link (Omada) |
| Model | ER706W |
| Notes | Maximum wireless signal rates are physical rates derived from IEEE 802.11 specifications; actual throughput and coverage will vary. HE160, OFDMA and other Wi‑Fi 6 features require client support; 160 MHz may be restricted in some regions. Certain features (e.g., Controller-only or Standalone-only features) require the corresponding operating mode (Omada Controller Mode vs Standalone Mode) as documented by TP-Link. |
| Ports | USB: 1 × USB 3.0 (supports USB storage and LTE backup with compatible USB LTE dongle) Gigabit RJ45: 5 (LAN/WAN configurable) Gigabit SFP (mini-GBIC): 1 |
| Power | Power Supply: 12 V DC, 2 A power adapter Max Power Consumption: { "EU": "11.8 W (without USB 3.0) / 16.8 W (with USB 3.0 connected)", "US": "18.2 W (without USB 3.0) / 22.7 W (with USB 3.0 connected)" } |
| Antenna | 3 × external detachable dual-band antennas |
| Hardware | CPU: Quad-core Cortex-A53 RAM: 512 MB DDR4 Flash: 128 MB NAND Processor Cores: 4 |
| Physical | Color: Black Weight: 3.43 lb Mounting: [ "Desktop", "Wall-mountable" ] Material / Chassis: Steel (improved heat dissipation) — as stated by manufacturer Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (antenna dimensions not included) |
| Description | The TP-Link Omada ER706W is an AX3000 dual-band Wi‑Fi 6 gigabit VPN router designed for small business and advanced home networks. It delivers up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz (concurrent AX3000), offers 6× gigabit ports (5× RJ45 + 1× Gigabit SFP), and includes a USB 3.0 port for USB storage and LTE backup via compatible USB dongles. ER706W integrates with the Omada SDN platform for centralized cloud/controller management and Omada App setup, supports mesh with Omada EAPs, and provides comprehensive security and VPN features (IPSec, SSL, WireGuard, OpenVPN, PPTP, L2TP) plus DPI, IPS/IDS and advanced routing/load-balancing capabilities. |
| Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Performance | NAT (DHCP): ≈ 945 Mbps NAT (PPPoE): ≈ 943 Mbps NAT (Static IP): ≈ 937 Mbps OpenVPN Throughput: ≈ 129.3 Mbps SSL VPN Throughput: ≈ 126.7 Mbps Concurrent Sessions: 150000 New Sessions Per Second: 5100 DPI Throughput (TCP/UDP): ≈ 933 Mbps / 927 Mbps IPS Throughput (TCP/UDP): ≈ 229 Mbps / 188 Mbps WireGuard VPN Throughput: ≈ 393.5 Mbps L2TP (Unencrypted/Encrypted): ≈ 1034 Mbps / 570 Mbps PPTP (Unencrypted/Encrypted): ≈ 1165 Mbps / 209 Mbps 66-Byte Packet Forwarding Rate: ≈ 1,453,489 pps 1518-Byte Packet Forwarding Rate: ≈ 81,274–91,275 pps IPsec VPN Throughput (ESP-AES256 + various hashes): ≈ 643–658 Mbps (depending on hash) |
| WAN Support | Up to 5 WAN ports (combination of RJ45 and SFP); intelligent load balancing and link backup |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | Omada |
| Product Type | Wireless VPN Router |
| Compatibility | Works with Omada SDN ecosystem and Omada EAPs (mesh requires EAPs that support mesh); supports standard PC/MAC/Unix/Linux clients |
| Product Title | TP-Link Omada ER706W AX3000 Wi-Fi 6 Gigabit VPN Router (5× Gigabit RJ45 + 1× SFP, USB 3.0, LTE Backup, Omada SDN) |
| Storage & USB | USB 3.0 supports USB storage sharing and mobile broadband (LTE/3G via compatible USB modem) |
| Certifications | CE FCC RoHS |
| Wi-Fi Features | HE160 (where supported) OFDMA MU-MIMO 1024-QAM Beamforming Seamless Roaming Guest Network WPA/WPA2/WPA3 Personal & Enterprise |
| Wireless Bands | 2.4 GHz 5 GHz |
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6) Backward compatible with 802.11a/b/g/n/ac |
| Max Wireless Speeds | 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps Concurrent (AX3000): Up to 3.0 Gbps (aggregate) |
| Security & Firewall | NAT, One-to-One NAT, Multi-Net NAT, NAT-DMZ Port Forwarding / Port Triggering ALG for FTP/H.323/SIP/IPSec/PPTP UPnP DoS defense IP/MAC/URL filtering IP-MAC binding DPI (Deep Packet Inspection) IPS/IDS |
| System Requirements | Microsoft Windows (various versions listed by manufacturer) macOS / NetWare / UNIX / Linux (per manufacturer documentation) |
| Included Accessories | ER706W router Power adapter (12V DC) Detachable antennas Quick Installation Guide |
| Management & Deployment | Omada App: Yes (setup and monitoring) Other Features: [ "Automatic Device Discovery", "Batch Configuration & Firmware Upgrades", "Intelligent Network Monitoring", "Abnormal Event Warnings", "Captive Portal / Hotspot (Local User / Voucher / SMS / RADIUS in Controller Mode)" ] Local Management: Web UI; remote management; SNMP v1/v2c/v3; CLI (Standalone Mode only) Centralized Management: Omada Cloud-Based Controller; also supports Omada Hardware and Software Controllers Zero-Touch Provisioning: Yes (requires Omada Cloud Controller) |
| Manufacturer Part Number | ER706W |
| Routing & Network Features | DHCP: DHCP Server, DHCPv6 PD (Standalone Mode), DHCP options, IP reservation IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode IPv6: Static, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough VLAN: 802.1Q VLAN Routing: [ "Static Routing", "Policy Routing", "RIP", "OSPF" ] Session Limit: IP-based session limit Bandwidth Control: IP-based bandwidth control |
| Load Balancing & WAN Failover | Intelligent load balancing across multiple WANs, application-optimized routing, link backup (timing/failover), online detection |
| Total Wireless Transmission Speed | Up to 3.0 Gbps (AX3000) |
