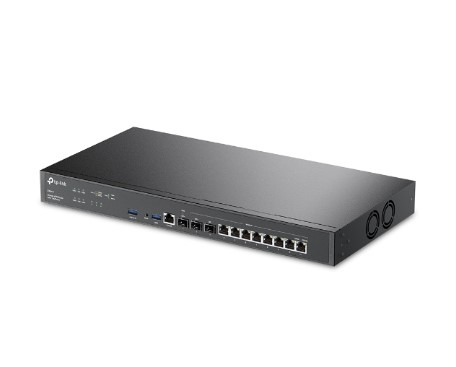

TP-Link Omada Vpn Router With 10G Ports, 5 Year Wty - (ER8411) ER8411
SKU
425282
Brand
MPN
ER8411
Warranty
Standard Manufacturer's Warranty
$1,365.00
Buy Now And Earn 1365 Reward Points!
"TP-Link Omada VPN Router with 10G Port - (ER8411)
PORT: 1× 10G SFP+ WAN Port, 1× 10G SFP+ WAN/LAN Port,1× Gigabit SFP WAN/LAN Port, 8× Gigabit RJ45 WAN/LAN Ports, 2× USB3.0 port
FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 1500000 Concurrent Sessions, Dual Power Supply, Load Balance, Link Backup, 4G LTE Backup with USB Dongle, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN, Support RJ45 SFP+/SFP Module
PORT: 1× 10G SFP+ WAN Port, 1× 10G SFP+ WAN/LAN Port,1× Gigabit SFP WAN/LAN Port, 8× Gigabit RJ45 WAN/LAN Ports, 2× USB3.0 port
FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 1500000 Concurrent Sessions, Dual Power Supply, Load Balance, Link Backup, 4G LTE Backup with USB Dongle, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN, Support RJ45 SFP+/SFP Module
| CPU | Quad-Core 2.2 GHz |
|---|---|
| RAM | 4 GB DDR4 |
| SKU | ER8411 |
| Fans | 2 |
| Brand | TP-Link |
| Model | ER8411 |
| Notes | Some features and capacities require specific firmware versions or controller modes (standalone vs. Omada Controller). USB storage functions and certain management/configuration behaviors vary between standalone and controller-managed modes. See manufacturer documentation for footnotes and detailed restrictions. |
| Weight | 6.25 lb |
| Category | Networking |
| Mounting | Rack-mountable |
| Warranty | 5 Year Manufacturer Limited Warranty |
| USB Ports | 2 × USB 3.0 (one supports LTE/4G/3G WAN backup; USB storage for config/log backup in standalone mode) |
| Description | The TP-Link Omada ER8411 is an enterprise-class 10G multi-WAN security gateway designed for high-performance, multi-branch and remote-work deployments. It features two 10GE SFP+ ports (1× WAN, 1× WAN/LAN), a 1G SFP WAN/LAN port, eight Gigabit RJ45 WAN/LAN ports (supporting up to 10 WAN connections with load balancing), and dual USB 3.0 ports (one supports LTE/4G/3G WAN backup). Powered by a quad-core 2.2 GHz CPU with 4 GB DDR4 RAM, the ER8411 supports up to 2,300,000 concurrent sessions and up to 10 Gbps NAT throughput. Robust VPN and security capabilities include SSL, IPSec, PPTP, L2TP, OpenVPN, WireGuard and related VPN modes, DPI/IPS/IDS, SPI firewall, DoS defense, IP/MAC/URL/keyword filtering, IP-MAC binding and One-Click ALG. The router integrates with TP-Link Omada SDN for centralized cloud or controller-based management (Zero-Touch Provisioning supported), offers rack-mountable steel enclosure with redundant dual power supplies, and includes surge protection. Package includes the Omada 10G Multi-WAN Security Gateway ER8411, power cord, quick installation guide and rack-mount kit. |
| Console Port | 1 × RJ45 Console |
| Power Supply | Redundant dual power supplies (100–240 VAC, 50/60 Hz) |
| Sub-Category | Routers and Components |
| Product Title | TP-Link Omada ER8411 10G Multi-WAN Enterprise VPN Router (Rackmount) |
| Certifications | CE FCC RoHS |
| NAT Throughput | Up to 10 Gbps |
| Flash / Storage | 4 MB SPI NOR + 256 MB NAND |
| Maximum Clients | 1000+ |
| Ports (summary) | 2× 10G SFP+ (1 WAN, 1 WAN/LAN); 1× 1G SFP (WAN/LAN); 8× 1G RJ45 (WAN/LAN); 1× RJ45 Console; 2× USB 3.0 |
| SDN / Management | Omada SDN integration (Omada Hardware Controller, Omada Software Controller or Omada Cloud-based Controller), Zero-Touch Provisioning, centralized cloud management and Omada mobile app. Supports standalone (web UI) and controller modes. |
| Storage Humidity | 5–90% RH non-condensing |
| Surge Protection | 4 kV lightning protection |
| Power Consumption | 19.12 W (without USB 3.0 connected); 26.36 W (with USB 3.0 connected) |
| Security Features | SPI Firewall DPI / IPS / IDS DoS defense IP/MAC/URL/Keyword filtering IP-MAC Binding VLAN (802.1Q) One-Click ALG activation VPN Passthrough ALG for FTP/H.323/PPTP/SIP/IPsec |
| Enclosure Material | Steel |
| Operating Humidity | 10–90% RH non-condensing |
| Concurrent Sessions | 2,300,000 |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Dimensions (W x D x H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Form Factor / Enclosure | 1U rack-mountable, steel enclosure |
| New Sessions Per Second | 20,000 |
| VPN Protocols Supported | SSL IPSec PPTP L2TP OpenVPN WireGuard GRE L2TP over IPSec |
| Built-in VPN Capacities / Notes | Built-in VPN engine and hardware-accelerated VPN performance. (Sources list tunnel-capacity examples: up to 500 SSL VPN, 300 IPsec, 300 PPTP/L2TP, 110 OpenVPN tunnels.) |
| Network Technologies / Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q; 10/100/1000Base-T, 1000Base-X, 10GBase-X |
| Included Components / Package Contents | Omada 10G Multi-WAN Security Gateway ER8411 Power Cord Quick Installation Guide Rack-Mount Kit |
| Maximum WAN Ports (with load balancing) | Up to 10 WAN ports (mix of SFP+, SFP and RJ45) |
| VPN Throughput Examples (vendor-provided) | OpenVPN: 1,665.64 Mbps SSL VPN: 1,511.10 Mbps WireGuard: 1,411 Mbps L2TP Encrypted: 2,274.74 Mbps PPTP Encrypted: 952 Mbps L2TP Unencrypted: 5,013.50 Mbps PPTP Unencrypted: 10,143 Mbps IPSec (SHA1-AES256): 2,140.45 Mbps IPSec (SHA2-AES256): 2,080.20 Mbps |
TP-Link Omada VPN Router with 10G Ports, 5 Year WTY - (ER8411)
