Tp-Link Omada 24-Port Easy Managed Gigabit Switch, GbE(24), 5YR ES224G
SKU
427780
Brand
MPN
ES224G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$186.00
Buy Now And Earn 186 Reward Points!

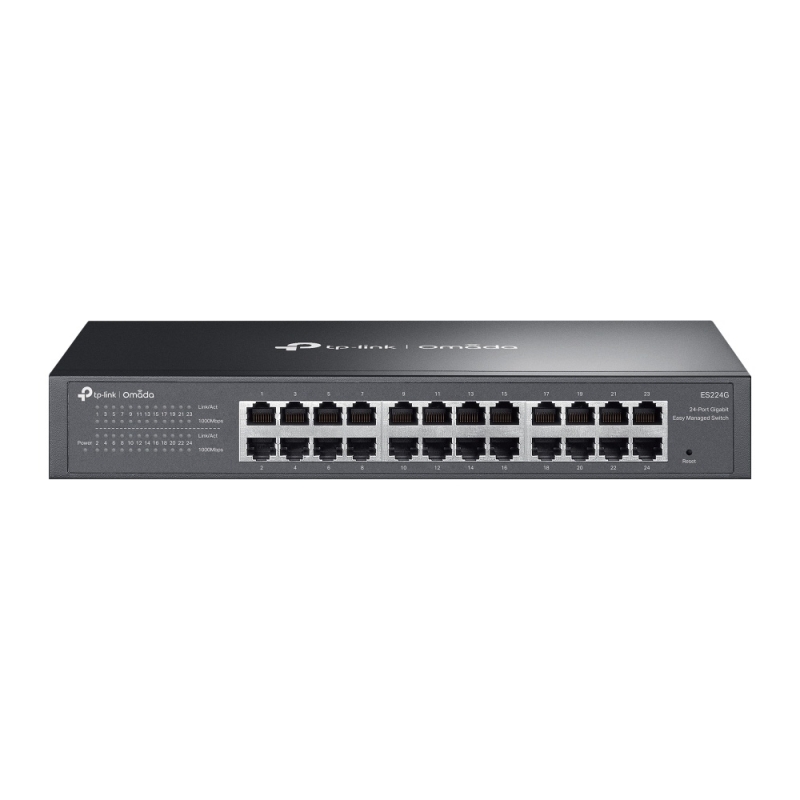

Omada 24-Port Gigabit Easy Managed Switch
-24× 10/100/1000Mbps RJ45 ports
-Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
-Centralised Cloud Management via the web or the Omada app†
-VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
-Automatic Loop Prevention and IGMP Snooping
-Fanless design for silent operation
-Durable metal casing and desktop/rack mounting design
-24× 10/100/1000Mbps RJ45 ports
-Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
-Centralised Cloud Management via the web or the Omada app†
-VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
-Automatic Loop Prevention and IGMP Snooping
-Fanless design for silent operation
-Durable metal casing and desktop/rack mounting design
| VLAN | Max 32 VLAN Groups |
| MANAGED | Easy Managed |
| MOUNTING | Desktop/Rackmountable |
| SECURITY | N/A |
| STACKING | N/A |
| WARRANTY | 5YR |
| INTERFACE | 24× 10/100/1000 Mbps RJ45 Ports |
| OMADA APP | Yes, Require Omada Controller |
| IN THE BOX | ES224G, Power Cord, Rubber Feet, Mounting Brackets, Screws, Installation Guide |
| JUMBO FRAME | 15 KB |
| CLOUD ACCESS | Yes, Require Omada Controller |
| FAN QUANTITY | Fanless |
| MAC ADDRESS TABLE | 8K |
| DIMENSIONS (WXDXH) | 294× 140 × 44 mm |
| POWER SUPPLY (POE) | N/A |
| SWITCHING CAPACITY | 48 Gbps |
| ACCESS CONTROL LIST | N/A |
| PRODUCT DESCRIPTION | Omada 24-Port Gigabit Easy Managed Switch |
| TRANSMISSION METHOD | Store and Forward |
| ADVANCED FUNCTIONS 1 | Static Link Aggregation |
| ADVANCED FUNCTIONS 2 | IGMP Snooping |
| ADVANCED FUNCTIONS 3 | Unified Configuration |
| ADVANCED FUNCTIONS 4 | Port-based/802.1p/DSCP QoS |
| PACKET BUFFER MEMORY | 4 Mbit |
| PACKET FORWARDING RATE | 35.7 Mpps |
Omada 24-Port Gigabit Easy Managed Switch
