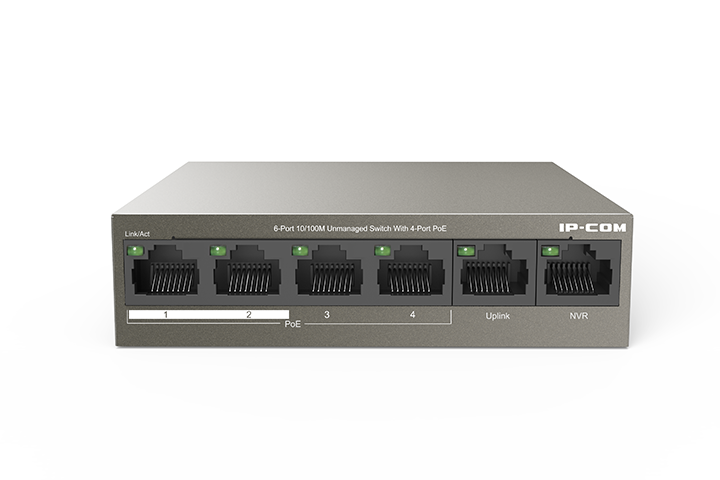

Ip-Com (F1106P-4-63W) 6-Ports 10/100Mbps PoE+ Switch With 4-PoE Ports, 6kv Lightning Protection F1106P-4-63W
SKU
382876
Brand
MPN
F1106P-4-63W
Warranty
Standard Manufacturer's Warranty
$58.00
Buy Now And Earn 58 Reward Points!
IP-COM F1106P-4-63W 6-Ports 10/100Mbps PoE+ Switch
• 4*10/100 Mbps PoE+ Ethernet Ports
• 2*10/100 Mbps Ethernet Ports
• 1 K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 1.2 Gbps backplane bandwidth
• Maximum power consumption of a single port:30W
• PoE Budget: 58W
• Supports extend mode and QoS function
• Desktop and wall-mounting, plug and play
• 4*10/100 Mbps PoE+ Ethernet Ports
• 2*10/100 Mbps Ethernet Ports
• 1 K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 1.2 Gbps backplane bandwidth
• Maximum power consumption of a single port:30W
• PoE Budget: 58W
• Supports extend mode and QoS function
• Desktop and wall-mounting, plug and play
| Type | Unmanaged PoE Switch |
|---|---|
| Brand | IP-COM |
| Model | F1106P-4-63W |
| Features | Auto PoE detection (PSE) Extend mode (one-key) — Ports 1-4 isolated and operate at 10 Mbps for extended reach up to 250 m VLAN/isolation behavior in extend mode QoS function (ports 1-2 support QoS priority) Plug-and-play Desktop and wall-mountable |
| Warranty | 1 Year |
| Condition | New |
| Data Rate | 10/100 Mbps (Fast Ethernet) |
| Indicators | 6 x Link/ACT LEDs, 1 x Power LED |
| Management | Unmanaged |
| PoE Pinout | Pins 1,2,4,5 = + ; Pins 3,6,7,8 = - |
| Description | The IP-COM F1106P-4-63W is an unmanaged 6-port Fast Ethernet switch with 4 IEEE 802.3af/at PoE ports and 2 uplink ports. Designed for small video surveillance and SMB deployments, it supports auto PoE identification, QoS, an extend mode (one-key switch) that can extend data and power up to 250 m at 10 Mbps, and VLAN/isolation behavior in extend mode. The switch provides up to 30 W per port and a device-level PoE budget/power supply consistent with the manufacturer specifications, plus surge and lightning protections, desktop and wall-mount installation, and plug-and-play operation. |
| Form Factor | Indoor / Desktop / Wall-mount |
| Power Input | AC 100-240V 50/60Hz; DC 51V 1.25A |
| Flow Control | IEEE 802.3x full-duplex flow control; half-duplex backpressure |
| Manufacturer | IP-COM |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Ports Detail | 4 x 10/100 Mbps Base-TX RJ45 (Data + PoE), 2 x 10/100 Mbps Base-TX RJ45 (uplink/data) |
| Uplink Ports | 2 x 10/100 Mbps RJ45 |
| Ports (total) | 6 |
| Product Title | IP-COM F1106P-4-63W — 6-Port 10/100 Mbps Unmanaged PoE Switch (4 PoE Ports) |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | China |
| MAC Address Table | 1 K entries |
| Operating Humidity | 10% to 90% non-condensing |
| Backplane Bandwidth | 1.2 Gbps |
| Protection & Safety | 6 kV lightning protection / port lightning protection PSE short-circuit protection PoE overload protection Surge current protection |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Standards & Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Maximum Power Per Port | 30 W |
| Forwarding / Packet Rate | 1.34 Mpps |
| Manufacturer Part Number | F1106P-4-63W |
| Power Consumption (device) | 63 W (full configuration) — manufacturer documents also list PoE power supply / budget as 58 W |
| PoE Budget / Max PoE Supply | 58 W |
| Physical Dimensions (W x D x H) | 100 x 100 x 26 mm |
| Maximum PoE Power Output (summary) | 63 W |
