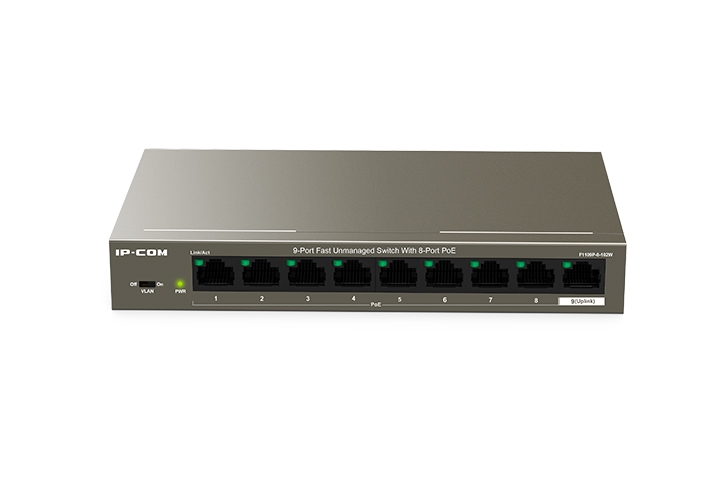

Ip-Com (F1109P-8-102W) 9-Port 10/100Mbps Unmanaged PoE+ Switch With 8-Port PoE+, 6kv Lightning Protection F1109P-8-102W
SKU
393624
Brand
MPN
F1109P-8-102W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
IP-COM F1109P-8-102W 9-Port 10/100Mbps Unmanaged PoE+ Switch
• 8*10/100 Mbps PoE+ Ethernet Ports
• 1*10/100 Mbps Ethernet Ports
• 2K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 1.8 Gbps exchange capacity
• Maximum power consumption of a single port:30W
• PoE Budget: 92W
• Supports VLAN isolation function
• Desktop and wall-mounting, plug and play
• 8*10/100 Mbps PoE+ Ethernet Ports
• 1*10/100 Mbps Ethernet Ports
• 2K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 1.8 Gbps exchange capacity
• Maximum power consumption of a single port:30W
• PoE Budget: 92W
• Supports VLAN isolation function
• Desktop and wall-mounting, plug and play
| SKU | F1109P-8-102W |
|---|---|
| VLAN | Hardware DIP VLAN mode (port isolation for ports 1-8) |
| Brand | IP-COM |
| Color | Grey |
| Model | F1109P-8-102W |
| Notes | Manufacturer datasheet and multiple listings report 92 W total PoE budget; some retail listings reference 102 W marketing power figure. |
| Ports | 9 (8 PoE ports + 1 non-PoE uplink) |
| Speed | 10/100 Mbps (Fast Ethernet) |
| Warranty | 1 year |
| Protection | Port inductive lightning protection up to 6 kV Surge & overvoltage protection |
| Description | The IP-COM F1109P-8-102W is a compact unmanaged Fast Ethernet switch with 9 x 10/100 RJ45 ports (8 PoE + 1 uplink). Ports 1–8 support IEEE 802.3af/at (PoE/PoE+) delivering up to 30W per port with a total PoE budget of 92W. The plug-and-play switch includes a hardware DIP VLAN/Standard mode selector, 6 kV port lightning protection, 1024 KB packet buffer, MAC address table for 2K entries, auto MDI/MDIX and 802.3x/full-duplex flow control. Designed for small offices, CCTV and VoIP deployments, it supports extended transmission up to 250 m with the vendor's extension technology, offers smart power management to prevent overload, and can be mounted on desktop or wall. Includes power adapter. 1-year manufacturer warranty. |
| Form Factor | Desktop; wall-mountable |
| Power Input | DC 51 V (external power adapter included) |
| Flow Control | 802.3x full-duplex; backpressure half-duplex |
| Intended Use | Small offices CCTV / IP surveillance VoIP / IP phones Wireless AP deployments |
| PoE Per Port | Supports IEEE 802.3af (up to 15.4 W) and IEEE 802.3at (up to 30 W) per port |
| Port Details | PoE Ports: Ports 1-8 Port Type: 10/100 Mbps RJ45 Uplink Port: Port 9 (non-PoE) |
| Product Type | Unmanaged Fast Ethernet PoE Switch |
| Auto Features | Auto MDI/MDIX MAC address learning and auto-aging |
| Packet Buffer | 1024 KB |
| Product Title | IP-COM F1109P-8-102W 9-Port Fast Unmanaged PoE Switch (8 PoE, 92W) |
| Power Management | Integrated smart power management chip; low-priority ports auto power-off when budget exceeded |
| MAC Address Table | 2000 entries |
| Network Management | Unmanaged (plug-and-play); hardware DIP switch for Standard/VLAN modes |
| Switching Capacity | 1.8 Gbit/s |
| Included Accessories | Power adapter |
| Standards/Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Alternate Model Names | Tenda TEF1109P-8-102W F1109P-8-102W-V1.0 |
| Transmission Distance | Supports extended transmission up to 250 m (vendor extension technology) |
| Dimensions (W x H x D) | 177.5 mm x 26 mm x 104 mm |
| PoE Total Power Budget | 92 W |
IP-COM (F1109P-8-102W) 9-Port 10/100Mbps Unmanaged PoE+ Switch with 8-Port PoE+, 6kv lightning protection
