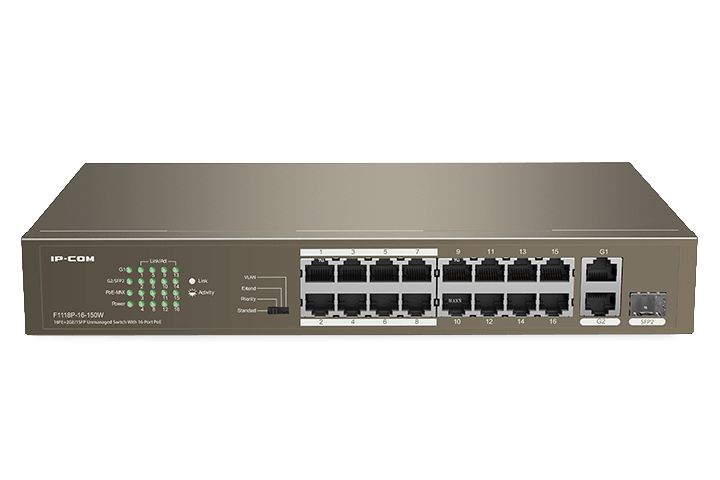

Ip-Com (F1118P-16-150Wv2.0) 16FE + 2Ge/1Sfp Unmanaged Switch With 16-Port PoE+, 6kv Lightning Protection F1118P-16-150W
SKU
390391
Brand
MPN
F1118P-16-150W
Warranty
Standard Manufacturer's Warranty
$226.00
Buy Now And Earn 226 Reward Points!
IP-COM F1118P-16-150W 16FE + 2GE/1SFP Unmanaged PoE+ Switch
• 16*10/100 Mbps PoE+ Ethernet Ports
• 2*10/100/1000 Mbps Ethernet ports
• 1*1000 Mbps Base-X SFP slot (Combo)
• 4 K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 7.2 Gbps backplane bandwidth
• Maximum power consumption of a single port: 30W
• PoE budget: 130W
• 2.75 Mb cache size for smooth video surveillance
• 4 modes: standard, priority, extend and VLAN
• Desktop and rack mounting
• 16*10/100 Mbps PoE+ Ethernet Ports
• 2*10/100/1000 Mbps Ethernet ports
• 1*1000 Mbps Base-X SFP slot (Combo)
• 4 K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 7.2 Gbps backplane bandwidth
• Maximum power consumption of a single port: 30W
• PoE budget: 130W
• 2.75 Mb cache size for smooth video surveillance
• 4 modes: standard, priority, extend and VLAN
• Desktop and rack mounting
| Brand | IP-COM |
|---|---|
| Model | F1118P-16-150W |
| Ports | SFP: 1 × 1000 Mbps (1.25G) SFP (combo) PoE Ports: 16 × 10/100 Mbps RJ45 (PoE) Uplink Ports: 2 × 10/100/1000 Mbps RJ45 (Gigabit) |
| Features | Unmanaged plug-and-play operation Hardware DIP switch to select working modes Combo SFP for fiber uplink Compact metal chassis Fanless (silent operation) — listed by some resellers |
| Mounting | Desktop Rack-mount |
| Warranty | Listed as 1 year by multiple sellers |
| Description | The IP-COM F1118P-16-150W is an unmanaged PoE switch designed for SMBs, hotels, schools and surveillance/ wireless deployments. It provides 16 IEEE 802.3af/at PoE-enabled 10/100 Mbps ports plus dual Gigabit uplinks and a combo SFP for flexible uplink options. The switch supports four hardware-selectable working modes (Standard, Priority, Extend/CCTV and VLAN) for simplified deployment, offers multiple protection features including 6 kV lightning protection and surge/short-circuit/overload protections, and includes a compact metal chassis with desktop or rack mounting. Key performance specs: 7.2 Gbps backplane, 2.75 Mb buffer, 4K MAC table and store-and-forward switching. |
| Certificates | CCC FCC CE RoHS |
| Flow Control | IEEE 802.3x full-duplex flow control; half-duplex backpressure |
| PoE Standard | IEEE 802.3af IEEE 802.3at |
| Product Type | Unmanaged Switch |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Product Title | IP-COM F1118P-16-150W 16-Port PoE Unmanaged Switch (16x10/100 PoE, 2x1G, 1xSFP) |
| Working Modes | VLAN: Ports 1–16 communicate only with uplinks (G1, G2/SFP2) and not with each other. Priority: G1 and G2/SFP2 uplinks; ports 1–8 set as high priority. Standard: Default unmanaged mode; all ports can communicate. Extend (CCTV): Ports 9–16 operate at 10 Mbps to extend PoE distance up to 250 m. |
| Buffer / Cache | 2.75 Mb |
| LED Indicators | Port LEDs: 16 × Link/Act Power LED: 1 × Power PoE Max LED: 1 × PoE-MAX Uplink LEDs: 1 × G1, 1 × G2/SFP2 |
| Forwarding Mode | Store-and-forward |
| MAC Address Table | 4 K |
| Backplane Bandwidth | 7.2 Gbps |
| Dimensions (L×W×H) | 294 × 178.8 × 44 mm |
| Maximum PoE per port | 30 W |
| Datasheet / Reference | Manufacturer and reseller datasheets referenced by sellers |
| Operating Environment | Storage Humidity: 5% – 90% RH (non-condensing) Operating Humidity: 10% – 90% RH (non-condensing) Storage Temperature: -40 °C to 70 °C Operating Temperature: 0 °C to 45 °C |
| Compliance / Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Packet Forwarding Rate | 5.36 Mpps |
| Protection / Safety Features | 6 kV lightning protection (port & power) PSE short-circuit protection PoE overload protection Surge / overvoltage protection Surge current protection |
| Maximum PoE power output (total) | 130 W |
| Maximum device power / PSU rating | 150 W |
IP-COM (F1118P-16-150Wv2.0) 16FE + 2GE/1SFP Unmanaged Switch With 16-Port PoE+, 6kv lightning protection
