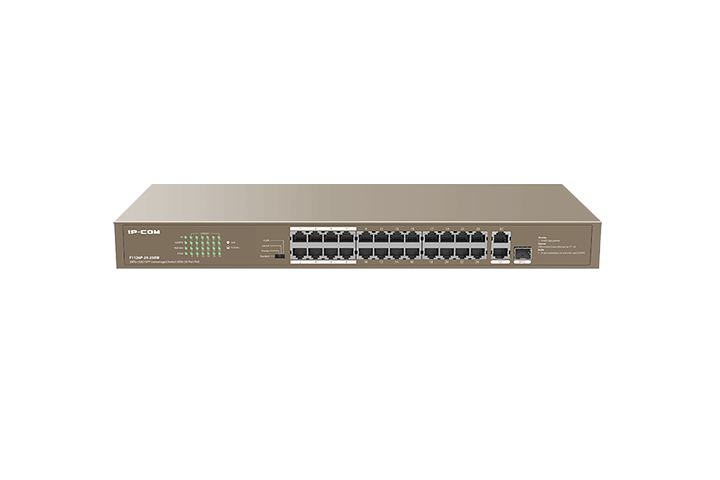

Ip-Com (F1126P-24-250W) 24Fe+2Ge/1Sfp Unmanaged Switch With 24-Port PoE+, 6kV Lightning Protection F1126P-24-250W
SKU
404212
Brand
MPN
F1126P-24-250W
Warranty
Standard Manufacturer's Warranty
$325.00
Buy Now And Earn 325 Reward Points!
IP-COM F1126P-24-250W 24FE+2GE/1SFP Unmanaged Switch With 24-Port PoE+
• 24*10/100Mbps PoE+ ports
• 2*10/100/1000Mbps Ethernet ports, 1*1000Mbps SFP(Combo)
• 6kV lightning protection
• Maximum power consumption of a single port: 30W
• PoE budget: 230W
• 4 modes: standard, priority, extend and VLAN
• Priority mode: ports 1 - 8 serve as high priority port for important area surveillance
• Extend mode: transmission distance of ports 17 - 24 up to 250 meters (10Mbps)
• VLAN mode: ports 1 - 24 can communicate with port G1, G2/SFP2, but isolated with each other
• Desktop and Rack mounting
• 24*10/100Mbps PoE+ ports
• 2*10/100/1000Mbps Ethernet ports, 1*1000Mbps SFP(Combo)
• 6kV lightning protection
• Maximum power consumption of a single port: 30W
• PoE budget: 230W
• 4 modes: standard, priority, extend and VLAN
• Priority mode: ports 1 - 8 serve as high priority port for important area surveillance
• Extend mode: transmission distance of ports 17 - 24 up to 250 meters (10Mbps)
• VLAN mode: ports 1 - 24 can communicate with port G1, G2/SFP2, but isolated with each other
• Desktop and Rack mounting
| Brand | IP-COM |
|---|---|
| Model | F1126P-24-250W |
| Notes | Unmanaged Layer 2 switch, designed for powering APs, IP cameras and IP phones. Some vendor listings show differing warranty or PoE-budget figures; PoE budget used here reflects the majority of sources. |
| Ports | 24 x 10/100 Mbps RJ45 PoE ports (Data/Power); 2 x 10/100/1000 Mbps RJ45 uplink ports; 1 x 1000 Mbps Base-X SFP slot (combo) |
| Uplink | 2 x Gigabit RJ45 uplinks; 1 x Gigabit SFP (combo) |
| Category | Networking |
| Mounting | Rack-mountable (rack mount kit included on some SKUs) |
| Description | The IP-COM F1126P-24-250W is an unmanaged PoE+ switch offering 24 x 10/100 Mbps PoE ports plus 2 x 10/100/1000 Mbps Gigabit uplink ports and 1 x 1000 Mbps SFP combo slot. Compliant with IEEE 802.3af/at PoE standards, it delivers up to 30 W per port with a total PoE budget of 230 W and supports four hardware-selectable modes (Standard, Priority, Extend, VLAN) for flexible deployment. With an 8.8 Gbps switching capacity, 16K MAC table, 4 Mb buffer, 6 kV lightning protection and rack-mountable metal enclosure, it is suited for SMBs, hotels, schools and surveillance/wireless networks. |
| Power Input | AC 100-240 V~, 50/60 Hz |
| Protections | 6 kV lightning protection; PSE short-circuit protection; PoE overload protection; surge current / short-circuit protection |
| Flow Control | IEEE 802.3x full-duplex; half-duplex backpressure |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Sub-Category | Switches and Hubs |
| Product Title | IP-COM F1126P-24-250W 24-Port PoE+ Unmanaged Switch (230W PoE, 2 x Gigabit Uplink, 1 x SFP Combo) |
| Working Modes | Standard, Priority, Extend, VLAN (selectable via hardware DIP switch). In Extend mode ports 17–24 operate at 10 Mbps for up to 250 m; VLAN mode isolates ports 1–24 from each other while allowing communication with uplinks. |
| Certifications | CCC, FCC, CE, RoHS |
| LED Indicators | 24 x Link/Act LEDs; 1 x G1 LED; 1 x G2/SFP LED; 1 x PoE-MAX LED; 1 x Power LED |
| Forwarding Mode | Store-and-forward |
| Storage Humidity | 5% – 90% RH (non-condensing) |
| MAC Address Table | 16K entries |
| Operating Humidity | 10% – 90% RH (non-condensing) |
| PoE Budget (Total) | 230 W |
| Buffer / Cache Size | 4 Mb |
| Storage Temperature | -40°C to 70°C |
| Included Accessories | Power cord; rack mount kit; quick installation guide (reported by reseller) |
| Operating Temperature | 0°C to 45°C |
| Dimensions (L x W x H) | 440 mm x 178.8 mm x 44 mm |
| Packet Forwarding Rate | 6.55 Mpps |
| Store / Shipping Weight | 2.90 kg (reported by reseller) |
| PoE Power Per Port (Max) | 30 W |
| Maximum Power (Switch / PSU) | 250 W |
| Switching Capacity / Backplane | 8.8 Gbps |
IP-COM (F1126P-24-250W) 24FE+2GE/1SFP Unmanaged Switch With 24-Port PoE+, 6kV lightning protection
