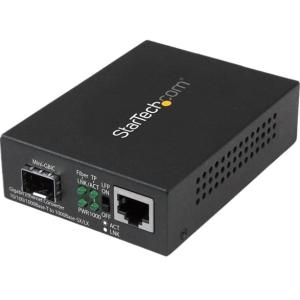

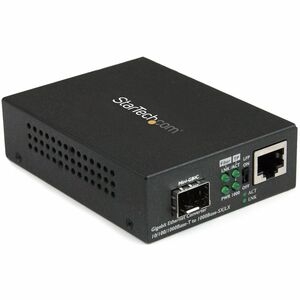

Startech Fiber Media Converter With Open Sfp Slot Mcm1110sfp
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice. This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
A cost-effective extension and flexible performance
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements.
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| SFP Slot Female | |
| Environmental | |
| Humidity | 5~95% RH (Non-condensing) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3z 1000BASE-LX | |
| IEEE 802.3z 1000BASE-SX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | 1000 Mbps |
| Copper Port Link/Act | |
| Fiber Port Link/Act | |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 489 g [17.3 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Multi Mode |
| Single Mode | |
| Maximum Data Transfer Rate | 1 Gbps |
| MTBF | > 50,000 hours at 25?C |
| Physical Characteristics | |
| Color | Brown |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 185 g [6.5 oz] |
| Product Width | 70 mm [2.8 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Fiber data transfer speeds and distances are dependent on the SFP transceiver used (sold separately) |
| What's in the Box | |
| Included in Package | Gigabit Ethernet fiber media converter w/ open SFP slot |
| universal power adapter (NA/EU/UK/AU) | |
This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
A cost-effective extension and flexible performance
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
