Startech Usb C To Fiber Optic Converter - Open Sfp - 1000base-sx/lx - Windows / Mac / Linux - Usb
QUICK OVERVIEW
Overview

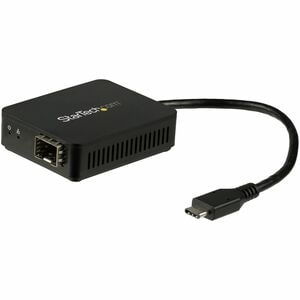

This USB-C™ to fiber-optic converter lets you utilize the USB 3.0 (Type-C™) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a Gigabit Ethernet (1000 Mbps) optical network connection for portable laptops or tablets, or systems without expansion slots.
A flexible solution with an open SFP slot
The open SFP slot enables you to use your preferred SFP transceiver module to meet your networking needs - use an SFP with your desired wavelength, distance, connection type to achieve an efficient network solution. (SFP sold separately.)
Secure fiber-to-the-desk connectivity
This USB to fiber-optic converter provides reliable fiber connectivity, while protecting your network from problems with electronic interference - a common issue with RJ45 networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks for sensitive information, without compromising network speed and reliability.
Easy portability
Compact and portable, this USB-C to fiber-optic converter is powered directly from the USB port.
Plug and play
Get up and running quickly. The USB to fiber-optic converter supports certified drivers for Windows, Mac and Linux®. Once the adapter is plugged into a USB-C port, you simply install the drivers and the adapter is ready to transmit over a fiber network.
The US1GC30SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
PRODUCT NUMBERS | ||
---|---|---|
TechData Dis | 13127234 | |
ASI | 214386 | |
D and H | US1GC30SFP | |
Ingram Micro USA | 3BM083 | |
Synnex US | STA-US1GC30SFP | |
UPC Code | 065030875042 |
WARRANTY INFORMATION | ||
---|---|---|
Warranty | 2 Years | |
HARDWARE | ||
Bus Type | USB-C | |
Chipset ID | Realtek - RTL8153-VB-CG Microsemi - VSC8211XVW | |
Industry Standards | IEEE802.3z 1000BASE-SX/LX IEEE 802.1Q VLAN tagging | |
Interface | Fiber Ethernet | |
Ports | 1 | |
PERFORMANCE | ||
Compatible Networks | 1000 Mbps (1 Gbps) | |
Full Duplex Support | Yes | |
Jumbo Frame Support | 9K max. | |
Maximum Data Transfer Rate | 1000 Mbps | |
Promiscuous Mode | Yes | |
CONNECTOR(S) | ||
Connector Type(s) | 1 - USB Type-C (24 pin) USB 3.0 Female | |
External Ports | 1 - SFP Slot Female | |
SOFTWARE | ||
OS Compatibility | Windows® 7, 8, 8.1, 10 Windows® Server 2008, 2012, 2016 macOS 10.9 - 10.13 Linux® kernel 3.5 to 4.11.x, LTS versions only | |
INDICATORS | ||
LED Indicators | 1 - Power | |
1 - Link/Activity | ||
POWER | ||
Power Source | USB-Powered | |
ENVIRONMENTAL | ||
Humidity | 5% ~ 90% RH | |
Operating Temperature | 0°C ~ 60°C (32° ~ 140°F) | |
Storage Temperature | -10° ~ 70°C (14° ~ 158°F) | |
PHYSICAL CHARACTERISTICS | ||
Cable Length | 7.7 in [195 mm] | |
Color | Black | |
Enclosure Type | Plastic | |
Product Height | 0.8 in [20 mm] | |
Product Length | 10.2 in [260 mm] | |
Product Weight | 1.7 oz [48 g] | |
Product Width | 2.2 in [55 mm] | |
PACKAGING INFORMATION | ||
Shipping (Package) Weight | 3.7 oz [104 g] | |
WHAT'S IN THE BOX | ||
Included in Package | 1 - network adapter | |
1 - quick-start guide |
