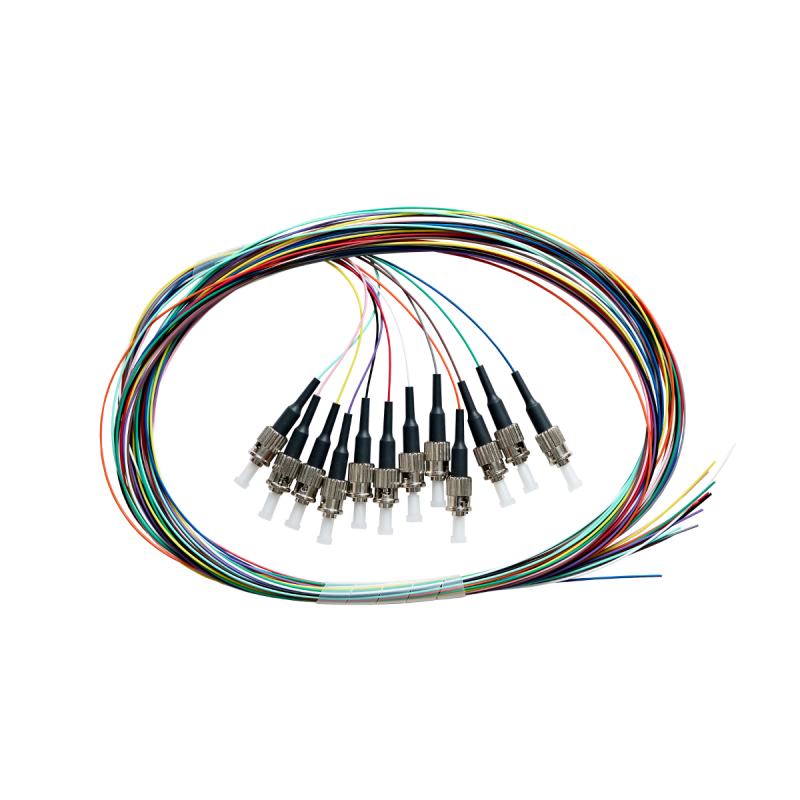

Fibre Pigtail St Om4 Multimode 2M. 12 Pack. Rainbow. Backward Compatible With Om3 015.012.1404

SKU
278630
Brand
MPN
015.012.1404
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $73.00 Regular Price $74.00
Buy Now And Earn 73 Reward Points!

DETAILS

FIBRE PIGTAIL ST OM4 MULTIMODE 2M. BACKWARD COMPATIBLE WITH OM3. 12 PACK. RAINBOW

4Cabling supplies a large range of fibre optic pigtails for splicing.

4Cabling's ST Fibre 12 Pack Rainbow OM4 Multimode Pigtails (backward compatible with OM3) are used to connect high-speed networks like gigabit ethernet, fast ethernet and ethernet. The multimode pigtail buffer conforms to IEC, EIA TIA and Telcordia standards and is terminated with standard connectors which give optimum optical performance.

These packs of 12 colour coded pigtail leads are used in patch panel terminations, with the fibre end of the pigtail being spliced onto the fibre run, and the connector is inserted in a coupler/adaptor on the patch panel.

The connector on the pigtail has been pre-tested and certified in a controlled environment. This eliminates connector installation in the field which has major issues with regard to quality control and testing.

FEATURES

  • Supports high-speed multi-channel data, voice & video applications
  • Networks including Ethernet, Fast Ethernet and GBE
  • The colours are the same as international standard multi-core fibre cables.
  • Internal interconnect
  • The outside diameter of fibre jacket is 900µm
  • UPC (Ultra Physical Contact) Connector
  • Ideal for a wide range of telecom, datacom and process control applications where ruggedisation is required.
  • UL approved fibre optic cables
  • Conforms to ISO/ IEC 11801

FIBRE SPECIFICATIONS

  • Mode: OM4 Multimode
  • Fibre Terminations: ST
  • Length: 2m
  • Colour: 12 Pack Rainbow

WARRANTY

  • 3-year limited warranty.

SPECIFICATIONS

Crush (N) 1000
Simplex/Duplex Duplex
Strength Member Aramid
Typical Insertion Loss
Max. Insertion Loss
Tensile Load 7.0kg
Bend Radius 3.8cm
Operating Temperature (C°) minus 20° to 60°
Attenuation (dB) 2.8 @ 850nm/0.8 @ 1310nm
Bandwidth OFL (MHz x km) 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm
IL RL<0.25dB
UPC Singlemode >55dB
UPC Multimode RL>35dB
APC RL>65
