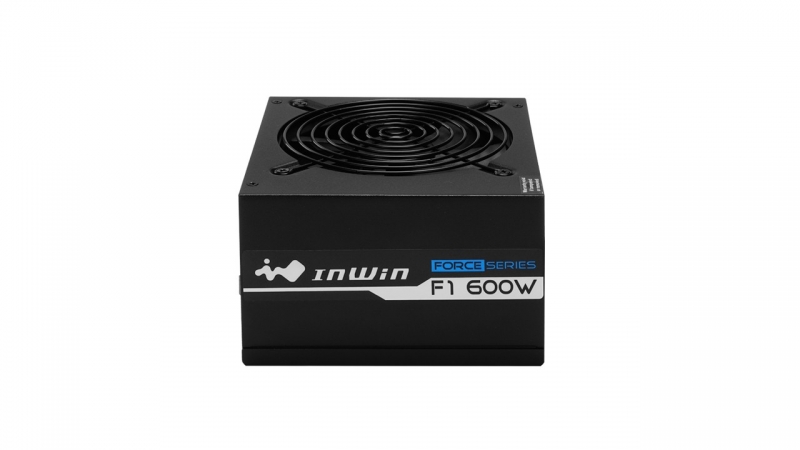

In Win Force Series 600W 80+ Bronze Certified Psu 3 Years Warranty F1-600

SKU
273840
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
F1-600W

Quality with Maximum Efficiency

The Force Series power supplies features a strengthened SECC steel enclosure with a clean black finish. Which process up to 85% transition rate and received an 80 PLUS Bronze certification.

Stable Transfer Efficiency Performance

The Force Series PSUs have a voltage transfer efficiency of 85% with 80 PLUS Bronze. Additionally, the system design provides consistent operation while maintaining a secure and dependable performance.

Smart Fan Control for Silent Cooling

The fan speeds only operates as fast as it needs to, and aims to provide a quiet operating environment for computer users.

5V and 3.3V DC to DC Design

Force Series’ DC to DC converter design provides a superior dynamic response, and supports a foundation for greater system stability.

Safety Certifications




Specifications

Model F1-600W
Part Number IW-F1-600
Total Power 600W
Material SECC
Type ATX12V V2.4
Cable Management Fixed Cable
PFC Active PFC
Efficiency 80 PLUS Bronze (up to 85%)
MTBF (Hours) >100,000
AC Input 115-230Vac, 50-60Hz
Hold-up time (ms) >16ms
Fan 120mm Sleeve
Typical Fan Noise(dB) <25dB
Operating Temperature Range (°C) 0-40°C
Full Protection OCP / OVP / UVP / SCP / OTP / OPP
Safety Certifications TUV / cTUVus / BSMI / CB / CE / FCC / EAC / RCM
Dimensions
(L x W x H)
140 x 150 x 86mm
Package Dimensions
(L x W x H)
215 x 240 x 105mm
Net Weight 1.74 kg
Gross Weight 2.2 kg
Warranty 3 Years
Connectors 24 Pin Motherboard 1
8 (4+4)-Pin CPU 1
8 (6+2)-Pin PCI-E 2
4 Pin Peripheral 3
SATA 6
Floppy Power 1
