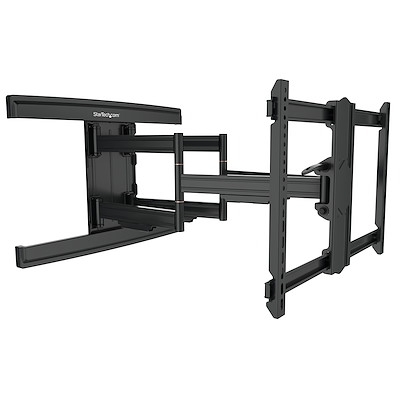

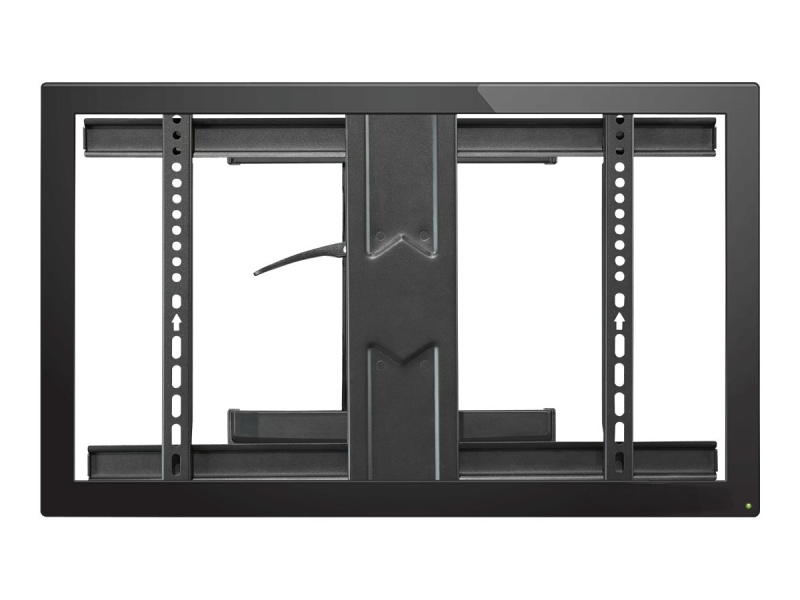

STARTECH TV WALL MOUNT, UP TO 100", FULL MOTION, VESA, 5YR FPWARTS2
LARGE 100" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100 inch (165 lb/75 kg) w/ a durable full-motion steel frame and a powder-coated finish
WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-60° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.9" (75 mm) from wall or extend to 31.7" (805 mm)
LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 47"/1.2m from left to right
COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, among others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
TIDY AESTHETIC: The adjustable tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage
Warranty Information
Warranty
5 Years
Hardware
Articulating
Yes
Cable Management
Yes
# of Displays Supported
1
Mounting Options
Wall-Mount
Minimum Profile from Wall
2.8 in [70 mm]
Wallmountable
Yes
VESA Hole Pattern(s)
200x100 mm
200x200 mm
200x300 mm
200x400 mm
300x200 mm
300x300 mm
400x200 mm
400x300 mm
400x400 mm
600X200 mm
600x300 mm
600x400 mm
Packaging Information
Package Height
3.9 in [10.0 cm]
Package Length
21.7 in [55.0 cm]
Shipping (Package) Weight
41.6 lb [18.8 kg]
Package Width
36.4 in [92.5 cm]
Package Quantity
1
Performance
General Specifications
Screen Level Adjustment: +3° / -3°
Weight Capacity (Per Display)
165.4 lb [75 kg]
Minimum Display Size
37"
Maximum Display Size
100"
Fits Curved Display
Yes
Minimum Arm Extension
3.0 in [75 mm]
Maximum Arm Extension
31.7 in [805 mm]
Display Tilt
+2° / -15°
Display Swivel
+60° / -60°
Swivel / Pivot
+90° / -90°
Display Rotation
+3° / -3°
Physical Characteristics
Product Height
19.2 in [48.7 cm]
Product Length
26.4 in [67.0 cm]
Weight of Product
37.0 lb [16.8 kg]
Product Width
31.5 in [80.0 cm]
Color
Black
Material
Steel
What's in the Box
Included in Package
1 - TV Wall Mount Assembly
1 - Wall Mounting Bracket
2 - TV Mounting Brackets
2 - Decorative Covers
2 - Mounting Plates
7 - M6 x 15 screws
7 - Round Washers, Small
1 - Wrench
1 - Hex Key
4 - M5 x 14 Screws
4 - M6 x 14 Screws
4 - M6 x 30 Screws
4 - M8 x 30 Screws
4 - M8 x 50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Large Spacers
6 - Mounting Screws
6 - Wall Anchors
6 - Round Washers, Large
1 - User Manual
