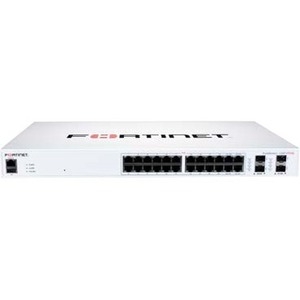

Fortinet FortiSwitch 124F-FPOE 24 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - 370 W PoE Budget - FS-124F-FPOE
QUICK OVERVIEW
FortiSwitch™ Secure Access Family
The FortiSwitchTM Secure Access Family delivers outstanding security,
performance, and manageability. Secure, simple, and scalable, FortiSwitch is the
right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch
can be managed directly from the familiar FortiGate interface. This single pane
of glass management provides complete visibility and control of users and
devices on the network regardless of how they connect. This makes the
FortiSwitch ideal for SD-Branch deployments with applications that range from
desktop to data center aggregation, enabling businesses to converge their
security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our
FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch.
FortiLink enables the FortiSwitch to become a logical extension of the
FortiGate, integrating it directly into the Fortinet Security Fabric. This
management option reduces complexity and decreases management costs as network
security and access layer functions are enabled and managed through a single
console. FortiLink integration enables centralized policy management, including
role-based access and control, making it easy to implement and manage. This
control and manageability make FortiSwitch ideal for SD-Branch deployments.
Manageable | Yes |
Layer Supported | 2 |
Expansion Slot Type | SFP+ |
Number of Total Expansion Slots | 4 |
Number of SFP+ Slots | 4 |
Modular | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
4 x 10 Gigabit Ethernet Expansion Slot |
Network Technology | 10GBase-X |
10/100/1000Base-T | |
Ethernet Technology | Gigabit Ethernet |
10 Gigabit Ethernet | |
Media Type Supported | Optical Fiber |
Twisted Pair |
Weight (Approximate) | 3.82 kg |
Form Factor | Rack-mountable |
Height | 44 mm |
Width | 330 mm |
Depth | 260 mm |
Compatible Rack Unit | 1U |
Input Voltage | 120 V AC |
230 V AC | |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | No |
PoE Budget | 370 W |
Product Type | Ethernet Switch |
Manufacturer Part Number | FS-124F-FPOE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | 124F-FPOE |
Product Name | FortiSwitch 124F-FPOE Ethernet Switch |
Product Line | FortiSwitch |
Product Series | 100 |
Brand Name | Fortinet |
