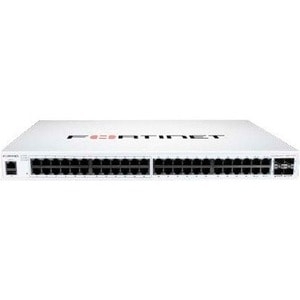

Fortinet FortiSwitch FS-148F-POE 48 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - 370 W PoE Budget
QUICK OVERVIEW
The FortiSwitch™ Secure
Access Family delivers outstanding security, performance, and manageability.
Secure, simple, and scalable, FortiSwitch is the right choice for
threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch
can be managed directly from the familiar FortiGate interface. This single pane
of glass management provides complete visibility and control of users and
devices on the network regardless of how they connect. This makes the
FortiSwitch ideal for SD-Branch deployments with applications that range from
desktop to data center aggregation, enabling businesses to converge their
security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our
FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch.
FortiLink enables the FortiSwitch to become a logical extension of the
FortiGate, integrating it directly into the Fortinet Security Fabric. This
management option reduces complexity and decreases management costs as network
security and access layer functions are enabled and managed through a single
console. FortiLink integration enables centralized policy management, including
role-based access and control, making it easy to implement and manage. This
control and manageability make FortiSwitch ideal for SD-Branch deployments.
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Layer Supported | 2 |
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 4 |
| Number of SFP+ Slots | 4 |
| Modular | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet Network | |
| 24 x Gigabit Ethernet PoE |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 476.30 W |
| Number of Power Supplies Supported | 1 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
| PoE Budget | 370 W |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Weight (Approximate) | 4.68 kg |
| Form Factor | Rack-mountable |
| Height | 43.9 mm |
| Width | 439.9 mm |
| Depth | 309.9 mm |
| Compatible Rack Unit | 1U |
| Product Type | Ethernet Switch |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | FS-148F-POE |
| Product Name | FortiSwitch 100 FS-148F-POE Ethernet Switch |
| Product Line | FortiSwitch |
| Product Series | 100 |
| Brand Name | Fortinet |
