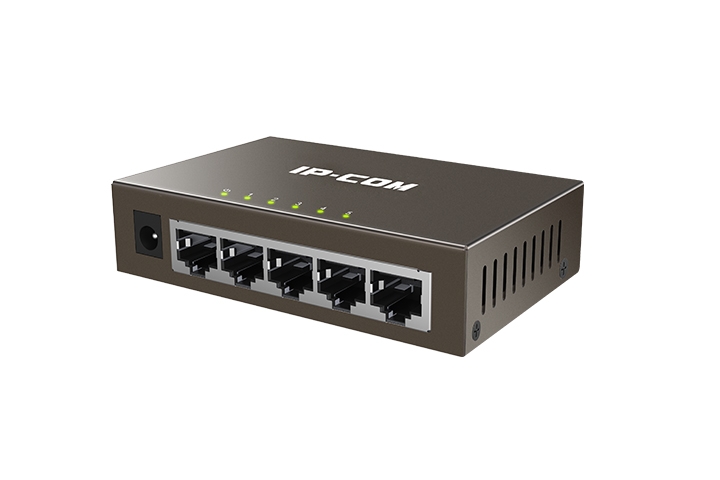

Ip-Com (G1005) 5-Port Gigabit Desktop Switch, 6kv Lightning Protection G1005
SKU
380956
Brand
MPN
G1005
Warranty
Standard Manufacturer's Warranty
$35.00
Buy Now And Earn 35 Reward Points!
IP-COM G1005 5-Port Gigabit Desktop Switch
• 5 10/100/1000Mbps auto-negotiation ports
• 6kv lightning protection
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
• Supports MAC address self-learning and auto MDI/MDIX
• Supports full-duplex 802.3x flow control and half-duplex backpressure flow control
• Desktop or wall mounting Design , steel case
• Ideal for SMB, hotel, and video surveillance
• 5 10/100/1000Mbps auto-negotiation ports
• 6kv lightning protection
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
• Supports MAC address self-learning and auto MDI/MDIX
• Supports full-duplex 802.3x flow control and half-duplex backpressure flow control
• Desktop or wall mounting Design , steel case
• Ideal for SMB, hotel, and video surveillance
| MPN | SWTIPC080 |
|---|---|
| SKU | G1005 |
| Brand | IP-COM |
| Color | Gold |
| Model | G1005 |
| Ports | 5 x 10/100/1000 Mbps RJ45 (auto-negotiation) |
| Weight | 0.277 kg |
| Fanless | Yes |
| Barcodes | 6932392831389 6932392831426 |
| Mounting | Desktop or wall-mount |
| Warranty | 5 years |
| Description | The IP-COM G1005 is a compact, fanless 5-port Gigabit unmanaged Layer 2 desktop switch designed for fast, reliable wired access in small offices, hotels and surveillance deployments. It provides five 10/100/1000 Mbps auto-negotiation RJ45 ports with wire-speed, non-blocking forwarding, auto MAC address learning and auto MDI/MDIX. The steel chassis improves heat dissipation and stability, and integrated lightning protection (up to 6 kV common-mode) helps protect ports from severe weather. Plug-and-play, desktop or wall-mountable, and compliant with IEEE 802.3/802.3u/802.3x/802.3ab standards. |
| Power Input | DC 5V, 600 mA |
| Flow Control | 802.3x full-duplex flow control; half-duplex backpressure flow control |
| Product Type | 5-Port Gigabit Unmanaged Desktop Layer 2 Switch |
| Auto MDI/MDIX | Yes |
| Product Title | IP-COM G1005 5-Port Gigabit Unmanaged Desktop Switch |
| Certifications | CE FCC RoHS |
| MAC Table Size | 2,048 entries |
| Chassis Material | Steel |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | China |
| Power Supply Type | External |
| SFP / Fiber Ports | None |
| Switch Management | Unmanaged |
| Ethernet Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Temperature | -40 °C to 70 °C |
| Included Accessories | External power (DC 5V) supply required (power adapter specification: DC 5V, 600 mA) |
| Lightning Protection | Port lightning protection, common-mode up to 6 kV |
| Number of RJ-45 Ports | 5 |
| Operating Temperature | 0 °C to 40 °C |
| Wire-speed Forwarding | Full wire-speed non-blocking forwarding |
| Dimensions (L x W x H) | 100 mm x 64 mm x 25 mm |
| Auto MAC Address Learning | Yes |
| Intended Use / Applications | SMBs, hotels, video surveillance, small office/home office (SOHO) |
| Alternate Model / Supplier Code | ICIP-G1005 |
