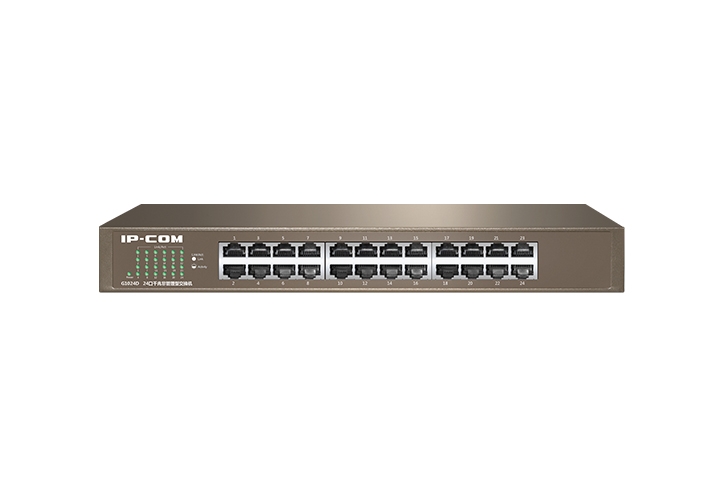

Ip-Com (G1024D) 24-Port Gigabit Unmanaged Switch, 6kv Lightning Protection G1024Dv7.0
SKU
408022
Brand
MPN
G1024Dv7.0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$129.00
Buy Now And Earn 129 Reward Points!
IP-COM G1024 24-Port Gigabit Unmanaged Switch
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab standards
• 24*10/100/1000 Mbps Ethernet ports
• 8K MAC address and MAC auto Learning & Auto Aging
• IEEE 802.3x full duplex flow control, and backpressure half duplex flow control
• 48 Gbps switching fabric for non-blocking line-speed forwarding
• LED indicators for indicating working status and troubleshooting
• 6 kV lightning protection
• Desktop or rack mounting
• Plug and play
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab standards
• 24*10/100/1000 Mbps Ethernet ports
• 8K MAC address and MAC auto Learning & Auto Aging
• IEEE 802.3x full duplex flow control, and backpressure half duplex flow control
• 48 Gbps switching fabric for non-blocking line-speed forwarding
• LED indicators for indicating working status and troubleshooting
• 6 kV lightning protection
• Desktop or rack mounting
• Plug and play
| MPN | G1024Dv7.0 |
|---|---|
| SKU | G1024Dv7.0 |
| Brand | IP-COM |
| Model | G1024Dv7.0 |
| Notes | Plug-and-play unmanaged switch suitable for IP camera connections and general Gigabit Ethernet deployments. |
| Ports | 24 x 10/100/1000 Mbps RJ45 ports |
| Weight | 0.03 kg |
| Category | Networking |
| Warranty | Standard Manufacturer's Warranty |
| Interface | RJ45 |
| Description | The IP-COM G1024Dv7.0 is a 24-port unmanaged Gigabit Ethernet switch delivering non-blocking line-speed forwarding with a 48 Gbps switching fabric. It provides 24 auto-negotiation 10/100/1000 Mbps RJ45 ports with Auto MDI/MDIX, an 8K MAC address table with auto learning and aging, IEEE 802.3/802.3u/802.3x/802.3ab compliance, and robust lightning protection for both ports and power. The plug-and-play design supports desktop or rack mounting, LED status indicators, IEEE 802.3x full-duplex flow control (and backpressure for half duplex), and wide operating and storage temperature ranges. |
| Power Input | 100–240V AC, 50/60 Hz |
| Switch Type | Unmanaged |
| Flow Control | IEEE 802.3x full duplex; backpressure for half duplex |
| Sub-Category | Switches and Hubs |
| Port Features | Auto-negotiation, Auto MDI/MDIX |
| Product Title | IP-COM G1024Dv7.0 24-Port Gigabit Unmanaged Switch (6 kV Lightning Protection) |
| LED Indicators | 24 x Link/Act, 1 x Power |
| Mounting Options | Desktop or rack mounting |
| Switching Method | Store-and-Forward |
| MAC Address Table | 8K (8000) entries, auto learning & auto aging |
| Transmission Media | 10BASE-T: UTP Cat3/4/5; 100BASE-TX/1000BASE-T: UTP Cat5/5e or above |
| Storage Environment | Humidity: 5% to 90% non-condensing Temperature: -40°C to 70°C |
| Supported Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab |
| Lightning Protection | Built-in power supply: 6 kV common mode and 4 kV differential mode; 24 ports with 6 kV common mode protection |
| Forwarding Rate (pps) | 10 Mbps: 14880 100 Mbps: 148800 1000 Mbps: 1488000 |
| Operating Environment | Humidity: 10% to 90% non-condensing Temperature: 0°C to 45°C |
| Dimensions (W x D x H) | 297 mm x 178 mm x 44 mm |
| Manufacturer Part Number | G1024Dv7.0 |
| Backplane / Switching Capacity | 48 Gbps |
IP-COM (G1024D) 24-Port Gigabit Unmanaged Switch, 6kv lightning protection
