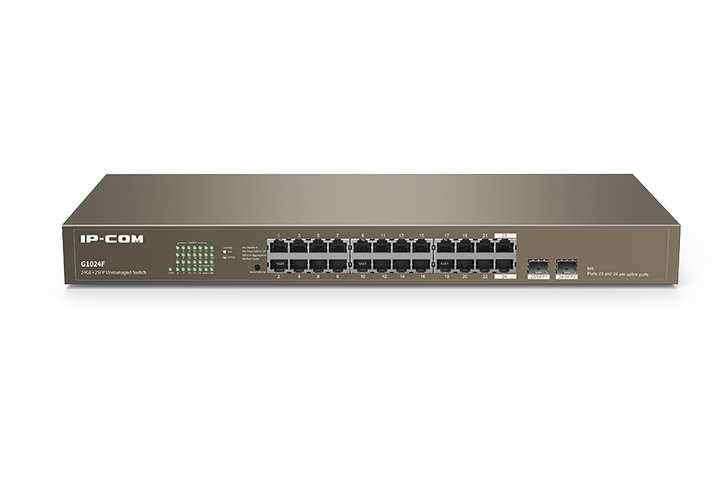

Ip-Com (G1024F) 24GE + 2SFP Gigabit Unmanaged Switch, 6kv Lightning Protection G1024F
SKU
388509
Brand
MPN
G1024F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$161.00
Buy Now And Earn 161 Reward Points!
IP-COM G1024F 24GE + 2SFP Gigabit Unmanaged Switch
• 24 10/100/1000Mbps Ethernet ports, 2 Gigabit combo SFP slots
• 48Gbps Switching Capacity
• Supports MAC address self-learning and auto MDI/MDIX
• Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
• Supports 8K MAC address list, MAC address learning and auto-ageing
• 6kv Lightning Protection
• 4 Network Modes( Standard, Flow Control, Link aggregation, Port VLAN）
• Standard 19-inch rack-mountable, 1U steel case
• Plug and play, no need configuration
• 24 10/100/1000Mbps Ethernet ports, 2 Gigabit combo SFP slots
• 48Gbps Switching Capacity
• Supports MAC address self-learning and auto MDI/MDIX
• Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
• Supports 8K MAC address list, MAC address learning and auto-ageing
• 6kv Lightning Protection
• 4 Network Modes( Standard, Flow Control, Link aggregation, Port VLAN）
• Standard 19-inch rack-mountable, 1U steel case
• Plug and play, no need configuration
| Brand | IP-COM |
|---|---|
| Color | Gold (reported on one listing) |
| Layer | Layer 2 |
| Model | G1024F |
| Notes | Values and some fields (color, warranty length) are reported differently across sources and are included here as reported; no availability or pricing information is provided. |
| Weight | 2.55 kg |
| Chipset | Marvell (reported) |
| Category | Networking |
| Features | Plug-and-play, no configuration required MAC address self-learning and auto-aging Auto MDI/MDIX One-button mode switch LED status indicators Store-and-forward switching |
| Mounting | Rack-mountable (19") and desktop |
| Warranty | Reported values vary by supplier: 12 months / 36 months / 5 years |
| SFP Slots | 2 x Gigabit combo SFP uplink ports |
| Management | Unmanaged |
| Port Speed | 10/100/1000 Mbps |
| RJ45 Ports | 24 x 10/100/1000 Mbps (auto-negotiation, auto MDI/MDIX) |
| Description | The IP-COM G1024F is a Layer 2 unmanaged gigabit switch designed for fast, energy-efficient wired access in SMBs, hotels and video surveillance deployments. It provides 24x 10/100/1000 Mbps RJ45 ports plus 2x combo Gigabit SFP uplink ports, a Marvell-based switching engine, an all-steel chassis for improved heat dissipation, and integrated lightning protection for power and ports. The one-button mode selector supports four operating modes (Standard, Flow Control, Link Aggregation, Port VLAN) for flexible deployment. The switch is plug-and-play with MAC address self-learning, auto MDI/MDIX, full-duplex 802.3x flow control and half-duplex backpressure support. |
| Form Factor | 19" rack-mountable (1U) and desktop |
| Power Input | AC 100-240 V, 50/60 Hz |
| Flow Control | Full-duplex 802.3x and half-duplex backpressure |
| Power Supply | Built-in switching power adapter |
| Sub-Category | Switches and Hubs |
| Buffer Memory | 12 Mb |
| Network Modes | Standard Flow Control Link Aggregation Port VLAN |
| Product Title | IP-COM G1024F 24-Port Gigabit Unmanaged Switch with 2 Combo SFP |
| Certifications | CE (reported) RoHS (reported) |
| Number of Ports | 24 |
| Chassis Material | All-steel shell |
| Storage Humidity | 5% to 90% (non-condensing) |
| Country of Origin | China (reported) |
| MAC Address Table | 8K (≈8,192 entries) |
| Power Consumption | < 20 W |
| Operating Humidity | 10% to 90% (non-condensing) |
| Switching Capacity | 48 Gbps |
| Storage Temperature | -40 °C to 70 °C |
| Lightning Protection | Inductive lightning protection up to 6 kV for power and all ports |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (W x D x H) | 440 mm x 178 mm x 44 mm |
| Packet Forwarding Rate | 14,880 pps (10 Mbps) / 148,800 pps (100 Mbps) / 1,488,000 pps (1000 Mbps) |
| Forwarding Architecture | Store-and-forward, non-blocking |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3z (reported) IEEE 802.3ad (reported) |
