Ip-Com ( G1105P-4-63W ) 5-Port Gigabit Unmanaged Switch, 4-Port PoE, Std/Vlan Mode, Fanless, 6KV Lighting Protection, PoE Budget 58W G1105P-4-63W
SKU
298101
Brand
MPN
G1105P-4-63W
Warranty
1 Year Manufacturer's return to base
$77.00
Buy Now And Earn 77 Reward Points!

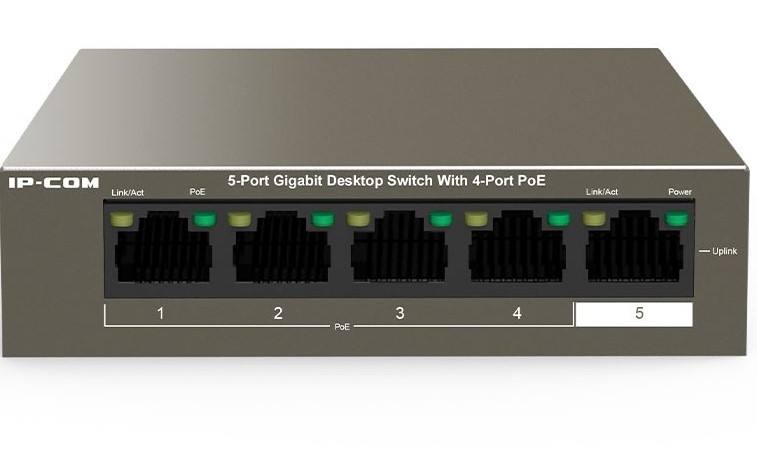

IP-COM G1105P-4-63W 5-Port Gigabit Unmanaged Switch With 4-Port PoE
| MPN | G1105P463W |
|---|---|
| UPC | 6932392831457 |
| MTBF | ≥100,000 hours |
| Brand | IP-COM |
| Layer | Layer 2 (L2) |
| Model | G1105P-4-63W |
| Ports | 5 x 10/100/1000 Mbps RJ45 |
| Category | Networking |
| Interface | RJ-45 Ethernet |
| GTIN / EAN | 6932392831457 |
| Indicators | Link/Act, PoE status per port, Power |
| PoE Pinout | Pins 1,2,4,5 = + ; Pins 3,6,7,8 = - |
| Protection | 6 kV port lightning protection; PSE short-circuit protection; PoE overloading protection; over temperature protection; over voltage and surge current protection |
| Description | The IP-COM G1105P-4-63W is a compact 5-port Gigabit desktop switch with advanced Power over Ethernet (PoE) functionality for small-to-medium networks. It provides four PoE-enabled 10/100/1000 Mbps RJ45 ports (ports 1-4) and one data-only Gigabit port (port 5). Ports 1-4 support IEEE 802.3af (up to 15.4 W) and IEEE 802.3at (up to 30 W) per port with a total PoE budget of 58 W. The switch supports One-Key VLAN (hardware DIP switch) to isolate ports 1-4 from each other while allowing communication with port 5, helping to reduce cabling and improve security. Built for reliable operation, it includes 6 kV lightning protection on ports, PSE short-circuit protection, PoE overload and over-temperature protection, and surge/over-voltage protection. Additional technical details: store-and-forward switching, 10 Gbps switching capacity, 7.44 Mpps forwarding rate, 1 Mb buffer, 2K MAC address table, MTBF ≥100,000 hours, AC 100-240 V 50/60 Hz input, and desktop/standalone form factor. Dimensions: 100 x 100 x 26 mm. |
| Form Factor | Desktop / Standalone |
| Power Input | AC 100-240 V ~ 50/60 Hz |
| Port Details | Ports 1-4: Data + PoE (IEEE 802.3af/at). Port 5: Data only |
| Sub-Category | Switches and Hubs |
| Buffer Memory | 1 Mb |
| Max Data Rate | 1 Gbps per port |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | IP-COM G1105P-4-63W 5-Port Gigabit PoE Desktop Switch (4x PoE, 58W Total) |
| LED Indicators | 5 x Link/Act, 4 x PoE, 1 x Power |
| Storage Humidity | 5% to 90% non-condensing |
| Hardware Features | Desktop/standalone form factor; hardware DIP switch for port isolation; store-and-forward switching |
| MAC Address Table | 2K entries |
| Power Consumption | Full configuration <63 W; PoE max supply 58 W |
| VLAN / Management | One-Key VLAN (hardware DIP switch) — ports 1-4 isolated from each other but can communicate with port 5 |
| Operating Humidity | 10% to 90% non-condensing |
| Ethernet Technology | Gigabit Ethernet (10/100/1000Base-T) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Power Adapter Output | 63 W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Standards & Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Dimensions (W x D x H) | 100 x 100 x 26 mm |
| Max PoE Power per Port | 30 W (802.3at), 15.4 W (802.3af) |
| Packet Forwarding Rate | 7.44 Mpps |
| Total PoE Power (Budget) | 58 W |
| Switching Capacity (Backplane) | 10 Gbps |
IP-COM ( G1105P-4-63W ) 5-Port Gigabit Unmanaged Switch, 4-Port PoE, STD/VLAN mode, Fanless, 6KV lighting Protection, PoE Budget 58W
