Ip-Com (G1105PD) 5-port Gigabit Pd Switch With 4-port PoE Out, 6kV Lightning Protection G1105PD
SKU
376326
Brand
MPN
G1105PD
Warranty
Standard Manufacturer's Warranty
$58.00
Buy Now And Earn 58 Reward Points!

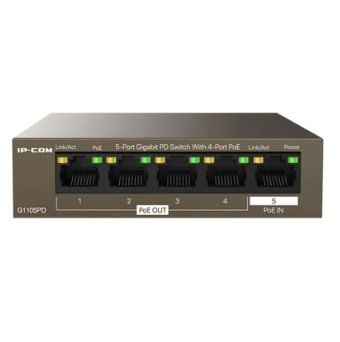

IP-COM G1105PD 5-port Gigabit PD switch
• Five 10/100/1000 Mbps Ethernet ports
• Port 5 PoE in, supports power supply by a PSE compliant with IEEE 802.3af/at
• Ports 1 - 4 PoE Out, support power supply to low-power PDs compliant with IEEE 802.3af
• 6kv lightning protection
• Ideal choice for PoE Relay for long-distance surveillance
• Plug & Play
• Five 10/100/1000 Mbps Ethernet ports
• Port 5 PoE in, supports power supply by a PSE compliant with IEEE 802.3af/at
• Ports 1 - 4 PoE Out, support power supply to low-power PDs compliant with IEEE 802.3af
• 6kv lightning protection
• Ideal choice for PoE Relay for long-distance surveillance
• Plug & Play
| Fan | Fanless |
|---|---|
| SKU | G1105PD |
| Brand | IP-COM |
| Model | G1105PD |
| Ports | 5 x 10/100/1000 Mbps RJ45 (Ports 1-4: PoE OUT, Port 5: PoE IN) |
| Features | Five 10/100/1000 Mbps auto-negotiation ports Integrated PSE & PD (powered via port 5 and supplies ports 1-4) Auto MDI/MDIX Non-blocking wire-speed forwarding Full-duplex flow control and half-duplex backpressure control Store-and-forward transfer mode 2K MAC address table 9K jumbo frame support Optimized for IP camera and low-power AP connections Plug and play |
| Material | Metal |
| Data Rate | 10/100/1000 Mbps |
| PoE Input | 50 - 57 V DC, 0.6 A (via port 5) |
| Protection | Port lightning protection 6 kV; power lightning protection: No (per source); ESD: air ±8 kV, contact ±6 kV; short-circuit protection for PSE |
| Buffer Size | 1 Mb |
| Description | Compact unmanaged Gigabit PD switch providing four 10/100/1000 Mbps PoE OUT ports and one 10/100/1000 Mbps PoE IN uplink. Designed for surveillance and distributed networking, it supports IEEE 802.3af on ports 1-4 and IEEE 802.3af/at on port 5, non-blocking wire-speed forwarding, store-and-forward switching, 9K jumbo frames and a 2K MAC address table. Metal, fanless enclosure can be installed in an outdoor waterproof box and includes 6 kV port lightning protection and PoE relay support for extended data/power distance. |
| Form Factor | Stand-alone (desktop); small enough for installation in an outdoor waterproof box |
| Switch Type | Unmanaged Gigabit PD (PoE) Switch |
| Installation | Desktop mounting supported; wall and rack mounting not supported (per specifications) |
| Auto MDI/MDIX | Yes |
| PoE Standards | Ports 1-4: IEEE 802.3af; Port 5 (uplink): IEEE 802.3af/at |
| Product Title | IP-COM G1105PD 5-Port Gigabit PD Switch with 4-Port PoE |
| LED Indicators | 1 x Power, 4 x PoE, 5 x Link/Act |
| Forwarding Mode | Store-and-Forward |
| NDAA Compliance | No |
| Storage Humidity | 5% - 90% (non-condensing) |
| MAC Address Table | 2 K entries |
| PoE Power (Total) | 30 W (maximum total PoE budget) |
| Operating Humidity | 10% - 90% (non-condensing) |
| Switching Capacity | 10 Gbps |
| Transmission Media | 10Base-T: CAT3 UTP or better; 100Base-TX: CAT5 UTP or better; 1000Base-T: CAT5e UTP or better |
| Jumbo Frame Support | 9K |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 45°C |
| Dimensions (L x W x H) | 100 mm x 100 mm x 26 mm |
| Packet Forwarding Rate | 10 Mbps: 14880 pps; 100 Mbps: 148800 pps; 1000 Mbps: 1488000 pps |
| Certificates / Compliance | CQC FCC CE RoHS |
| PoE Relay / Long-distance | Supports PoE relay to extend data/power distance (up to 325 meters as reported) |
| PoE Power (Per Port Maximum) | 15.4 W |
| Network Standards / Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at; CDMA/CD |
IP-COM (G1105PD) 5-port Gigabit PD switch with 4-port PoE Out, 6kV lightning protection
