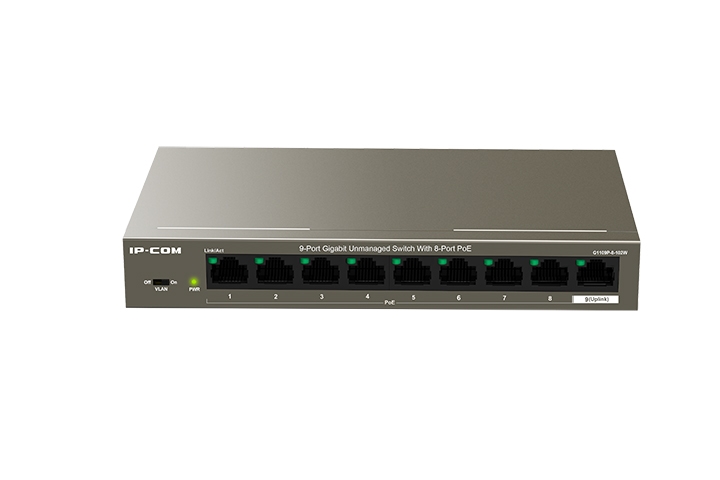

Ip-Com (G1109P-8-102W) 9-Port Gigabit Unmanaged Switch With 8-Port PoE+, 6kV Lightning Protection G1109P-8-102W
SKU
387774
Brand
MPN
G1109P-8-102W
Warranty
Standard Manufacturer's Warranty
$163.00
Buy Now And Earn 163 Reward Points!
IP-COM G1109P-8-102W 9-Port Gigabit Unmanaged PoE Switch
• 9 x 10/100/1000Mbps Gigabit Ethernet Ports
• Ports 1-8: IEEE 802.3af/at PoE+ ports
• full-duplex 802.3x flow control and half-duplex backpressure flow control
• 16K MAC address list, MAC address learning and auto-ageing
• 6kV Lightning Protection
• Fanless design
• PoE budget: 92W
• Support VLAN isolation mode
• Desktop Design
• 9 x 10/100/1000Mbps Gigabit Ethernet Ports
• Ports 1-8: IEEE 802.3af/at PoE+ ports
• full-duplex 802.3x flow control and half-duplex backpressure flow control
• 16K MAC address list, MAC address learning and auto-ageing
• 6kV Lightning Protection
• Fanless design
• PoE budget: 92W
• Support VLAN isolation mode
• Desktop Design
| EAN | 6932392831693 |
|---|---|
| SKU | G1109P-8-102W |
| MTBF | ≥100,000 hours (reported) |
| Type | Unmanaged Gigabit Ethernet Switch |
| Brand | IP-COM |
| Model | G1109P-8-102W |
| Notes | Technical values consolidated from multiple sources. Packet buffer is reported as both 2 Mb and 2 MB across sources; PoE per-port max is listed per IEEE specs but total PoE budget is 92W. |
| Power | AC Input Voltage: 100 - 240V AC AC Input Frequency: 50/60 Hz Power Supply Included: Yes Power Consumption (Max): 102W (full configuration, reported) |
| Design | Desktop, fanless |
| Category | Networking |
| Physical | Color: Weight: Dimensions (W x D x H): 177.5 x 104 x 26 mm |
| PoE Ports | 8 |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| PoE Pinout | Pins 1,2,4,5 positive; 3,6,7,8 negative (as reported) |
| VLAN Modes | Hardware DIP switch to select Standard or VLAN mode (ports 1-8 isolated from each other in VLAN mode; uplink can communicate with isolated ports) |
| Description | The IP-COM G1109P-8-102W is a compact 9-port gigabit unmanaged desktop switch with 8 PoE-enabled ports and one gigabit uplink. It supports IEEE 802.3af and 802.3at PoE standards (per-port up to 15.4W / 30W) with a total PoE budget of 92W, making it suitable for powering access points, IP cameras and IP phones over CAT5 cables. The fanless, desktop design includes a hardware DIP switch to select Standard or VLAN mode (ports 1–8 isolated from each other in VLAN mode), integrated 6 kV lightning protection on ports, MAC address self-learning (16K entries), 2 Mb/2 MB packet buffer (reported), and support for full-duplex 802.3x and half-duplex backpressure flow control. Compact and energy efficient, it provides store-and-forward switching, a switching capacity of 18 Gbps and a forwarding rate of 13.4 Mpps. |
| Performance | Switch Type: Unmanaged Forwarding Method: Store-and-forward |
| Total Ports | 9 (8 PoE + 1 uplink) |
| Architecture | Store-and-forward, shared memory, non-blocking |
| Flow Control | Full-duplex 802.3x and half-duplex backpressure |
| Manufacturer | IP-COM Networks (Shenzhen IP-COM Networks Co., Ltd.) |
| PoE Per Port | 15.4W (802.3af) or 30W (802.3at) (per port, as reported) |
| Port Details | 8 x 10/100/1000Base-T (Data + Power), 1 x 10/100/1000Base-T (Data uplink) |
| Sub-Category | Switches and Hubs |
| Uplink Ports | 1 |
| Environmental | Storage Humidity: 5% to 90% (non-condensing) Operating Humidity: 10% to 90% (non-condensing) Storage Temperature: -40°C to 70°C Operating Temperature: 0°C to 40°C |
| Packet Buffer | 2 Mb / 2 MB (reported across sources) |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | IP-COM G1109P-8-102W 9-Port Gigabit Unmanaged Switch with 8-Port PoE (92W) |
| Certifications | CE FCC RoHS CCC |
| LED Indicators | 9 x Link/Act (per port), 1 x Power |
| Forwarding Rate | 13.4 Mpps |
| Country of Origin | China |
| MAC Address Table | 16K entries |
| PoE Budget (Total) | 92W |
| Switching Capacity | 18 Gbps |
| Included Accessories | Internal/External power supply (reported as included) |
| Lightning Protection | Port inductive/common-mode protection up to 6 kV |
| Packet Buffer (reported) | 2 Mb / 2 MB |
| Harmonization System Code | 85176990 |
IP-COM (G1109P-8-102W) 9-Port Gigabit Unmanaged Switch With 8-Port PoE+, 6kV lightning protection
