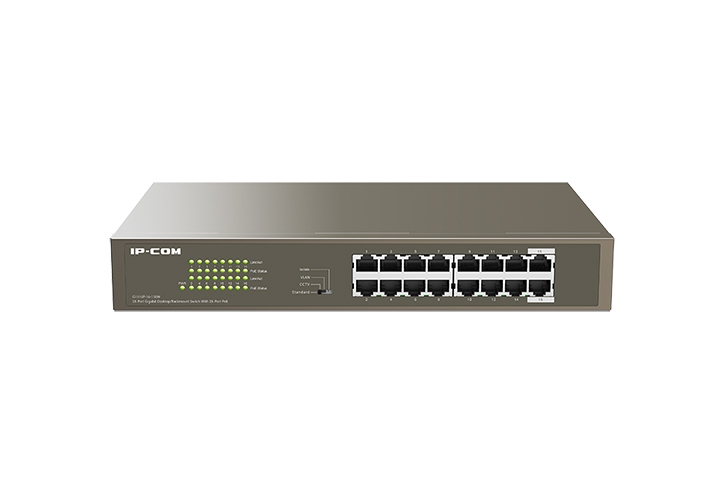

Ip-Com (G1116P-16-150W) 16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE+, 6kV Lightning Protection G1116P-16-150W
SKU
388506
Brand
MPN
G1116P-16-150W
Warranty
Standard Manufacturer's Warranty
$306.00
Buy Now And Earn 306 Reward Points!
IP-COM G1116P-16-150W 16-Port Gigabit Desktop/Rackmount PoE Switch
• 16 x 10/100/1000Mbps Ethernet Ports
• Ports 1-16: IEEE 802.3af/at PoE+ ports
• 32Gbps exchange capacity
• 6kV Lightning Protection
• Fanless design
• PoE budget: 135W
• Desktop or rack mounting
• Hardware DIP switch for mode selection: Standard, CCTV, VLAN, and Isolation
• CCTV: the port cache is optimized and ports 1-8 have higher priority over other ports, ideal for important surveillance area
• VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively
• Isolation: ports 1 to 8 and ports 9 to 16 belong to two different VLANs, ideal for surveillance network and wireless network isolation
• 16 x 10/100/1000Mbps Ethernet Ports
• Ports 1-16: IEEE 802.3af/at PoE+ ports
• 32Gbps exchange capacity
• 6kV Lightning Protection
• Fanless design
• PoE budget: 135W
• Desktop or rack mounting
• Hardware DIP switch for mode selection: Standard, CCTV, VLAN, and Isolation
• CCTV: the port cache is optimized and ports 1-8 have higher priority over other ports, ideal for important surveillance area
• VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively
• Isolation: ports 1 to 8 and ports 9 to 16 belong to two different VLANs, ideal for surveillance network and wireless network isolation
| Brand | IP-COM |
|---|---|
| Model | G1116P-16-150W |
| Ports | 16 x 10/100/1000 Mbps RJ45 |
| Weight | 2000 g |
| Fanless | Yes |
| USB Ports | 0 |
| Description | The IP-COM G1116P-16-150W is an unmanaged 16-port Gigabit Ethernet switch with full PoE support for powering APs, IP cameras and IP phones over Cat5e. Ports 1-16 are IEEE 802.3af/at compliant (per-port up to 30 W, 802.3af up to 15.4 W), with a total PoE power budget of 135 W. The fanless desktop/rackmount design supports automatic MDI/MDIX, 10/100/1000 Mbps auto-negotiation, store-and-forward non-blocking switching, and an 8K MAC address table. Hardware DIP switch provides four operation modes (Standard, CCTV, VLAN, Isolation). Built-in lightning protection (common-mode up to 6 kV) and uplink ports (ports 15 and 16) help protect and extend network connectivity. Includes mounting brackets and accessories for desktop or rack installation. |
| Form Factor | Desktop / Rackmount |
| Flow Control | IEEE 802.3x full-duplex; half-duplex backpressure |
| Product Type | Unmanaged Switch |
| Uplink Ports | Ports 15 and 16 |
| Auto MDI/MDIX | Yes |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | IP-COM G1116P-16-150W 16-Port Gigabit PoE Switch (135W) |
| Mode Selection | Hardware DIP switch |
| SFP/SFP+ Ports | 0 |
| Auto-negotiation | 10/100/1000 Mbps on all ports |
| Package Contents | Switch x1 Pads x4 Power cord x1 Screws x6 L-shaped brackets x2 Quick Installation Guide x1 |
| MAC Address Table | 8K entries |
| PoE Capable Ports | Ports 1-16 |
| Lightning Protection | Port and power-supply lightning protection, common-mode up to 6 kV |
| Per-port PoE (Maximum) | Up to 30 W (802.3at); 15.4 W (802.3af) |
| Switching Architecture | Store-and-forward, shared memory, non-blocking |
| Total PoE Power Budget | 135 W |
| Network Operation Modes | Standard CCTV VLAN Isolation |
| Regulatory / Compliance | FCC Class A CE WEEE disposal symbol |
| Full-duplex Transmission Rate | Up to 2000 Mbps (as stated by manufacturer) |
IP-COM (G1116P-16-150W) 16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE+, 6kV lightning protection
