Ip Com (G1118P-16-250W) 16GE + 2SFP Ethernet Unmanaged Switch With 16-Port PoE+ G1118P-16-250W
SKU
390394
Brand
MPN
G1118P-16-250W
Warranty
Standard Manufacturer's Warranty
$335.00
Buy Now And Earn 335 Reward Points!

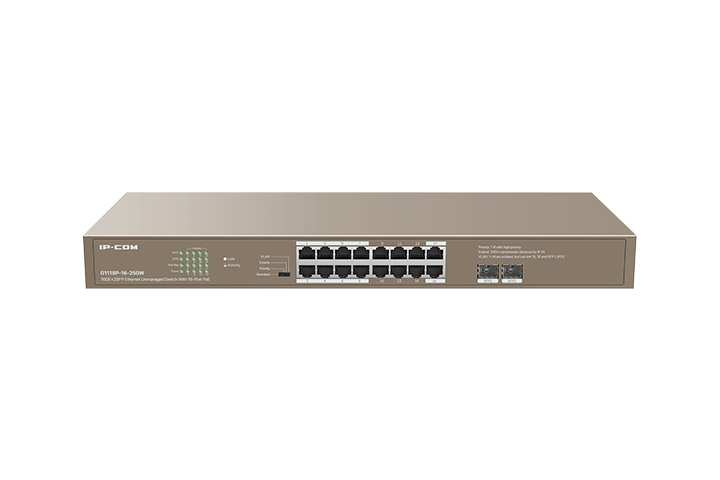

IP-COM G1118P-16-250W 16GE + 2SFP Ethernet Unmanaged Switch With 16-Port PoE+
| SKU | G1118P-16-250W |
|---|---|
| Brand | IP-COM |
| Model | G1118P-16-250W |
| Ports | 16 x 10/100/1000 Mbps RJ45 (PoE) |
| Uplink | 2 x 1 Gbps SFP for fiber backhaul |
| Category | Networking |
| Mounting | Rackmount 1U |
| SFP Ports | 2 x 1000 Mbps SFP |
| Description | The IP-COM G1118P-16-250W is an unmanaged 16-port Gigabit Ethernet PoE switch with 2 SFP uplinks, designed for SMB, surveillance and Wi‑Fi AP deployments. It supports IEEE 802.3af/at PoE with up to 30W per port and a total PoE budget of 230W (device input/power rating 250W). The switch delivers 36 Gbps switching capacity (store-and-forward) with an 8K MAC table and 2 MB buffer. Hardware DIP switches provide four operating modes (Standard, Priority, Extend and VLAN) for simple on-site configuration. Built for reliability, it features ≥6 kV lightning protection, PSE short-circuit and PoE overload protection, a metal rackmount 1U chassis, and dual 1 Gbps SFP uplinks for fiber backhaul. |
| Flow Control | IEEE 802.3x full-duplex; half-duplex backpressure |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Sub-Category | Switches and Hubs |
| Input Voltage | AC 100-240 V, 50/60 Hz |
| Product Title | IP-COM G1118P-16-250W 16-Port Gigabit Unmanaged PoE Switch (16x RJ45 + 2x SFP, 230W PoE) |
| Certifications | CE FCC RoHS |
| Forwarding Mode | Store-and-forward |
| Management Type | Unmanaged |
| Additional Specs | Switching Method: Store-and-forward Extend Mode Reach: Up to 250 meters at 10 Mbps on designated ports Priority Behavior: Port-based priority via DIP |
| Chassis Material | Metal |
| Storage Humidity | 5% to 90% RH non-condensing |
| MAC Address Table | 8K entries, auto-learning |
| Packet/Port Notes | Ports 1-16 support data + PoE; per-port auto-sensing PoE |
| Dimensions (WxDxH) | 440 x 178.8 x 44 mm |
| Operating Humidity | 10% to 90% RH non-condensing |
| Switching Features | Plug-and-play; hardware DIP switch for mode selection; VLAN/CCTV/QoS modes via DIP |
| PoE Ports Supported | Ports 1-16 |
| Protection / Safety | ≥6 kV lightning protection; PSE short-circuit protection; PoE overload protection; surge current protection |
| Storage Temperature | -40°C to 70°C |
| PoE Per-Port Maximum | 30 W |
| Operating Temperature | 0°C to 45°C |
| Buffer (Packet Memory) | 2 MB |
| Packet Forwarding Rate | 26.8 Mpps |
| Total PoE Power Budget | 230 W |
| Operating Modes (DIP switch) | VLAN: Ports 1-14 isolated from each other; can communicate with ports 15,16,SFP1,SFP2 Extend: Ports 9-14 limited to 10 Mbps for extended reach (up to 250 m) Priority: Ports 15,16 and SFP1/SFP2 as uplinks; ports 1-8 high priority Standard: Default; all ports communicate normally |
| Switching Capacity (Backplane Bandwidth) | 36 Gbps |
| Maximum Device Power Consumption / Supply Rating | 250 W |
