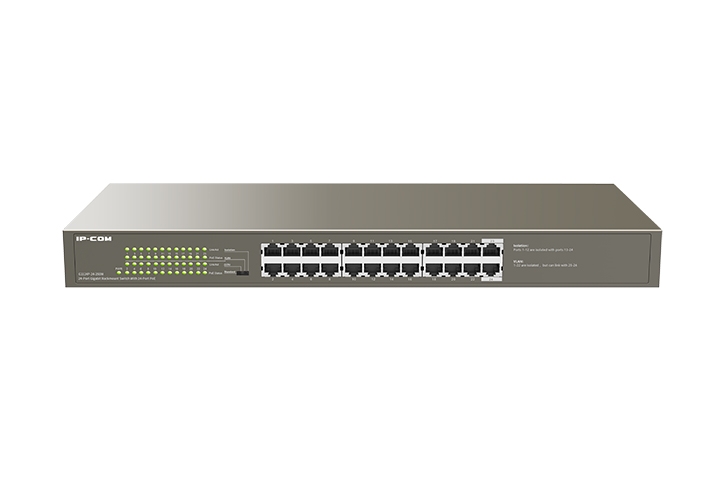

Ip-Com (G1124P-24-250W )24-Port Gigabit Switch With 24-Port PoE+, 6kV Lightning Protection G1124P-24-250W
SKU
388505
Brand
MPN
G1124P-24-250W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$402.00
Buy Now And Earn 402 Reward Points!
IP-COM G1124P-24-250W 24-Port Gigabit PoE Switch
• 24 x 10/100/1000Mbps Ethernet Ports
• Ports 1-24: IEEE 802.3af/at PoE+ ports
• 48Gbps exchange capacity
• 6kV Lightning Protection
• PoE budget: 225W
• Hardware DIP switch for mode selection: Standard, CCTV, VLAN, and Isolation
• CCTV: the port cache is optimized and ports 1-8 have higher priority over other ports, ideal for important surveillance area
• VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively.
• Isolation: ports 1 to 14 and ports 15 to 24 belong to two different VLANs, ideal for surveillance network and wireless network isolation
• 24 x 10/100/1000Mbps Ethernet Ports
• Ports 1-24: IEEE 802.3af/at PoE+ ports
• 48Gbps exchange capacity
• 6kV Lightning Protection
• PoE budget: 225W
• Hardware DIP switch for mode selection: Standard, CCTV, VLAN, and Isolation
• CCTV: the port cache is optimized and ports 1-8 have higher priority over other ports, ideal for important surveillance area
• VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively.
• Isolation: ports 1 to 14 and ports 15 to 24 belong to two different VLANs, ideal for surveillance network and wireless network isolation
| Brand | IP-COM |
|---|---|
| Color | Silver |
| Layer | L2 |
| Model | G1124P-24-250W |
| Ports | 24 x 10/100/1000Base-T RJ45 (Data + PoE) |
| Warranty | 1 year |
| PoE Ports | Ports 1-24 support IEEE 802.3af/at |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at |
| Dimensions | 17.24" x 7.01" x 1.73" (approx.) |
| Port Count | 24 |
| Description | The IP-COM G1124P-24-250W is an unmanaged 24-port Gigabit PoE switch designed for surveillance, wireless and VoIP deployments. It provides 24 x 10/100/1000 Mbps RJ45 ports with IEEE 802.3af/at PoE (per-port up to 30W, total PoE budget 225W), hardware DIP-switch selectable operation modes (Standard, CCTV, VLAN, Isolation), fanless operation, and integrated 6 kV lightning protection. The switch supports store-and-forward, non-blocking architecture, 8K MAC address table, auto MDI/MDIX, flow control (full-duplex 802.3x / half-duplex backpressure) and can be rack-, desktop- or wall-mounted. |
| Form Factor | Rackmount (1U) Desktop Wall-mount |
| Switch Type | Unmanaged PoE Switch |
| Flow Control | Full-duplex 802.3x and half-duplex backpressure |
| VLAN Support | Yes (mode-selectable) |
| Auto MDI/MDIX | Yes |
| Input Voltage | AC 100-240V, 50/60Hz |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | IP-COM G1124P-24-250W 24-Port Gigabit Unmanaged PoE Switch (225W, Rackmount) |
| Fanless Design | true |
| LED Indicators | 24 x Link/Act, 24 x PoE, 1 x Power |
| Max PoE Budget | 225W |
| Management Modes | Standard CCTV VLAN Isolation |
| Max PoE Per Port | 30W (IEEE 802.3at) / 15.4W (IEEE 802.3af) |
| Storage Humidity | 5% to 90% non-condensing |
| Hardware Features | Hardware DIP switch for mode selection; broadcast isolation to help prevent storms and DHCP spoofing |
| MAC Address Table | 8K entries |
| Operating Humidity | 10% to 90% non-condensing |
| Primary Port Speed | 10/100/1000 Mbps |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Lightning Protection | Port and power supply protection / common-mode protection up to 6 kV |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Packet Forwarding Rate | 35.7 Mpps |
| Switching Architecture | Store-and-forward, shared memory, non-blocking |
| Full-Duplex Throughput Note | Up to 2000 Mbps full-duplex transmission rate per port (1 Gbps per direction) |
| Max Power Consumption (system) | <250W (full configuration) |
IP-COM (G1124P-24-250W )24-Port Gigabit Switch With 24-Port PoE+, 6kV lightning protection
