Ip Com (G1126P-24-410W)24Ge + 2SFP Ethernet Unmanaged Switch With24-Port PoE+ G1126P-24-410W
SKU
391651
Brand
MPN
G1126P-24-410W
Warranty
Standard Manufacturer's Warranty
$469.00
Buy Now And Earn 469 Reward Points!

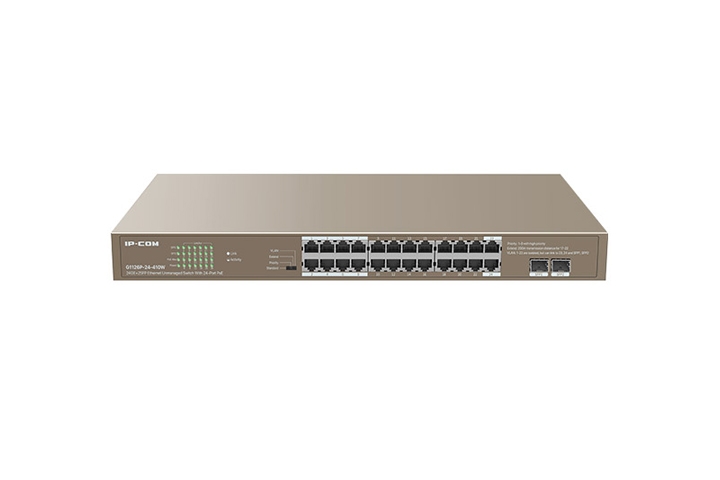

IP-COM G1126P-24-410W 24GE + 2SFP Ethernet Unmanaged Switch With24-Port PoE+
| Type | Unmanaged Ethernet Switch |
|---|---|
| Brand | IP-COM |
| Model | G1126P-24-410W |
| Ports | 26 (24 x 10/100/1000 Mbps RJ45 PoE ports + 2 x 1000 Mbps SFP slots) |
| Speed | 10/100/1000 Mbps (Gigabit) |
| Mounting | Rack mountable |
| Warranty | 1 Year (reported by one source) |
| SFP Slots | 2 x 1000 Mbps Base-X SFP |
| Use Cases | Wireless access point deployments IP camera / video surveillance VoIP / IP phones SMBs, hotels, schools, factories |
| Description | The IP-COM G1126P-24-410W is an unmanaged gigabit PoE switch featuring 24 Gigabit RJ45 PoE ports plus 2 SFP uplink slots. Compliant with IEEE 802.3af/at PoE standards, it provides up to 30 W per port with a maximum PoE budget of 370 W and a reported maximum power consumption of 410 W. The switch offers a 48 Gbps backplane, an 8K MAC address table with auto-learning, IEEE 802.3x full-duplex and half-duplex backpressure flow control, and four hardware-selectable operation modes (standard, priority, extend, VLAN). Designed for rack mounting, it includes multiple protections (6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge/overvoltage protection) and is suitable for SMBs, hotels, schools, CCTV/surveillance, wireless AP deployments and VoIP devices. |
| Flow Control | IEEE 802.3x full-duplex and half-duplex backpressure |
| PoE Standard | IEEE 802.3af IEEE 802.3at |
| Product Title | IP-COM G1126P-24-410W 24-Port Gigabit Unmanaged PoE Switch (24GE + 2 SFP) |
| Operation Modes | Standard Priority Extend VLAN |
| Additional Notes | Unmanaged plug-and-play operation Hardware DIP switch to select operation modes (reported) Suitable for rack installation |
| Max PoE per Port | 30 W |
| MAC Address Table | 8K entries (auto-learning) |
| Maximum PoE Budget | 370 W |
| Backplane Bandwidth | 48 Gbps |
| Protection Features | 6 kV lightning protection PSE short-circuit protection PoE overload protection Surge/overvoltage protection Surge current protection |
| Product Status Notes | EOL reported by one source |
| Standards Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Product Ports Summary | SFP Ports: 2 Total Ports: 26 RJ45 PoE Ports: 24 |
| Maximum AC Power Consumption | 410 W |
IP Com (G1126P-24-410W)24GE + 2SFP Ethernet Unmanaged Switch With24-Port PoE+
