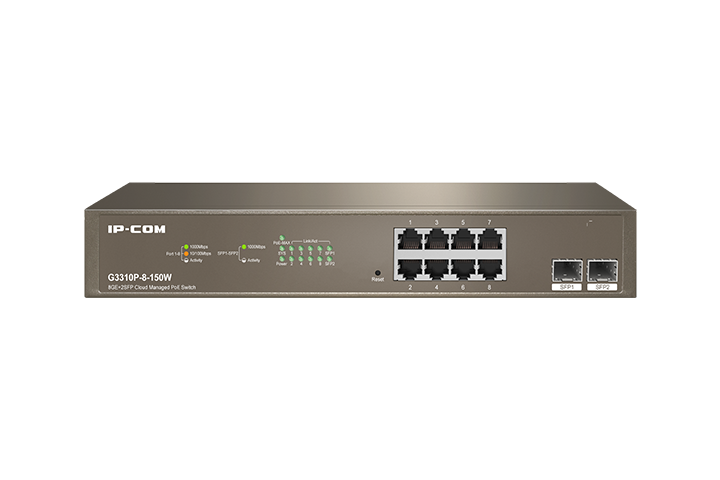

IP Com (G3310P-8-150W) 8GE + 2SFP Cloud Managed PoE Switch
SKU
387775
Brand
MPN
G3310P-8-150W
Warranty
Standard Manufacturer's Warranty
$252.00
Buy Now And Earn 252 Reward Points!
G3310P-8-150W is a smart cloud management PoE switch designed by IP-COM. It provides 8 gigabit PoE ports and 2 SFP ports, supports IEEE 802.3af/at standards, and can smartly identify powered devices. The maximum output power of a single port is 30W and the power of the whole switch is 150W. It supports IMS Cloud, web UI, and IP-COM IMS app management, making network maintenance more efficient, after-sales cost lower, and management and configuration simpler. It is an ideal choice for video surveillance and wireless networking in such scenarios as small and medium-sized enterprises, hotels, schools, and parks.
| Hardware specifications | |
|---|---|
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at |
| LED indicators | 1 Link/Ack LED indicator for each port 1 PoE Max LED indicator for each device 1 Power LED indicator for each device 1 SYS LED indicator for each device |
| Interfaces | 8 x 10/100/1000 Base-T Ethernet ports (Data/Power) 2 x 100/1000 Base-X SFP ports |
| Port Lightning Protection | ≥6KV |
| Forwarding mode | Store-and-forward |
| Switching capability | 20 Gbps |
| Packet forwarding rate | 14.9 Mpps |
| MAC address table | 8K |
| PoE Power Supply | Ports 1 to 8 support 802.3af/at standard 1 2 4 5 +, 3 6 7 8 - |
| Input voltage | 100-240V～ 50/60Hz |
| Dimensions(L*W*H) | 294 mm * 179.6 mm * 44 mm |
| Whole Switch Power Consumption | Whole switch power consumption: <150W; Maximum PoE output power: 130W |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Software specifications | |
| PoE Power Supply Management | Port PoE configuration and power supply priority configuration supported PoE over-temperature protection supported Smart graphical management and PoE-powered device detection supported (port status, power assignment, and PoE-powered device status) |
| Security Features | MAC address binding supported |
| VLAN | IEEE 802.1Q VLAN supported |
| Port aggregation | Static aggregation supported Dynamic aggregation supported |
| Spanning tree | IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported |
| Port Mirroring | N: 1 port mirroring supported |
| QoS | FIFO (First-In, First-Out) supported SP (Strict Priority) supported WP (Weighted Priority) supported |
| Loading & Upgrade | HTTP upgrade supported Configuration import and export supported |
| Management & Maintenance | IP-COM IMS app management supported Web UI management supported IMS Cloud management supported |
| Certificates | CCC, FCC, CE, RoHS |
