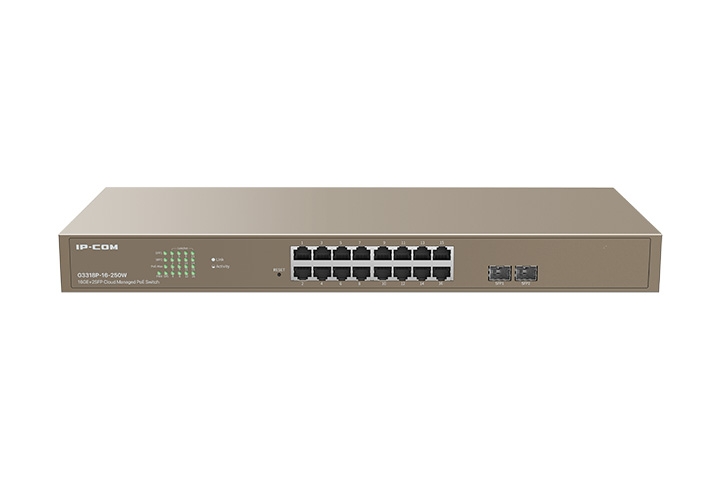

Ip Com (G3318P-16-250W) 16GE + 2SFP Cloud Managed PoE Switch G3318P-16-250W
SKU
384145
Brand
MPN
G3318P-16-250W
Warranty
Standard Manufacturer's Warranty
$444.00
Buy Now And Earn 444 Reward Points!
IP-COM G3318P-16-250W 16GE + 2SFP Cloud Managed PoE Switch
| SKU | G3318P-16-250W |
|---|---|
| Brand | IP-COM |
| Color | Steel Bronze (reported) |
| Model | G3318P-16-250W |
| Notes | Some sources report a PoE total listed as 230W while the majority indicate 250W; this record uses 250W as the PoE budget per majority reporting. Use-case guidance (reported): recommended for video surveillance and wireless networking in small/medium enterprises, hotels, schools and parks. |
| Ports | 16 x 10/100/1000 Base-T (Data + PoE) |
| Weight | 4.0 kg (reported) |
| Category | Networking |
| Warranty | 1 Year (reported) |
| Datasheet | https://vesuviustreamline.com/userfiles/product_files_shared/G3318P-16-250W_Datasheet.pdf https://drive.google.com/file/d/1agsco6crOINHDZPO8sqhD25Sa_jueHxN/view?usp=sharing |
| SFP Ports | 2 x 100/1000 Base-X SFP |
| Management | Web UI, IP-COM cloud management (IMS/ProFi), IP-COM mobile app; supports batch onboarding (QR), local visualized management |
| Description | The IP-COM G3318P-16-250W is a cloud-managed L2 PoE switch with 16 Gigabit PoE ports and 2 SFP uplink ports. It supports IEEE 802.3af/at PoE (smart PoE with device detection), up to 30W per port and a total PoE budget of 250W. Management options include IP-COM cloud (IMS/ProFi), web UI and mobile app with features for batch device onboarding. L2 features include 802.1Q VLAN, link aggregation, QoS, MAC binding, DHCP snooping and loop guard; the switch also provides 8K MAC address learning, IEEE 802.3x flow control and non-blocking line-rate forwarding. Ideal for video surveillance and wireless deployments in SMBs, hotels, schools and parks. |
| L2 Features | IEEE 802.1Q VLAN Link aggregation QoS MAC address binding Static routing (reported) DHCP snooping (reported) Loop guard (reported) |
| Port Speeds | 10/100/1000 Mbps (Gigabit) |
| Switch Type | Managed PoE Switch (Cloud-managed, L2) |
| Flow Control | IEEE 802.3x full-duplex flow control; half-duplex backpressure |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Sub-Category | Switches and Hubs |
| PoE Max Total | 250W |
| Product Title | IP-COM G3318P-16-250W 16-Port Gigabit Cloud Managed PoE Switch (16GE + 2 SFP) |
| Product Status | End of Life / Discontinued |
| PoE Max per Port | 30W |
| MAC Address Table | 8K entries; automatic learning |
| Power Consumption | 250W (reported) |
| Switching Capacity | 36 Gbit/s (reported) |
| Standards Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1d IEEE 802.3af IEEE 802.3at |
| Power Supply Distance | 250 meters (reported) |
| Non-blocking Forwarding | Non-blocking line-rate forwarding for all ports |
IP Com (G3318P-16-250W) 16GE + 2SFP Cloud Managed PoE Switch
