Ip Com (G3326P-24-410W)24Ge + 2SFP Cloud Managed PoE Switch G3326P-24-410W
SKU
387776
Brand
MPN
G3326P-24-410W
Warranty
Standard Manufacturer's Warranty
$618.00
Buy Now And Earn 618 Reward Points!

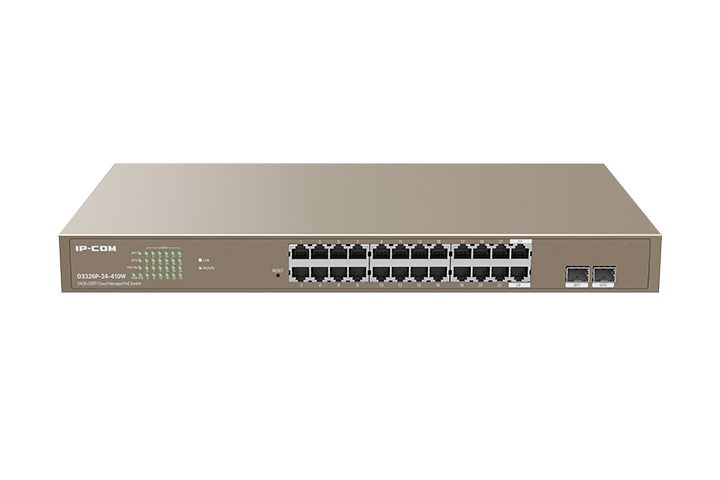

IP-COM G3326P-24-410W 24GE + 2SFP Cloud Managed PoE Switch
| SKU | G3326P-24-410W |
|---|---|
| Brand | IP-COM |
| Model | G3326P-24-410W |
| Notes | Designed for video surveillance and wireless networking. Supports local visualization and remote cloud operations for easier maintenance and configuration. |
| Ports | 24 x 10/100/1000Base-T (Data/Power) |
| Weight | 5.04 kg |
| Category | Networking |
| PoE Ports | 24 |
| SFP Ports | 2 x 100/1000Base-X SFP (combo) |
| Description | The IP-COM G3326P-24-410W is a cloud-managed Gigabit PoE switch providing 24 x 10/100/1000Base-T PoE ports and 2 x 100/1000Base-X SFP ports. It supports IEEE 802.3af/at with up to 30 W per PoE port and a total PoE budget of 410 W. Designed for SMBs, hotels, schools and parks, the switch offers IMS/ProFi cloud management, web UI and mobile app control (batch device add via QR), plus Layer 2 features including 802.1Q VLANs, link aggregation, QoS, MAC binding, DHCP snooping and RSTP. Additional capabilities include 8K MAC address table, non-blocking line-rate forwarding, PoE power management (per-port configuration, priority and over-temperature protection), remote maintenance (reboot/upgrade/backup) and topology visualization — making it suitable for IP cameras and wireless AP deployments. |
| Flow Control | IEEE 802.3x full-duplex; half-duplex backpressure |
| PoE Standard | IEEE 802.3af/at |
| Product Type | 24-port Gigabit Cloud Managed PoE Switch |
| Sub-Category | Switches and Hubs |
| VLAN Support | IEEE 802.1Q VLANs |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Product Title | IP-COM G3326P-24-410W 24GE+2SFP Cloud Managed PoE Switch |
| Spanning Tree | IEEE 802.1w RSTP supported |
| Certifications | CE, FCC, RoHS, CCC |
| Chassis Format | Desktop |
| Datasheet URLs | https://down.ip-com.com.cn/en/G3326-24-410W/G3326P-24-410W_Datasheet.pdf https://resources.seadan.com.au/resources/products/ICMG3326P-24-410W/attachments/ICMG3326P-24-410W_G3326P-24-410W_datasheet_1.pdf |
| LED Indicators | Per-port Link/Activity LEDs; PoE Max LED; Power LED; SYS LED |
| MAC Table Size | 8K (8,192 addresses) |
| Port Mirroring | 1-to-1 port mirroring supported |
| Forwarding Mode | Store-and-forward |
| Total PoE Power | 410 W |
| Link Aggregation | Static and dynamic link aggregation supported |
| Package Contents | G3326P-24-410W Switch; User's manual |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Warranty (Years) | 5 |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Switching Capacity | 48 Gbps |
| MAC Address Binding | Supported |
| RJ-45 Ports (total) | 26 |
| Storage Temperature | -40°C to 70°C |
| Maximum PoE per Port | 30 W |
| Operating Temperature | 0°C to 45°C |
| Dimensions (W x D x H) | 440 x 284 x 44 mm |
| Packet Forwarding Rate | 35.7 Mpps |
| Non-blocking Forwarding | Yes (line-rate for all ports) |
| PoE Management Features | Per-port PoE configuration, power priority, PoE over-temperature protection, PD detection and status reporting |
| Cloud & Local Management | IMS/ProFi Cloud management, ProFi App, IP-COM IMS app, web UI, local visualized management, batch add via QR code, remote reboot/backup/upgrade, topology auto-generation |
| Quality of Service (QoS) | Yes (FIFO, Strict Priority, Weighted Priority) |
| Other Management Features | VLAN configuration, DHCP snooping, loop guard, log reporting and fault detection |
| Port Lightning Protection | ≥6 kV |
| Alternate Model / Part Number | ICIP-G3326P-24 |
IP Com (G3326P-24-410W)24GE + 2SFP Cloud Managed PoE Switch
