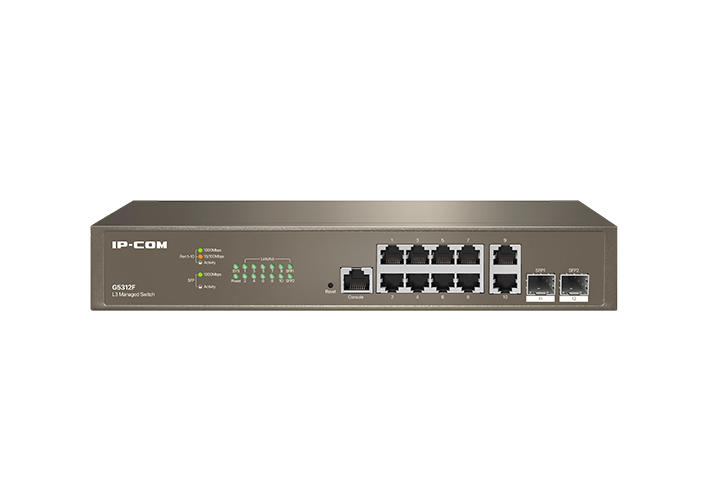

Ip-Com (G5312F) 12-port L3 Cloud Managed Switch, 6kv Lightning Protection G5312F
SKU
388510
Brand
MPN
G5312F
Warranty
Standard Manufacturer's Warranty
$236.00
Buy Now And Earn 236 Reward Points!
IP-COM G5312F 12-port L3 Cloud Managed Switch
• IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s standards
• 10 x 10/100/1000 Ethernet ports, 2 x 1000 Base-X SFP ports
• 16 K MAC address table and MAC address auto-learning
• Supports abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping
• 6kV lightning protection
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation
• desktop or rack-mounting
• IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s standards
• 10 x 10/100/1000 Ethernet ports, 2 x 1000 Base-X SFP ports
• 16 K MAC address table and MAC address auto-learning
• Supports abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping
• 6kV lightning protection
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation
• desktop or rack-mounting
| ACL | MAC ACL, IP ACL |
|---|---|
| MPN | G5312F |
| PoE | No |
| QoS | SP (Strict Priority), SWRR, WRR, 802.1p and DSCP trust modes, up to 8 queues |
| SKU | G5312F |
| DHCP | DHCP Server, DHCP Relay, DHCP Snooping, Option 82 support |
| Type | Layer-3 Managed Ethernet Switch |
| VLAN | IEEE 802.1Q VLAN; supports VLAN Layer‑3 interfaces; Access/Trunk/Hybrid port modes |
| Brand | IP-COM |
| Model | G5312F |
| Ports | 10 x 10/100/1000 Mbps RJ45 (Gigabit) ports |
| Weight | 5000 g (as reported by one source) |
| Warranty | 1 Year (manufacturer warranty reported by multiple sources) |
| Multicast | IGMP Snooping v1/v2/v3; fast leave |
| SFP_Ports | 2 x 1000Base‑X SFP slots |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ad IEEE 802.3z IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1d IEEE 802.1s |
| USB_Ports | 0 |
| Dimensions | 294 x 179.6 x 44 mm (L x W x H) |
| L3_Routing | VLAN-based routing, IPv4 static routing, static ARP |
| Management | Cloud management (IMS Cloud/IP-COM IMS), Web GUI, SNMP v1/v2/v3, Telnet, Console |
| Buffer_Size | 12 Mbit |
| Description | The IP‑COM G5312F is a Layer‑3 cloud‑managed gigabit switch designed for high‑density access and aggregation in medium to large enterprise or campus networks. It provides 10x 10/100/1000 Mbps RJ45 ports and 2x 1000Base‑X SFP slots, plus 1 console port. The switch supports IPv4 static routing, VLANs, DHCP server/relay and snooping, IGMP snooping, QoS, ACLs, LACP, STP/RSTP/MSTP and advanced security features. Hardware highlights include a 16K MAC address table, 12 Mbit buffer, 24 Gbps switching capacity (store‑and‑forward), built‑in 6 kV lightning protection, 1U rack‑mount design and multiple management options (IMS cloud, Web GUI, SNMP v1/v2/v3, Telnet, console). |
| Power_Input | 100-240V ~ 50/60Hz (reported), internal PSU |
| Total_Ports | 12 (10 RJ45 + 2 SFP) |
| Console_Port | 1 x RJ45 console port |
| Product Title | IP-COM G5312F 12‑Port Gigabit Layer‑3 Cloud Managed Switch (10x RJ45 + 2x SFP) |
| Spanning_Tree | STP (802.1d), RSTP (802.1w), MSTP (802.1s), edge port, BPDU stats |
| Certifications | CCC FCC CE RoHS |
| LED_Indicators | Link/Act per port, Power LED, SYS LED |
| Port_Mirroring | Supports N:1 port mirroring |
| Rack_Mountable | Yes, 1U standard rack‑mount design (13 inch) |
| Forwarding_Mode | Store-and-forward |
| Firmware_Upgrade | FTP/TFTP/HTTP; configuration import/export |
| Port_Aggregation | Static aggregation and LACP dynamic aggregation |
| Storage_Humidity | 5% to 90% RH, non‑condensing |
| MAC_Address_Table | 16K entries |
| Security_Features | ARP receive limit, unknown MAC discard, DoS attack defense, 802.1x, RADIUS authentication |
| Operating_Humidity | 10% to 90% RH, non‑condensing |
| Switching_Capacity | 24 Gbps |
| Storage_Temperature | -40°C to 70°C |
| Included_Accessories | Not specified |
| Lightning_Protection | 6 kV (ports and power) |
| Operating_Temperature | 0°C to 40°C |
| Packet_Forwarding_Rate | 17.9 Mpps |
| Management_Features_Notes | Supports local visualization and topology auto-generation, device discovery (router/switch/AP/IP camera), remote maintenance features via IMS cloud |
| Monitoring_and_Maintenance | Ping/Tracert detection, log reporting, remote restart/backup/update via cloud |
IP-COM (G5312F) 12-port L3 Cloud Managed Switch, 6kv lightning protection
