Ip Com (G5324-16F) 8 X1 Ge, 16 X Sfp L3 Cloud Managed Switch G5324-16F
SKU
391652
Brand
MPN
G5324-16F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$488.00
Buy Now And Earn 488 Reward Points!

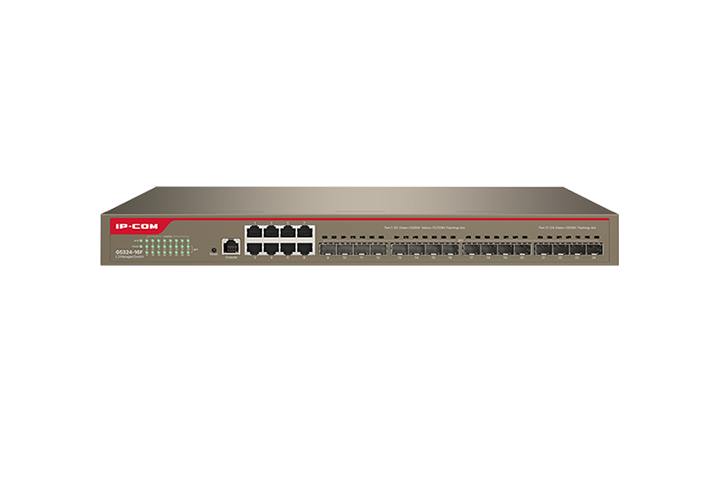

IP Com (G5324-16F) 8 x 1 GE, 16 x SFP L3 Cloud Managed Switch
| ACL | IP ACL MAC ACL |
|---|---|
| QoS | SP (Strict Priority) WRR (Weighted Round Robin) SWRR (Simple WRR) 802.1p port trust mode DSCP port trust mode Up to 8 queues Tail Drop Port speed limit Storm suppression |
| SKU | G5324-16F |
| LACP | LACP_Dynamic: true Static_Aggregation: true Max_Members_Per_Group: 8 Max_Aggregation_Groups: 32 |
| LEDs | Per-port Link/Act LEDs, Power LED, SYS LED |
| VLAN | 802.1Q VLAN VLAN layer-3 interface Access/Trunk/Hybrid port modes |
| Brand | IP-COM |
| Layer | Layer 3 |
| Model | G5324-16F |
| Notes | Data and performance values sourced from manufacturer/product listings; actual performance may vary by environment, software version and hardware batch. |
| Ports | SFP: 16 x 1000Base-X SFP slots RJ45: 8 x 10/100/1000Base-T Console: 1 x Console port Total_Ports: 25 |
| Power | 100 - 240V AC, 50/60 Hz |
| Buffer | 12 Mbit |
| Category | Networking |
| Warranty | Labor: 1 year Parts: 1 year |
| Multicast | IGMP_Version: IGMP_Snooping: true |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ad IEEE 802.3z IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1d IEEE 802.1s |
| Dimensions | 17.24" x 7.07" x 1.73" (approx. 1U) |
| Management | Discovery: [ "LLDP device discovery", "ONVIF IP camera discovery", "Automatic topology generation / device online-offline status" ] Cloud_Management: IP-COM ProFi Cloud / IMS Cloud (web UI and ProFi App; remote management, batch add via QR when supported) Local_Management: Web UI, CLI (Console & Telnet), SNMP v1/v2/v3 Monitoring_Tools: [ "Ping test", "Tracert test", "CPU monitoring", "Memory monitoring" ] |
| Port_Modes | Access, Trunk, Hybrid |
| Description | The IP-COM G5324-16F is a Layer-3 cloud-managed aggregation switch designed for high-density access and high-performance aggregation in SMBs, hotels and similar environments. It provides 8 x 10/100/1000Base-T RJ45 ports and 16 x 1000Base-X SFP ports plus a console port in a 1U rack-mount form factor. The switch supports IPv4 static routing and inter-VLAN routing, DHCP server/relay/snooping, 802.1Q VLANs, ACLs (IP/MAC), advanced QoS (SP/WRR/SWRR, DSCP/802.1P trust, up to 8 queues), LACP link aggregation, STP/RSTP/MSTP and IGMP snooping. Management options include IP-COM cloud management (ProFi / IMS Cloud via web UI and ProFi App), local visualization, Web/CLI/Console/Telnet and SNMP v1/v2/v3. Security and reliability features include MAC/ARP/DoS protection, 802.1X and RADIUS support, port storm suppression and monitoring tools (ping/tracert, CPU and memory monitoring). |
| Form Factor | 1U rack-mount |
| Sub-Category | Switches and Hubs |
| Product Title | IP-COM G5324-16F L3 Cloud Managed Switch — 8x RJ45, 16x SFP (1U) |
| Spanning_Tree | STP RSTP MSTP |
| Layer3_Features | IPv4 static routing Inter-VLAN routing DHCP Server DHCP Relay Dynamic ARP and static ARP ARP aging configuration |
| Switch_Features | Store-and-forward switching MAC auto-learning Packet storm suppression |
| Packet_Mirroring | N:1 port mirroring supported |
| Storage_Humidity | 5% to 90% RH (non-condensing) |
| Switching_Method | Store-and-forward |
| MAC_Address_Table | 16K entries (auto-learning) |
| Security_Features | MAC address/ARP/DoS attack defense IP/MAC ACL 802.1X authentication RADIUS authentication Discard unknown MAC addresses ARP receive limit |
| Operating_Humidity | 10% to 90% RH (non-condensing) |
| Primary_Port_Speed | 10/100/1000 Mbps (RJ45), 1000 Mbps (SFP) |
| Switching_Capacity | 48 Gbps |
| Storage_Temperature | -40°C to 70°C |
| Operating_Temperature | 0°C to 45°C |
| Packet_Forwarding_Rate | 35.7 Mpps |
IP Com (G5324-16F) 8 x1 GE, 16 x SFP L3 Cloud Managed Switch
