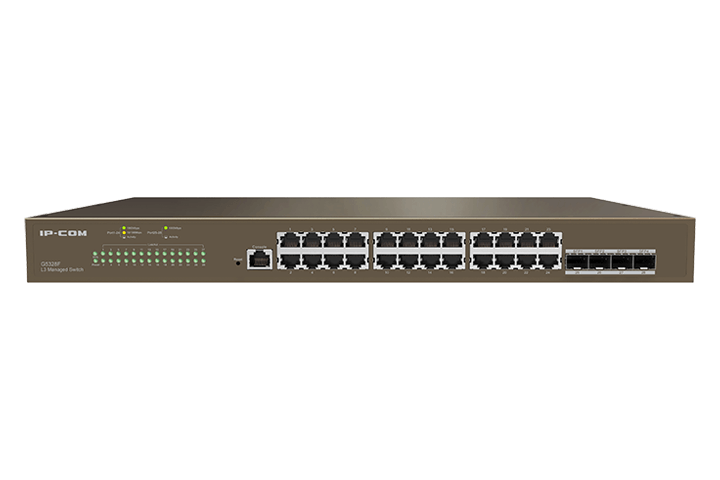

Ip-Com (G5328F) L3 Cloud Managed Switch, 6kV Lightning Protection G5328F
SKU
390393
Brand
MPN
G5328F
Warranty
Standard Manufacturer's Warranty
$390.00
Buy Now And Earn 390 Reward Points!
IP-COM G5328F L3 Cloud Managed Switch
• 24 x 10/100/1000Mbps Ethernet ports, 4 separate 1000 Base-X SFP ports, 1 x Console port
• 6kV lightning protection
• 16 K MAC address table and MAC address auto-learning
• 12Mb large buffer
• Switching capability: 56Gbps
• Supports abundant services, such as static routing based on IPv4, DHCP Server, VLAN, IGMP, QoS, ACL, DHCP Snooping
• Supports App management and visualized local management
• Local Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation
• 24 x 10/100/1000Mbps Ethernet ports, 4 separate 1000 Base-X SFP ports, 1 x Console port
• 6kV lightning protection
• 16 K MAC address table and MAC address auto-learning
• 12Mb large buffer
• Switching capability: 56Gbps
• Supports abundant services, such as static routing based on IPv4, DHCP Server, VLAN, IGMP, QoS, ACL, DHCP Snooping
• Supports App management and visualized local management
• Local Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation
| QoS | Supports SP (Strict Priority), WRR, SWRR; 802.1p and DSCP trust modes; up to 8 hardware queues |
|---|---|
| LEDs | Per-port Link/Act LEDs; Power LED; SYS LED |
| SNMP | Yes |
| Brand | IP-COM |
| Color | Black |
| Layer | Layer 3 |
| Model | G5328F |
| Notes | Some listings reference the same unit under the Tenda brand name; majority of product information and manufacturer sources identify IP-COM as the brand. |
| Ports | 24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 x 1000 Base-X SFP ports (data), 1 x Console port |
| Power | AC: 100-240V~ 50/60Hz |
| Buffer | 12 Mb |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ad IEEE 802.3z IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1d IEEE 802.1s IEEE 802.3af IEEE 802.3at |
| Management | IMS cloud management, app management, local visualized management, SNMP, Telnet |
| Description | The IP-COM G5328F is a Layer-3 managed, 19" 1U rackmount switch designed for medium to large enterprise and campus networks. It provides 24 Gigabit Base-T Ethernet ports plus 4 independent 1000Base-X SFP ports and a console port, delivering high-density access and high-performance aggregation. The switch supports IPv4 static routing, VLAN, QoS, ACL, DHCP server/snooping, IGMP, ARP defense and comprehensive security features. With a 56 Gbps switching capacity, 12 Mb buffer and a 16K MAC address table, the G5328F is optimized for bursty traffic and demanding network environments. Management options include IMS cloud, app-based and local visual management, SNMP and standard management interfaces. |
| Form Factor | 19-inch rackmount, 1U |
| PoE Support | IEEE 802.3af/at (Data/Power on RJ45 ports indicated by listings) |
| Switch Type | Managed Switch |
| VLAN Support | Yes |
| Product Title | IP-COM G5328F 24-Port L3 Managed Gigabit Rackmount Switch (24x RJ45 + 4x SFP, 56 Gbps) |
| Port Mirroring | Supported (VLAN-based/IPv4 static routing/static ARP options referenced) |
| Forwarding Rate | 41.7 Mpps |
| Hardware Version | V1.0 (reported) |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Switching Method | Store-and-Forward |
| MAC Address Table | 16K entries |
| Primary Port Type | RJ45 (24) and SFP (4) |
| Security Features | IP address filtering MAC address filtering ARP filtering / ARP defense DoS attack defense 802.1x authentication RADIUS authentication Unknown MAC address discard |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Primary Port Speed | 10/100/1000 Mbps |
| Supported Services | IPv4 static routing DHCP Server DHCP Snooping VLAN IGMP QoS ACL ARP protection Telnet |
| Switching Capacity | 56 Gbps |
| Storage Temperature | -40°C to 70°C |
| Included Accessories | Switch (console/accessories not detailed in listings) |
| Lightning Protection | Dual 6 kV port and power lightning protection (reported) |
| Operating Temperature | 0°C to 45°C |
| PoE / PSE Protections | PSE short-circuit protection, PoE overload protection, over-temperature and over-voltage protection, surge current protection (reported) |
| Dimensions (L x W x H) | 17.24 in x 7.04 in x 1.73 in (reported) |
| LACP / Link Aggregation | Supports link aggregation (802.3ad) / VLAN-based routing and aggregation features |
| Firmware / Software Version | V65.10.15.9 (reported for G5328F V1.0) |
| Certifications / Compliance Notes | Complies with listed IEEE network standards; PoE af/at support indicated |
IP-COM (G5328F) L3 Cloud Managed Switch, 6kV lightning protection
