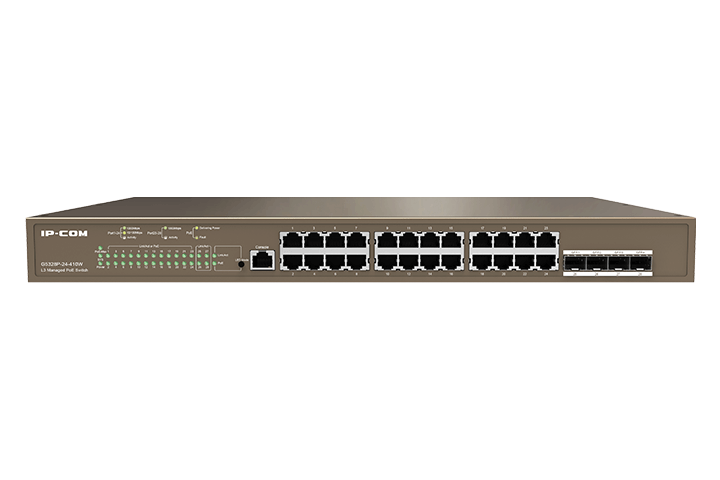

Ip-Com (G5328P-24-410W) 28-port L3 Managed PoE Switch, 6kV Lightning Protection G5328P-24-410W
SKU
382877
Brand
MPN
G5328P-24-410W
Warranty
Standard Manufacturer's Warranty
$766.00
Buy Now And Earn 766 Reward Points!
IP-COM G5328P-24-410W 28-port L3 Managed PoE Switch
• 24 x 10/100/1000Mbps Ports, 4 separate 1000 Base-X SFP ports, 1 x Console port
• Ports 1-24: IEEE 802.3af/at PoE+ ports
• PoE budget: 370w
• 6kV lightning protection
• 16 K MAC address table and MAC address auto-learning
• 12Mb large buffer
• Switching capability: 56Gbps
• Supports abundant services, such as static routing based on IPv4, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
• 24 x 10/100/1000Mbps Ports, 4 separate 1000 Base-X SFP ports, 1 x Console port
• Ports 1-24: IEEE 802.3af/at PoE+ ports
• PoE budget: 370w
• 6kV lightning protection
• 16 K MAC address table and MAC address auto-learning
• 12Mb large buffer
• Switching capability: 56Gbps
• Supports abundant services, such as static routing based on IPv4, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
| QoS | 802.1p, DSCP, port/queue mapping, SP, SWRR, WRR, up to 8 queues |
|---|---|
| SKU | G5328P-24-410W |
| Brand | IP-COM |
| Depth | 285 mm (alternate reported depth) |
| Layer | Layer 3 |
| Model | G5328P-24-410W |
| Notes | Some third-party listings show conflicting entries for PoE budget and vendor name; consolidated values above use the majority / manufacturer documentation where available. Do not infer beyond provided documentation. |
| Ports | 24 x 10/100/1000Base-T (Data + PoE) |
| Routing | IPv4 static routing (L3 interfaces), ARP, static ARP support |
| Category | Networking |
| Warranty | 1 year (reported) |
| Multicast | IGMP Snooping v1/v2/v3; fast leave; port mirroring N:1 |
| PoE Ports | Ports 1-24 |
| SFP Slots | 4 x 1000Base-X SFP |
| Description | IP-COM G5328P-24-410W is a 1U rackmount Layer-3 managed PoE switch designed for enterprise and campus aggregation/access. It provides 24 Gigabit RJ45 ports with IEEE 802.3af/at PoE (ports 1–24) and 4 separate 1000Base-X SFP uplink ports, delivering a total PoE budget of 370 W and up to 30 W per PoE port. The switch offers L3 static routing, VLANs, IGMP, QoS (SP/WRED/WRR/SWRR), ACLs, DHCP Snooping, ARP controls and advanced security features. Management options include web GUI, console, Telnet, SNMP v1/v2c/v3, FTP/TFTP firmware upgrades, visual local management and cloud management (IP-COM ProFi). Built-in protections include dual 6 kV lightning protection on ports/power, PoE overload/short-circuit/over-temperature/overvoltage protection and surge current protection. Typical use cases are high-density user access, Wi‑Fi deployments and IP video surveillance. |
| Form Factor | 1U Rackmount |
| Port Speeds | 10/100/1000 Mbps |
| Console Port | 1 x RJ45 (RS232 adapter supplied) |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Sub-Category | Switches and Hubs |
| VLAN Support | IEEE 802.1Q VLANs; supports VLAN-based routing and L3 interfaces; Access/Trunk/Hybrid port modes |
| Buffer Memory | 12 Mbit |
| Power (input) | AC 100-240V, 50/60Hz |
| Product Title | IP-COM G5328P-24-410W 24-Port L3 Managed PoE Switch (24x GbE PoE + 4x SFP, 370W PoE) |
| Spanning Tree | STP (802.1d), RSTP (802.1w), MSTP (802.1s) |
| Certifications | CCC, FCC, CE, RoHS (reported) |
| Fans / Cooling | Two fans (constant rotation) — airflow left to right (front view) (reported) |
| LED Indicators | Per-port Link/Act or PoE LED; device Power, SYS, PoE mode, PoE Max and mode indicators |
| Forwarding Mode | Store-and-forward |
| Cloud Management | IP-COM ProFi cloud (project/location presets, single-pane monitoring, remote access to web UI, backup config) |
| Package Contents | Switch; power cord; L-shaped brackets x2; KM3*8 mm screws x8; footpads x4; quick installation guide; console cable (included for this model) |
| Storage Humidity | 5% - 90% RH, non-condensing |
| Console Baud Rate | 115200 |
| MAC Address Table | 16K entries |
| Security Features | IP/MAC/ARP filtering, MAC ACL, IP ACL, DoS defense, 802.1x support, unknown MAC discard, ARP receive limits |
| Monitoring & Tools | Syslog, ping, traceroute, local device/map visualization, port status and power status monitoring |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Management Interfaces | Web GUI, Console, Telnet, SNMP v1/v2c/v3, FTP/TFTP, CLI via console, HTTP |
| Max PoE Power (total) | 370 W |
| Operating Temperature | 0°C to 45°C |
| Dimensions (W x D x H) | 440 mm x 284 mm x 44 mm (≈17.32" x 11.18" x 1.73") |
| Packet Forwarding Rate | 41.7 Mpps |
| Link Aggregation / LACP | LACP supported; up to 8 ports per trunk; supports mixing RJ45 and SFP in trunks |
| PoE Management Features | Per-port scheduling, priority-based dynamic power distribution, per-port PoE status and power assignment, over-temperature/overload/short-circuit protection |
| Default IP / Credentials | Default IP: 10.16.16.168; Default username/password: admin / admin |
| Max PoE Power (per port) | 30 W |
| Lightning & Surge Protection | Dual 6 kV port and power lightning protection (≥6 kV reported); common-mode/differential surge protection values reported in documentation |
| Switching Capacity / Backplane | 56 Gbps |
| Power Consumption (maximum/whole switch) | < 410 W (reported) |
IP-COM (G5328P-24-410W) 28-port L3 Managed PoE Switch, 6kV lightning protection
