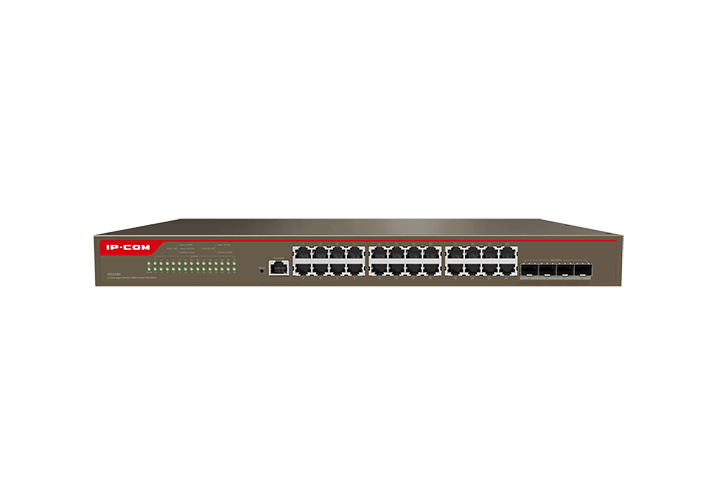

Ip-Com (G5328X) 28-port L3 10G Cloud Managed Switch, 6kV Lightning Protection G5328X
SKU
390395
Brand
MPN
G5328X
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$556.00
Buy Now And Earn 556 Reward Points!
IP-COM G5328X 28-port L3 10G Cloud Managed Switch
• 24 x 10/100/1000Mbps Ethernet ports, 4 x Independent 10G SFP+ ports, 1 x Console port
• 6kV lightning protection
• 12Mb large buffer
• Switching capability: 128Gbps
• Layer-3 management features, such as IPv4/IPv6 static routing protocol, dynamic routing protocols (RIP, OSPF) and DHCP server
• Layer-2 service features, such as VLAN, IPv4/IPv6 ACL, QoS, IGMP, SNMP and Telnet
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
• 24 x 10/100/1000Mbps Ethernet ports, 4 x Independent 10G SFP+ ports, 1 x Console port
• 6kV lightning protection
• 12Mb large buffer
• Switching capability: 128Gbps
• Layer-3 management features, such as IPv4/IPv6 static routing protocol, dynamic routing protocols (RIP, OSPF) and DHCP server
• Layer-2 service features, such as VLAN, IPv4/IPv6 ACL, QoS, IGMP, SNMP and Telnet
• Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
| PoE | No |
|---|---|
| QoS | Other: Port trust modes (802.1p, DSCP), tail drop support Queues: Up to 8 queues Standards: [ "802.1p", "DSCP" ] Scheduling: [ "SP (Strict Priority)", "WRR (Weighted Round Robin)", "SWRR (Simple WRR)" ] |
| SKU | G5328X |
| Brand | IP-COM |
| Model | G5328X |
| Notes | Non-blocking architecture with switching matrix equal to twice aggregate port bandwidth (reported) Supports a variety of maintenance and management features suitable for SMB and hotel aggregation/core deployments |
| Power | 100-240V~ 50/60Hz |
| Weight | ≈5000 g |
| Cooling | Passive cooling |
| Warranty | Labor: 1 year (reported) Parts: 1 year (reported) |
| Condition | New |
| Multicast | IGMP snooping |
| Dimensions | Metric: 440 x 179.6 x 44 mm Imperial: ≈17.3" x 7.07" x 1.73" |
| Description | The IP-COM G5328X is a Layer-3, cloud-manageable rackmount switch designed for high-density access and high-performance aggregation. It provides 24 x 10/100/1000Base-T RJ45 ports, 4 independent 10G SFP+ uplink ports and a console port. Built on a non-blocking architecture with 128 Gbps switching capacity and a large 12 MB buffer, the G5328X supports IPv4/IPv6 static and dynamic routing (RIP, OSPF), DHCP server, robust Layer-2 services (VLANs, IEEE 802.1Q, ACLs, IGMP snooping), advanced QoS, LACP link aggregation, port mirroring and comprehensive management via IMS/EMS cloud and local visualization (SNMP, Telnet). The unit is a 1U half-depth rackmount chassis with passive cooling and basic electrical/lightning protection, suitable for SMBs, hotels and aggregation/core deployments. |
| Port Speeds | RJ45: 10/100/1000 Mbps SFP+: 10 Gbps |
| MAC Features | MAC auto-learning; MAC address per-port settable |
| Ports Detail | RJ45: 24 x 10/100/1000Base-T SFP+: 4 x 10G SFP+ (independent) Console: 1 x Console port |
| Product Type | Layer-3 Managed Switch |
| VLAN Support | Modes: [ "Access", "Trunk", "Hybrid" ] Notes: Supports assigning multiple VLAN tags (up to 100 VLAN tags per port in trunk mode reported) Standard: IEEE 802.1Q |
| Buffer Memory | 12 MB |
| Layer Support | Layer 2 & Layer 3 |
| Product Title | IP-COM G5328X L3 24-Port Gigabit Managed Switch with 4 x 10G SFP+ (Cloud Managed) |
| Spanning Tree | STP RSTP (IEEE 802.1w) MST (IEEE 802.1s) |
| LED Indicators | Link/Act LED per port; Power LED; SYS LED |
| Port Mirroring | Supports N:1 port mirroring |
| NDAA Compliance | No |
| Number of Ports | 24 x RJ45, 4 x SFP+ |
| ACL and Security | IPv4/IPv6 ACL MAC filtering Basic DoS protections (ICMP Flood, SYN Flood) reported Storm suppression Port speed limit |
| Material / Color | Bronze-colored steel (reported) |
| Storage Humidity | 5% - 90% RH, non-condensing |
| Switching Method | Store-and-forward (non-blocking architecture) |
| MAC Address Table | 16 K entries |
| Routing Protocols | IPv4/IPv6 static routing RIP (RIPv1/v2) OSPF |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Switching Capacity | 128 Gbps |
| Management Features | Cloud management (IMS/EMS) Local GUI/visualization Topology visualization (auto-compiled) reported Per-port statistics |
| Storage Temperature | -40°C to 70°C |
| Standards Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ae IEEE 802.3ad IEEE 802.3z IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1d IEEE 802.1s |
| Chassis / Form Factor | 1U half-depth rackmount |
| Operating Temperature | 0°C to 45°C |
| Other Network Services | DHCP server Inter-VLAN routing Dynamic ARP and static ARP |
| Packet Forwarding Rate | 95.2 Mpps |
| LACP / Link Aggregation | LACP (dynamic): Supported Static Aggregation: Supported Max Members per Group: Up to 8 ports Max Aggregation Groups: Up to 32 groups |
| SNMP / Management Protocols | SNMP Telnet Console IMS/EMS cloud management Local visualization management |
| Electrical / Lightning Protection | Electrical protection reported; maximum breakdown voltage up to 6 kV for network ports and power input (reported) |
IP-COM (G5328X) 28-port L3 10G Cloud Managed Switch, 6kV lightning protection
